Kentec E01080L2 Sigma CP-R 8 Zone Repeater Panel (24V Supply)

The Kentec E01080L2 Sigma CP-R is an 8-zone repeater panel designed for use with compatible Sigma CP conventional fire alarm control panels running software version V2.0 or later. It provides a secondary point of control and indication, allowing system information to be viewed and key panel functions to be operated from another location within the building.

This model is powered from a 24V DC supply and connects to the main panel using a two-wire serial data connection. An additional two cores are required to provide power from the main control panel or another suitable 24V DC source.

Up to seven Sigma CP-R repeater panels can be connected to a compatible control panel, with each repeater assigned an address from 1 to 7 using a binary-coded DIL switch. The total data cable length from the main panel to the final repeater can extend up to 1,200 metres, making the system suitable for larger sites where additional control and indication points are required.

The repeater provides full control over the main panel and includes volt-free fire and fault contact outputs. Its 8-zone layout gives clear local indication of system conditions across all connected zones.

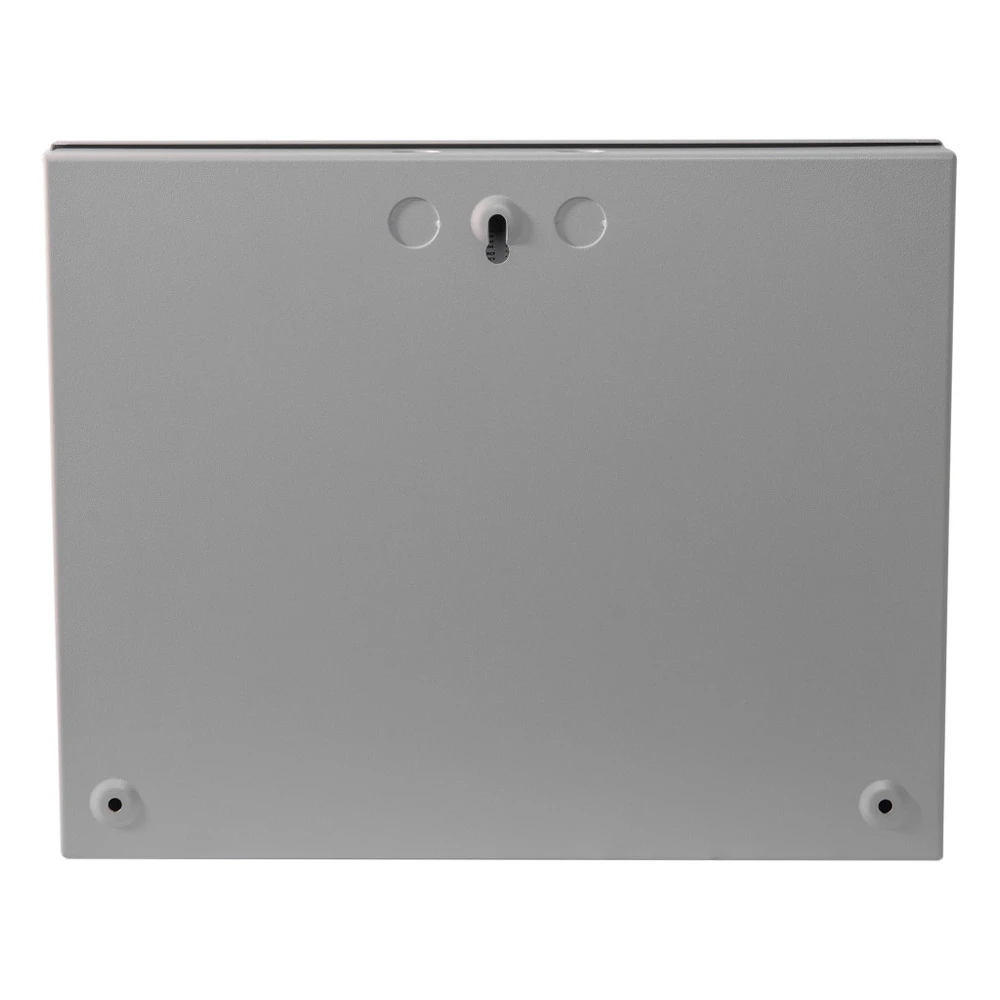

Housed in an IP30-rated mild steel enclosure with an epoxy powder-coated finish, the E01080L2 is designed for indoor fire alarm installations. The panel measures 385 x 310 x 60mm and has a standby current of 0.075A and an alarm current of 0.11A.

Please note: This item is available to order only. Contact us to confirm the current lead time before placing your order.

• 8-zone repeater panel for compatible Sigma CP systems

• Requires Sigma CP software version V2.0 or later

• Powered from a 24V DC supply

• Provides full control over the main panel

• Two-wire RS485 serial data connection

• Supports up to seven repeaters per system

• Maximum total data cable length of 1,200 metres

• Volt-free fire and fault contact outputs

• IP30-rated steel enclosure

• Suitable for indoor conventional fire alarm installations
