Code: FDS361/011
INC VAT
Code: FDS361/011

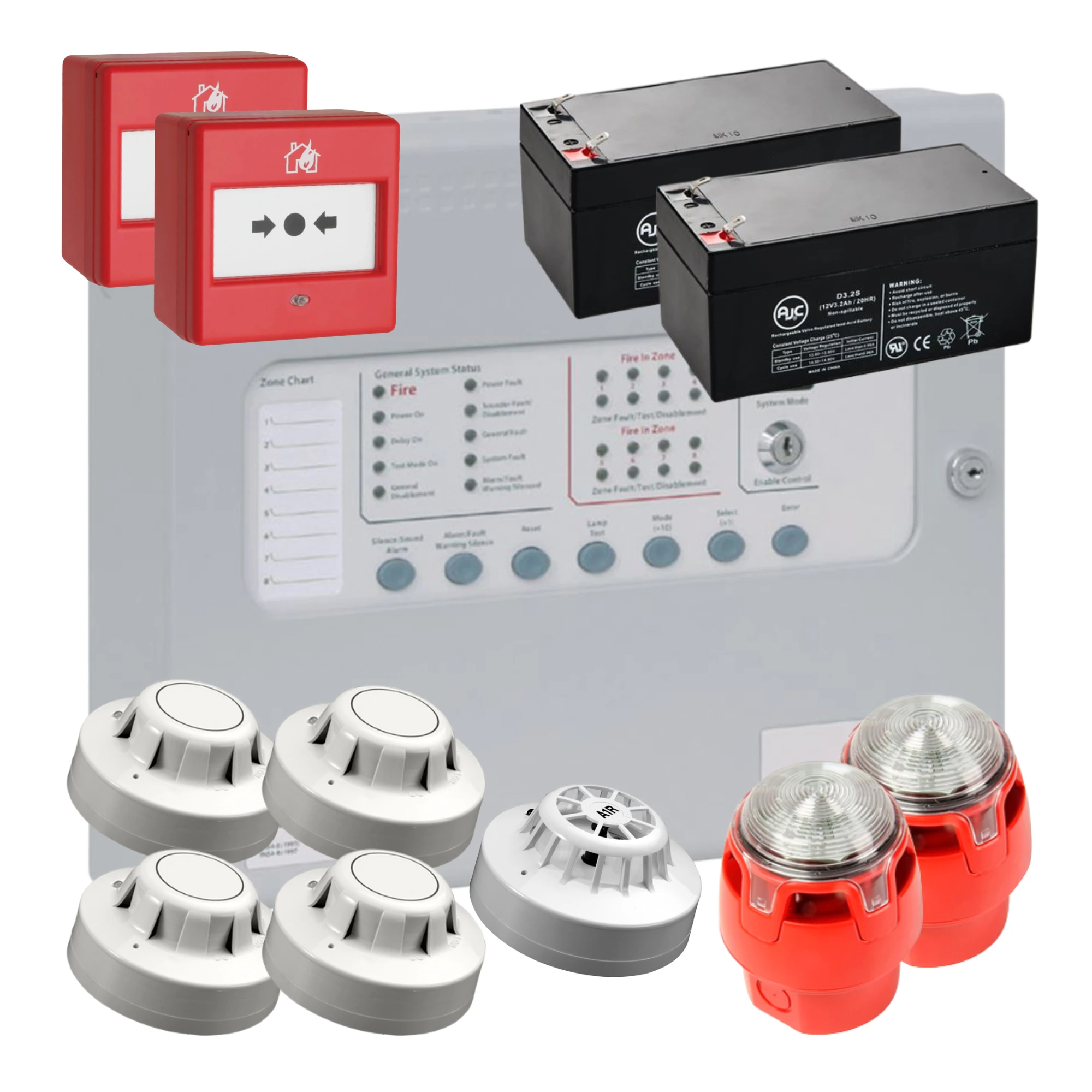

The Kentec 4 Zone Conventional Fire Alarm Kit with sounder beacons provides a complete fire detection and alarm solution for small to medium-sized buildings requiring reliable multi-zone coverage and both audible and visual alarm notification.
Kit Contents

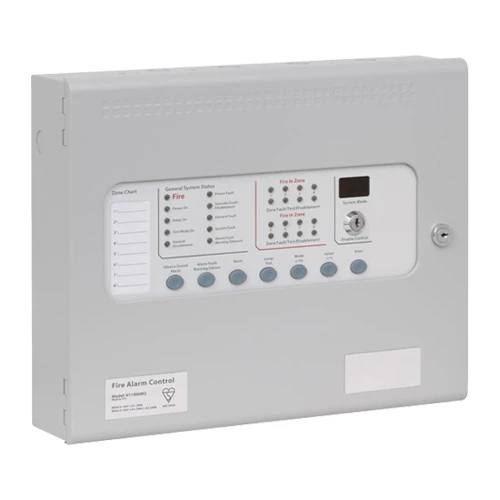

1 × Kentec Sigma KL11040M2 4 Zone Conventional Fire Alarm Control Panel
1 × Apollo 55000-122APO Series 65 A1R Heat Detector
4 × Apollo 55000-317APO Series 65 Optical Smoke Detectors

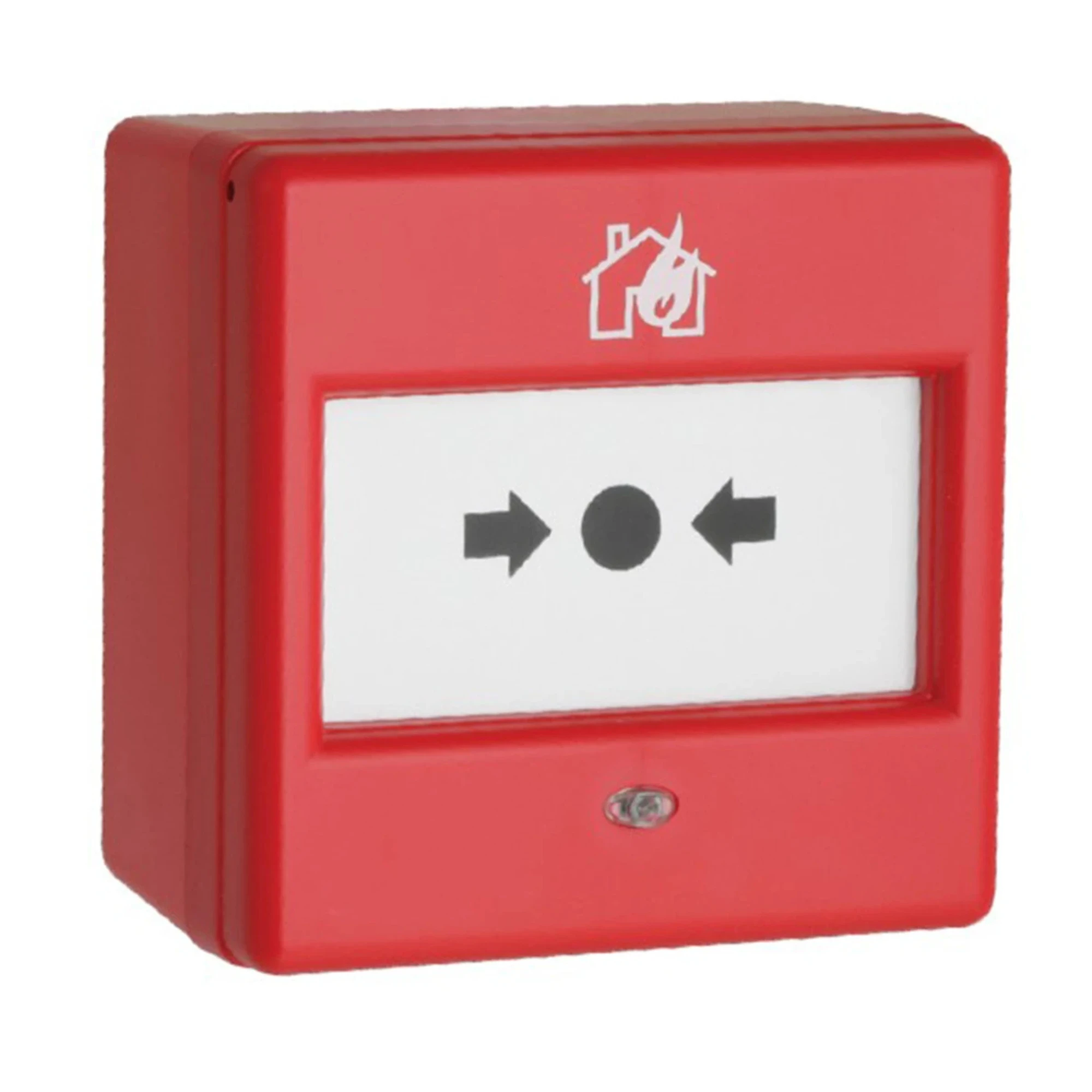

2 × FireSmart Universal Surface Conventional Manual Call Points

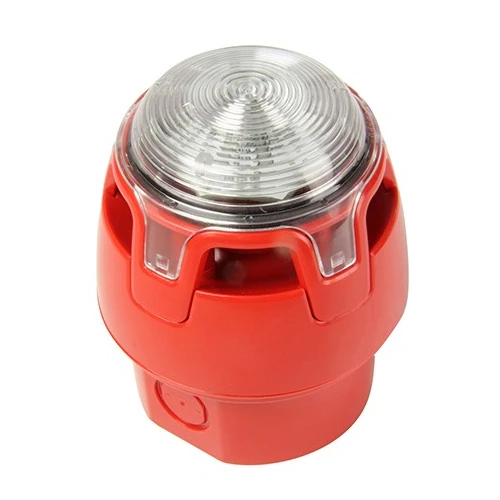

2 × FireSmart Sounder VAD Units
2 × 12V 3.2Ah Backup Batteries
This kit combines the Kentec Sigma KL11040M2 4 Zone conventional fire alarm control panel with Apollo Series 65 detection devices and FireSmart notification equipment, supplying the essential components required to install a dependable conventional fire alarm system.
Designed as a traditional 4-wire conventional system, the kit separates detection and alarm circuits while delivering effective fire detection and clear alarm signalling throughout the building.
Apollo Series 65 detectors provide proven optical smoke and heat detection, while FireSmart sounder beacons deliver combined audible and visual alerts to ensure occupants are clearly notified in the event of a fire.
Suitable for offices, retail units, warehouses and commercial premises requiring multiple fire zones, this kit offers a practical and straightforward fire alarm installation in one convenient package.
Complete 4 zone conventional fire alarm kit with sounder beacons
Suitable for small to medium commercial premises
Kentec Sigma conventional control panel with robust metal enclosure
Apollo Series 65 detectors provide trusted smoke and heat detection
FireSmart sounder beacons deliver combined audible and visual alarms
Conventional 4-wire system design for dependable operation
Manual call points included for manual alarm activation
Ideal for offices, retail premises, warehouses and commercial buildings
Supplied with backup batteries for standby power protection
Provides a straightforward and cost-effective fire alarm installation
Specification | Details |
|---|---|
Construction | 1.2mm mild sheet steel |
IP Rating | IP30 |
Finish | Epoxy powder coated |
Colour (lid & box) | BS 00 A 05 grey - fine texture |
Colour (control panel & labels) | RAL 7047 light grey - satin |
Weight | 6kg |
Supply Voltage | 230V AC (+10%/-15%) |
Mains Supply Fuse | 1.6 Amp 250V |
Power Supply DC Rating | 24V 3 Amps |
Maximum Battery Size | 7Ah 12V (2 per panel) |
Fault Contract Rating | 30V DC 1 Amp |
Local Fire Contract Rating | 30V DC 1 Amp |
Fire Contract Rating | 30V DC 1 Amp |
Sounder Output Rating | 0.5A per output (max 1.6A overall) |
Detection Zone Current | 1.6 milliamps |
Detection Zone EOL Resistor | 6k8 5% |
Active EOL | K14606K (optional) |
Sounder Output EOL Resistor | 10k 5% |
Cable Capacity | 2.5mm² per terminal |
Operating Temperature | -5°C to +40°C |
Operating Humidity | <95% (non-condensing) |
The Kentec 4 Zone Conventional Fire Alarm Kit with sounder beacons provides a complete fire detection and alarm solution for small to medium-sized buildings requiring reliable multi-zone coverage and both audible and visual alarm notification.
Kit Contents
1 × Kentec Sigma KL11040M2 4 Zone Conventional Fire Alarm Control Panel
1 × Apollo 55000-122APO Series 65 A1R Heat Detector
4 × Apollo 55000-317APO Series 65 Optical Smoke Detectors
2 × FireSmart Universal Surface Conventional Manual Call Points
2 × FireSmart Sounder VAD Units
2 × 12V 3.2Ah Backup Batteries
This kit combines the Kentec Sigma KL11040M2 4 Zone conventional fire alarm control panel with Apollo Series 65 detection devices and FireSmart notification equipment, supplying the essential components required to install a dependable conventional fire alarm system.
Designed as a traditional 4-wire conventional system, the kit separates detection and alarm circuits while delivering effective fire detection and clear alarm signalling throughout the building.
Apollo Series 65 detectors provide proven optical smoke and heat detection, while FireSmart sounder beacons deliver combined audible and visual alerts to ensure occupants are clearly notified in the event of a fire.
Suitable for offices, retail units, warehouses and commercial premises requiring multiple fire zones, this kit offers a practical and straightforward fire alarm installation in one convenient package.
Complete 4 zone conventional fire alarm kit with sounder beacons
Suitable for small to medium commercial premises
Kentec Sigma conventional control panel with robust metal enclosure
Apollo Series 65 detectors provide trusted smoke and heat detection
FireSmart sounder beacons deliver combined audible and visual alarms
Conventional 4-wire system design for dependable operation
Manual call points included for manual alarm activation
Ideal for offices, retail premises, warehouses and commercial buildings
Supplied with backup batteries for standby power protection
Provides a straightforward and cost-effective fire alarm installation
Specification | Details |
|---|---|
Construction | 1.2mm mild sheet steel |
IP Rating | IP30 |
Finish | Epoxy powder coated |
Colour (lid & box) | BS 00 A 05 grey - fine texture |
Colour (control panel & labels) | RAL 7047 light grey - satin |
Weight | 6kg |
Supply Voltage | 230V AC (+10%/-15%) |
Mains Supply Fuse | 1.6 Amp 250V |
Power Supply DC Rating | 24V 3 Amps |
Maximum Battery Size | 7Ah 12V (2 per panel) |
Fault Contract Rating | 30V DC 1 Amp |
Local Fire Contract Rating | 30V DC 1 Amp |
Fire Contract Rating | 30V DC 1 Amp |
Sounder Output Rating | 0.5A per output (max 1.6A overall) |
Detection Zone Current | 1.6 milliamps |
Detection Zone EOL Resistor | 6k8 5% |
Active EOL | K14606K (optional) |
Sounder Output EOL Resistor | 10k 5% |
Cable Capacity | 2.5mm² per terminal |
Operating Temperature | -5°C to +40°C |
Operating Humidity | <95% (non-condensing) |
