Hochiki CHQ-WS2(WHT) White Wall Sounder

Name: Hochiki CHQ-WS2(WHT) White Wall Sounder
Brand: Hochiki
Availability: InStock

Code: FDS002/240

Call to place order

INC VAT

Code: FDS002/240

In stock
Typically dispatched in 1-3 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

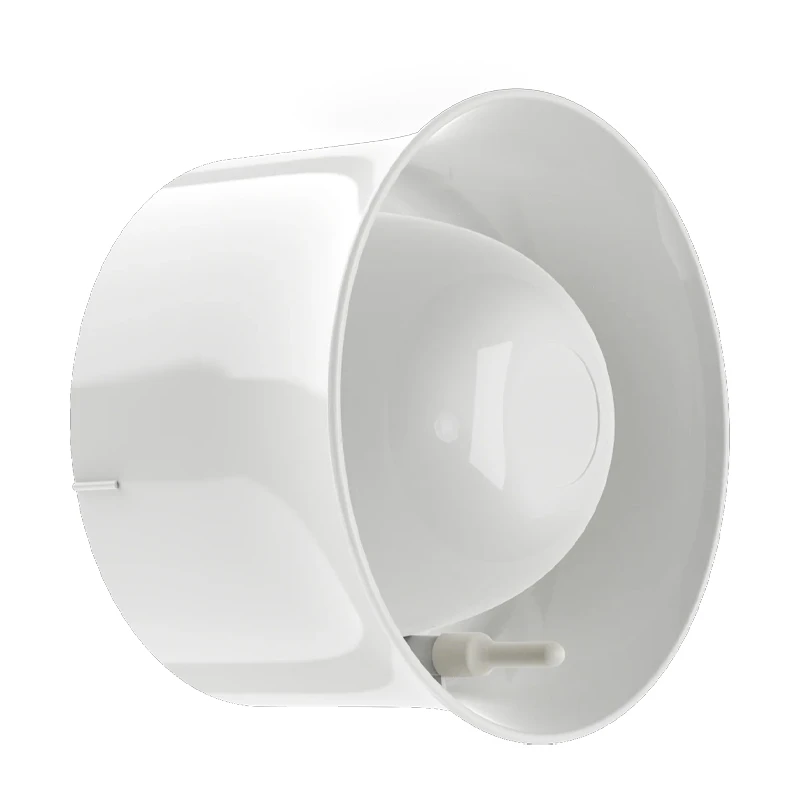

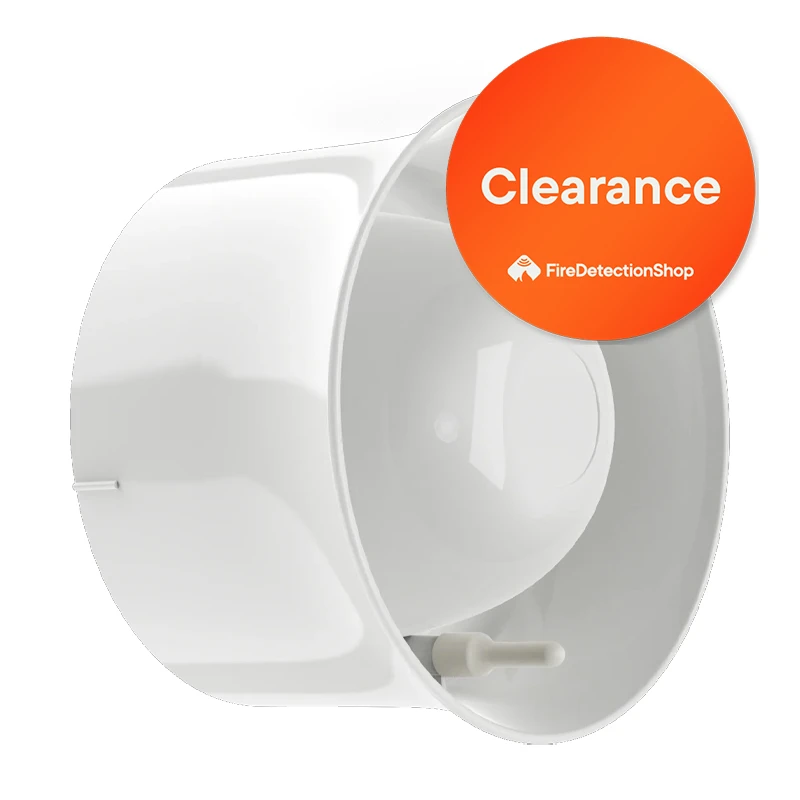

The Hochiki CHQ-WS2(WHT) is an addressable, loop-powered wall sounder designed for reliable audible warning in fire alarm systems.

Delivering a variable sound output from 90 to 102 dB(A) at 1 metre, it provides high performance with low current consumption.

This unit can be mounted to either the Hochiki Standard Base (YBO-R/3(WHT)) or Isolator Base (YBO-R/SCI(WHT/SNDR)) for flexible installation.

Rated IP21 for indoor use, it can also be upgraded for outdoor environments using the optional WS2-WPK(WHT) Weatherproof Kit, which includes a back box and gasket set.

An auto-shutdown feature allows a fixed operation time before the sounder automatically silences, helping to reduce unnecessary noise.

With 51 user-selectable tones, all EN54-3 compliant, this sounder offers adaptability across multiple applications.

Loop-powered addressable sounder
Programmable via TCH-B100 Hand Held Programmer
Adjustable sound output: 90–102 dB(A) ±2 dB at 1 m
Compatible with Hochiki Standard & Isolator Bases
Optional weatherproof kit for outdoor use
51 EN54-3 compatible tones
Auto shutdown for reduced noise pollution
LPCB & VdS approved

Specification	Details
Ordering Codes	CHQ-WS2 / CHQ-WS2(WHT) WS2-WPK (Weatherproof Kit)
Operating Voltage	17 – 41 VDC
Quiescent Current (typ)	150 μA (with YBO-R/3(RED)) 200 μA (with YBO-R/SCI(RED))
Sounding Current (typ)	2 mA (90 dB(A) ±2 dB(A) @ 1 m) 8 mA (102 dB(A) ±2 dB(A) @ 1 m)
Sound Output (at 1 metre)	90 – 102 dB(A) (±2 dB(A)) @ 24 VDC or above
Number of Tones	51
Tone Frequency Range	300 Hz – 2850 Hz
Operating Temperature Range	-10 °C to +50 °C
Storage Temperature Range	-30 °C to +70 °C
Maximum Humidity	95% RH – Non Condensing (at 40 °C)
Colour/Case Material	Red or White / PC ABS
Ingress Protection Rating	IP21 (IP65 with WS2-WPK)
Weight / Dimensions (mm)	152 g / H112 x W112 x D67
Base Fixing Centres (mm)	48 – 74

Hochiki CHQ-WS2 Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Ordering Codes	CHQ-WS2 / CHQ-WS2(WHT) WS2-WPK (Weatherproof Kit)
Operating Voltage	17 – 41 VDC
Quiescent Current (typ)	150 μA (with YBO-R/3(RED)) 200 μA (with YBO-R/SCI(RED))
Sounding Current (typ)	2 mA (90 dB(A) ±2 dB(A) @ 1 m) 8 mA (102 dB(A) ±2 dB(A) @ 1 m)
Sound Output (at 1 metre)	90 – 102 dB(A) (±2 dB(A)) @ 24 VDC or above
Number of Tones	51
Tone Frequency Range	300 Hz – 2850 Hz
Operating Temperature Range	-10 °C to +50 °C
Storage Temperature Range	-30 °C to +70 °C
Maximum Humidity	95% RH – Non Condensing (at 40 °C)
Colour/Case Material	Red or White / PC ABS
Ingress Protection Rating	IP21 (IP65 with WS2-WPK)
Weight / Dimensions (mm)	152 g / H112 x W112 x D67
Base Fixing Centres (mm)	48 – 74

Downloads & Resources

Related Products

Shop by Brand

We have every brand you work with so you can get everything you need in one place.

Manufacturer's Training

Book your manufacturer training with Fire Detection Shop today

Products From Fire Detection Shop

If you’re looking for high quality fire detection, security of fire safety equipment, we are your one-stop-shop for everything you need to get your job done.

Fire Detection Shop has a wide range of products, kits and accessories in stock and ready to ship - so you can place your order now with confidence.

To help you choose the right product, our technical team are on the end of the telephone to answer your questions. Alternatively, you can complete the form here and one of our specialists will call you back.

We have a team of in-house engineers trained to design, install and commission the products we sell. If you’re interested in the services we can provide you with a quotation.

Hochiki CHQ-WS2(WHT) White Wall Sounder

Call to place order

DetectaGas DG1 | Carbon Monoxide Fire Alarm Detector Test Gas

DetectaSmoke DSF1 | Smoke Detector Test Gas | 250ml

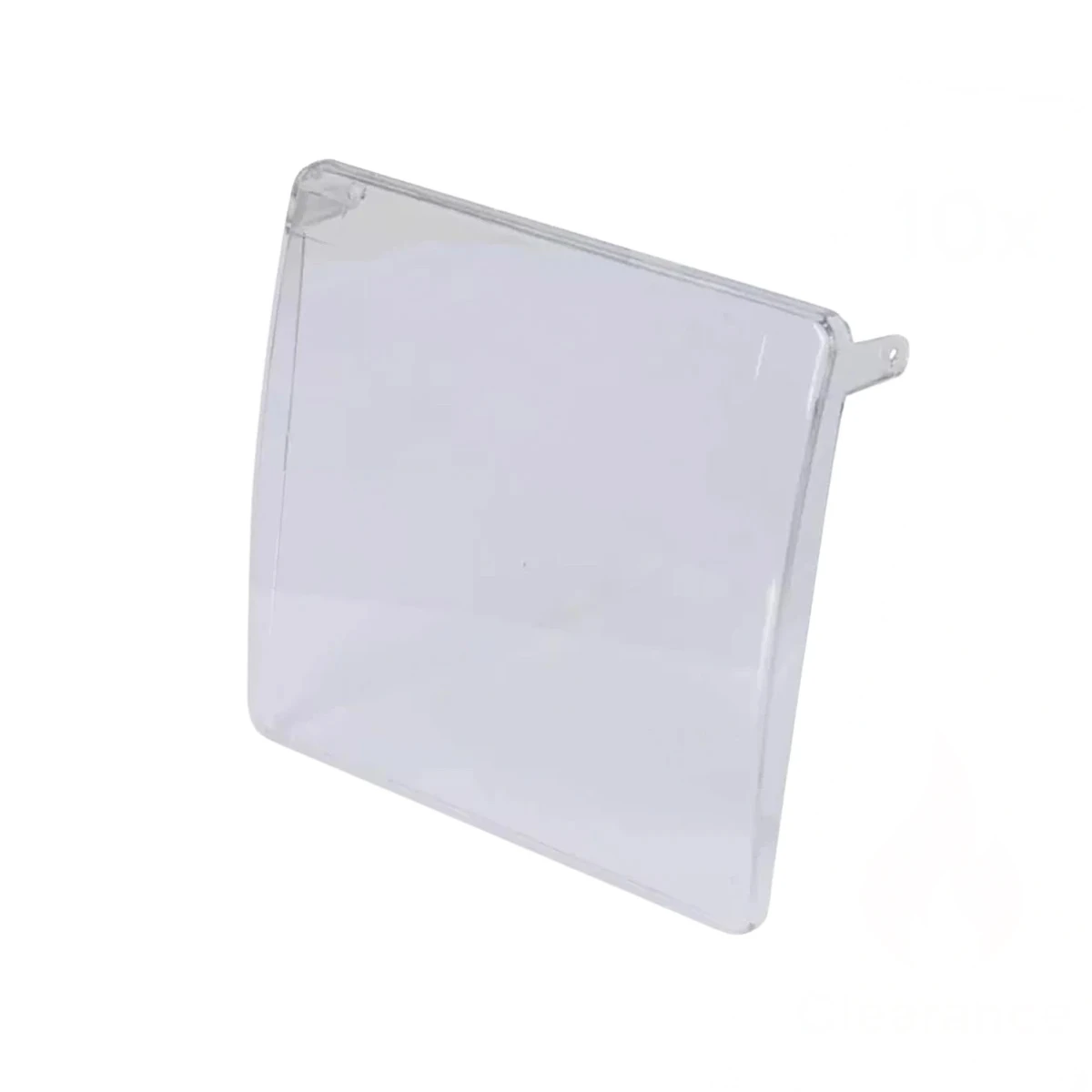

Vimpex Sycall Hinged Protective Call Point Cover (Pack of 10)
