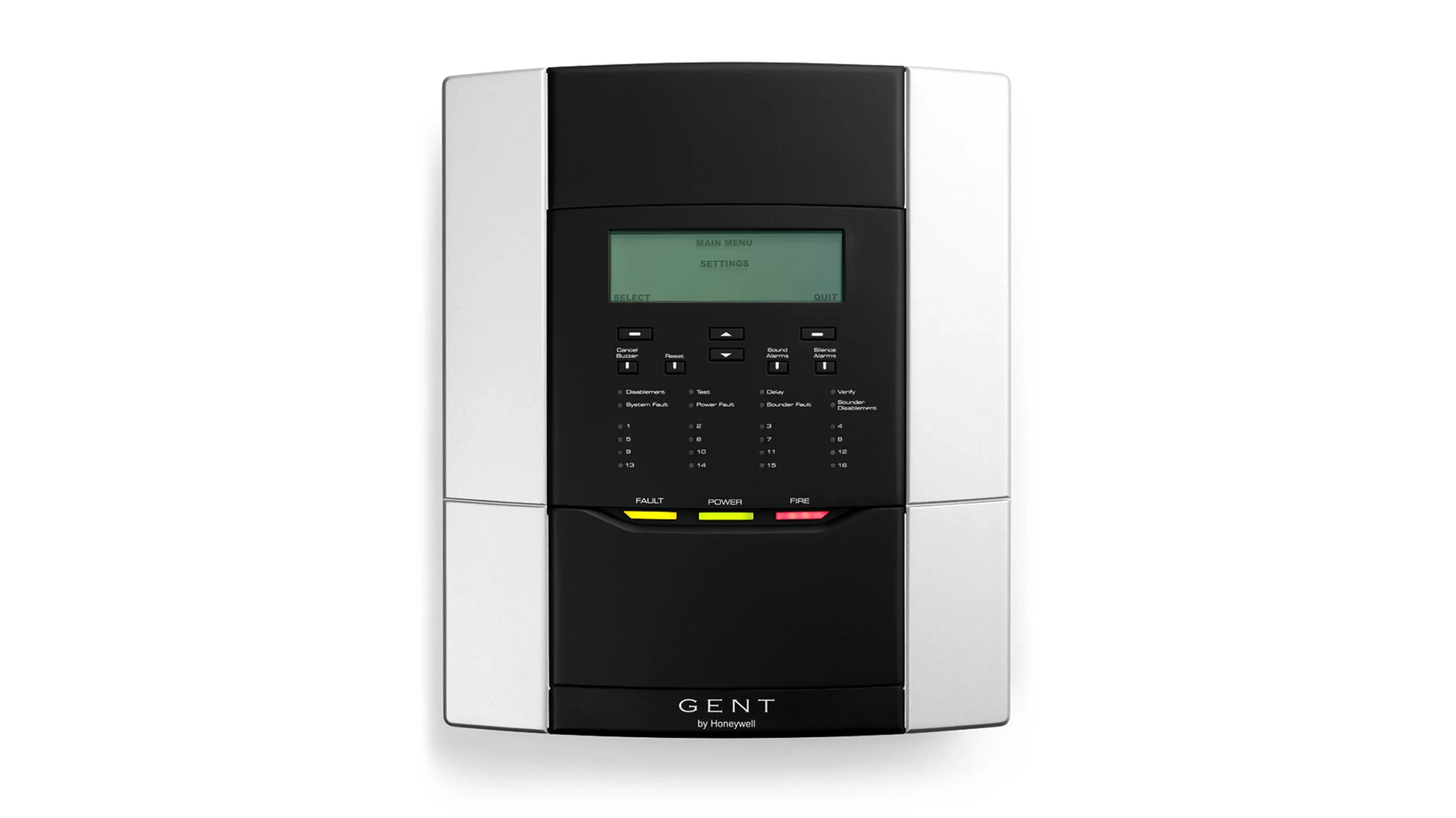

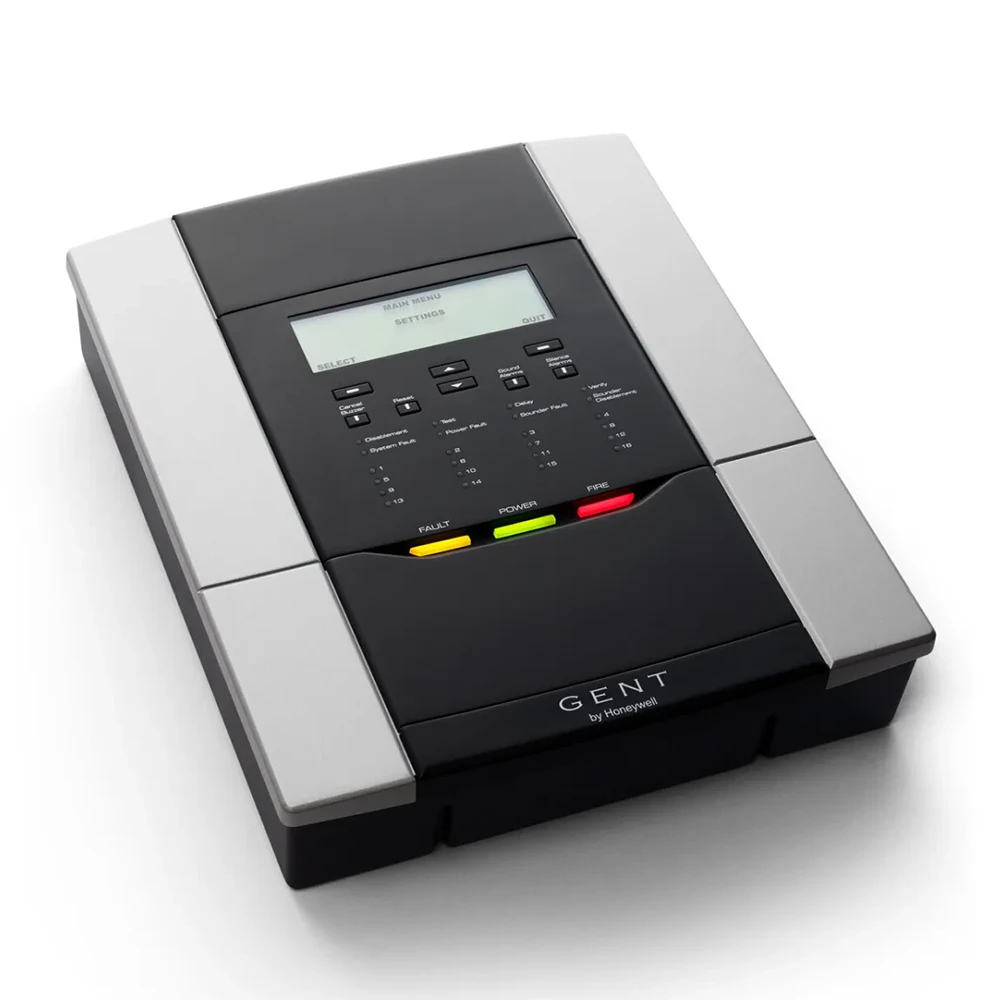

Gent Nano 24 Single Loop Addressable Control Panel

The Gent Nano 24 Single Loop Addressable Control Panel is a compact and powerful fire alarm control system designed for small to medium-sized buildings that require reliable addressable fire detection and evacuation capability.

Utilising Gent’s proven Vigilon loop technology, the Nano 24 supports up to 127 devices on a single loop, allowing a wide range of detectors, call points, sounders and interfaces to be connected within one system. Its compact design and simplified installation make it ideal for offices, schools, retail environments and other smaller commercial premises.

The panel supports Gent’s S-Quad multi-sensor range, enabling smoke, heat, sounder and visual alarm functionality to be combined within a single device. This can significantly reduce installation time and cabling requirements while maintaining full compliance with EN54 standards.

Designed with installers in mind, the Nano 24 offers simple commissioning and flexible configuration, along with support for a wide range of loop interfaces and input/output modules. The system also supports Gent’s S-Cubed audio visual alarm devices, allowing synchronised sounder and VAD operation across the loop.

Certified to EN54 Parts 2 and 4, the Gent Nano 24 provides a dependable and scalable fire detection solution for modern building environments.

• Single loop addressable fire alarm control panel

• Supports up to 127 loop devices

• Utilises Gent Vigilon loop technology

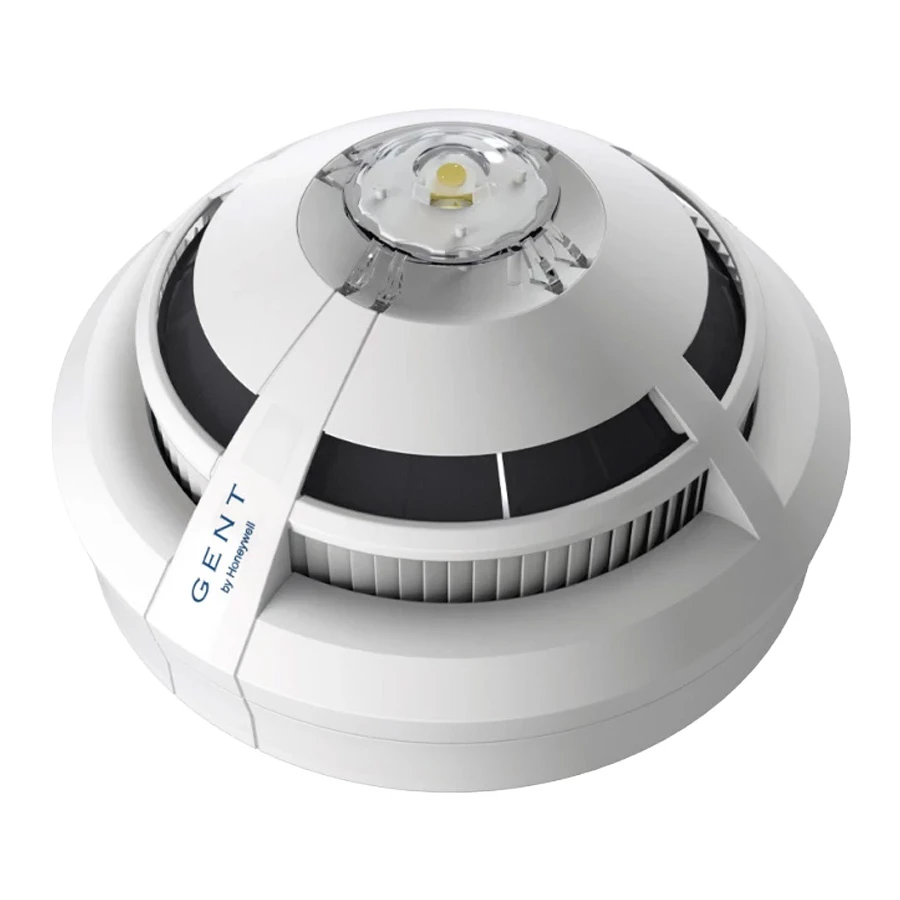

• Compatible with Gent S-Quad multi-sensor detection range

• Supports S-Cubed audio visual alarm devices (sounders and VADs)

• Two conventional programmable sounder circuits

• Fire and fault relay outputs on board

• Supports a wide range of loop interfaces and input/output modules

• Compact control panel ideal for smaller installations

• Simplified installation with reduced cabling requirements when using S-Quad devices

• Suitable for offices, schools, retail premises and commercial buildings

• Certified to EN54 Parts 2 and 4

• Designed for reliable addressable fire detection and alarm management
