Code: FDS372/273
INC VAT
Code: FDS372/273

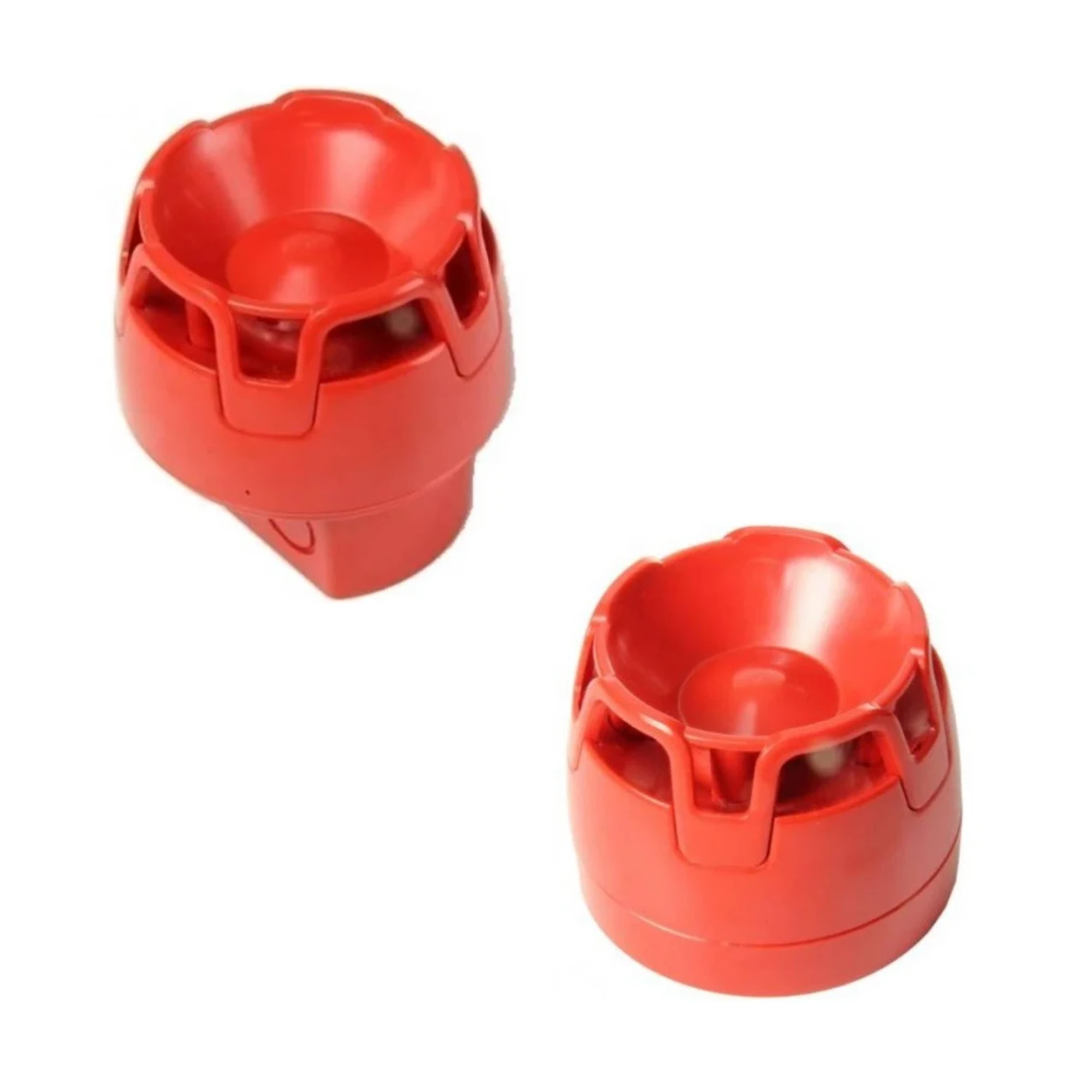

The Gent conventional sounder is ergonomically designed to provide a stylish product that complies with all relevant regulations.
Providing outstanding sound output and low current draw. Specifically designed and approved to meet EN54-3 this conventional sounder delivers outstanding quality, reliability and extended operational life.
Conventional sounder
Low current draw
107 dB maximum sound output
Category | Specification |
---|---|
ELECTRICAL | |
Operating Voltage | 9 to 29VDC (Approved to EN54-3 @ 9-14V and 18-29V) |
Average Current Consumption | 31mA @ 29VDC (Tone 8) |
Maximum Sound Output | 107dB (A) @ 1m (Tone 23) |
ENVIRONMENTAL | |
Operating Temperature | -25°C to 70°C |
Relative Humidity | 93% ±3% non condensing |
Ingress Protection | IP21C – low profile base / IP65 – deep base |
MECHANICAL | |
Body Colour | Red / White |
Number of Tones | 32 (includes a bell tone — full tone table available on website & manual) |
Volume Setting | High or medium |
Cable Termination Size | 0.5 - 2.5mm² |
Material | Flame retardant PC/ABS |
Gross Weight – Standard device (low profile) | 190g |
Gross Weight – Standard device (deep / IP65) | 197g |
Gross Weight – First Fix option (low profile) | 200g |
Gross Weight – First Fix option (deep / IP65) | 207g |
The Gent conventional sounder is ergonomically designed to provide a stylish product that complies with all relevant regulations.
Providing outstanding sound output and low current draw. Specifically designed and approved to meet EN54-3 this conventional sounder delivers outstanding quality, reliability and extended operational life.
Conventional sounder
Low current draw
107 dB maximum sound output
Category | Specification |
---|---|
ELECTRICAL | |
Operating Voltage | 9 to 29VDC (Approved to EN54-3 @ 9-14V and 18-29V) |
Average Current Consumption | 31mA @ 29VDC (Tone 8) |
Maximum Sound Output | 107dB (A) @ 1m (Tone 23) |
ENVIRONMENTAL | |
Operating Temperature | -25°C to 70°C |
Relative Humidity | 93% ±3% non condensing |
Ingress Protection | IP21C – low profile base / IP65 – deep base |
MECHANICAL | |
Body Colour | Red / White |
Number of Tones | 32 (includes a bell tone — full tone table available on website & manual) |
Volume Setting | High or medium |
Cable Termination Size | 0.5 - 2.5mm² |
Material | Flame retardant PC/ABS |
Gross Weight – Standard device (low profile) | 190g |
Gross Weight – Standard device (deep / IP65) | 197g |
Gross Weight – First Fix option (low profile) | 200g |
Gross Weight – First Fix option (deep / IP65) | 207g |
