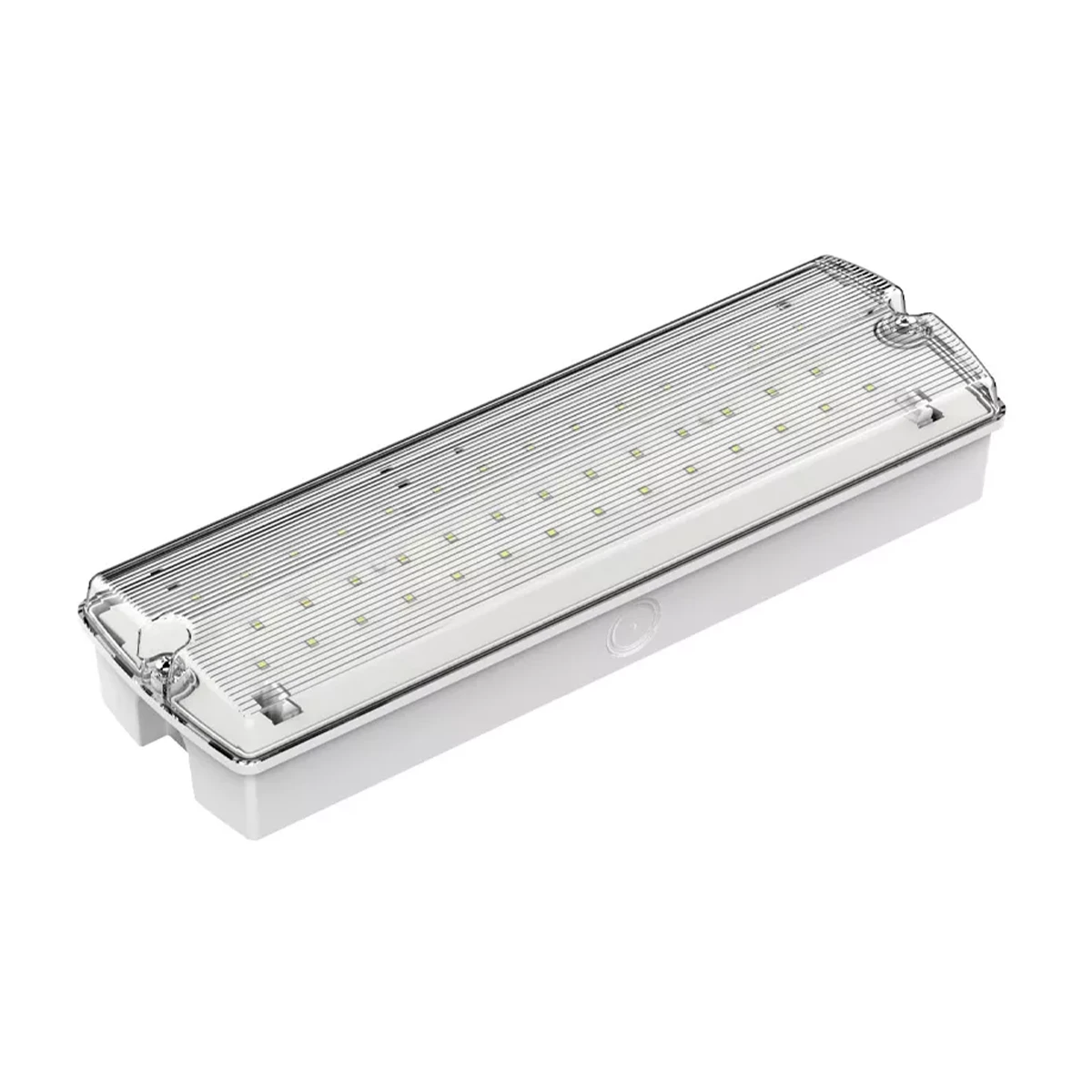

The Firesmart Self-Test 3hr LED emergency lighting Bulkhead is energy efficient due to its low power consumption. Following a traditional design, it also comes with self test as standard and is easy to install. With an IP65 protection rating, it ensures durability and reliable performance.
The Firesmart Self-Test 3hr LED emergency lighting Bulkhead is equipped with a self-test feature as standard, reducing labour costs and maintenance time. The health charge indicator keeps you informed about the battery's status. With a 24-hour recharge time and a long-lasting LiFePO4 battery, it provides dependable backup power during emergencies.
Installation is effortless thanks to the hinged gear tray, and its low power consumption promotes energy efficiency. Backed by a 3-year guarantee (excluding batteries), the Firesmart Self-Test 3hr LED emergency lighting Bulkhead offers reliability and durability for your emergency lighting needs.
Key Features
Maintained/Non Maintained selectable lighting options
Green LED healthy chargeindicator
Traditional design suitable for retrofit projects
IP65 Protection Rating
Low power consumption
Easy install hinged gear tray
Traditional design
Self-test as standard
Technical Specifications
Light Source
LED
Light Source Replaceable
No
Colour/Finish
White
Material
Polycarbonate
Diffuser Type
Prismatic
Diffuser Material
Polycarbonate
IP Rating
IP65IK Rating
IK08
Mounting Type
Surface
Warranty (Years)
5Life Time Hours
50000
Length (mm)
352Width (mm)
110Depth (mm)
65Weight (g)
540Input Voltage (V)
220-240
Input Frequency (Hz)
50
Wattage (W)
5Classification
Class I
Power Factor
0.34
Operating Temperature (c)
0 to +40
Colour Temperature
6500
CRI
70Beam Angle ()
117Lumen Output Mains (lm)
350Viewing Distance (M)
19Test Procedure
Self Test
Battery Type
LiFePO4 18650 3.2V
Battery Capacity
1.5Ah
Battery Warranty (Years)
5Recharge Time (hrs)
24Battery Replaceable
YesMode Of Operation
Maintained / Non-maintained
Emergency Duration (Hrs)
3Lumen Output Emergency (lm)
138Manufactured in Accordance with
BS EN 60598-1, BS EN 60598-2-22, BS EN 50172
CE Mark
YesUKCA Mark
Yes
WEEE Symbol
Yes
Accredited Members
ISO 9001, LIA, ICEL
Packaging Length (mm)
365
Packaging Width (mm)
115
Packaging Depth (mm)
85
