Fike Twinflex Pro² Bi-Wire Fire Alarm Kit | 2, 4, or 8 Zone

Name: Fike Twinflex Pro² Bi-Wire Fire Alarm Kit | 2, 4, or 8 Zone
Brand: Fike
SKU: FDS200/010
Price: 518.4 GBP
Availability: InStock

Code: FDS200/010

£518.40

INC VAT

Code: FDS200/010

Zone

Manufacturer Code: 604-0002

Add these extras to your kit

Please Select

Fike TwinflexPro² Fire Alarm Battery Twin Pack(£37.14 inc vat)

Fike 402-0006 | Twinflex Manual Call Point(£21.54 inc vat)

Fike 204-0003 | Twinflex Multipoint ASD Detector(£31.50 inc vat)

Fike 204-0001 | Twinflex Multipoint ASD Detector with Sounder(£39.18 inc vat)

Fike 204-0012 | Twinflex Multipoint ASD Detector With Sounder Strobe(£58.98 inc vat)

FireSmart Fire Alarm Logbook(£4.74 inc vat)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

!! ORDER NOW FOR DELIVERY FROM 03.04.25 !!

The Fike Twinflex Pro² fire alarm kits provide a comprehensive solution for a complete fire alarm system. Available in 2 zone (604-0002), 4 zone (604-0004), and 8 zone (604-0008) versions, each kit includes essential components to simplify installation.

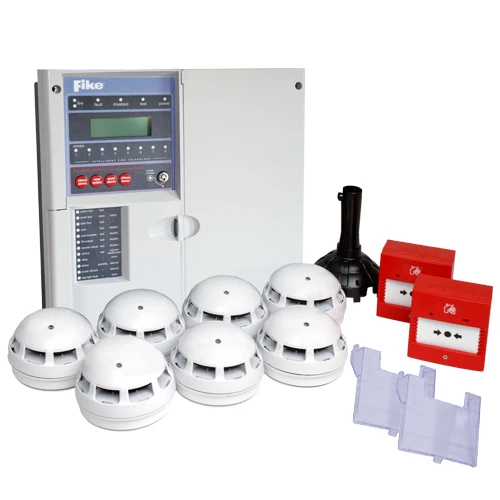

Each kit contains a Twinflex Pro² Control Panel, Twinflex Multipoint Detectors with Integrated Sounders, Twinflex Manual Call Points with lift up protective cover and a Head Removal Tool.

For convenience, you can add devices from the options box above to configure your Fike Twinflex Pro² to your exact requirements.

Contents

Fike TwinflexPro² Bi-Wire Fire Alarm Panel: A cost-effective and adaptable to a variety of applications, the Twinflex Pro² 2-wire fire alarm system is known for its state-of-the-art technology.
7 x Fike Twinflex Multipoint ASD Detector with Sounder: Combines a multi-criteria detector, micro-processor control, and integral sounder in one easy to install device on just one single cable run.
2 x Fike Twinflex Manual Call Point: Compact surface or flush mount call points designed for use on the same cable run as the ASD Detectors.
2 x Fike Twinflex Manual Call Point Cover: Clear clip on covers for Fike call points.
Fike Multipoint ASD Head Removal Tool: The ASD head removal tool is used to release the optical chamber on the Fike ASD Multipoint detector/sounder.

Fike TwinflexPro² Bi-Wire Fire Alarm Panel	4 line x 20 character LCD display
	HMO option - sounds in zone first
	Event log storing up to 500 events
	Allows detectors and sounders to be installed on the same pair of wires
	Up to 32 devices per zone
	Requires 2 x 3.2Ah batteries.
Fike Twinflex Multipoint ASD Detector with Sounder	7 modes of detection (3 x smoke detection modes, 3 x heat detection modes & 1 x combination mode.)
	Selectable via in-built DIL
	Selectable EOL
	Three sound patterns
	Selectable sound output between 70 to 90db
	Base included
Fike Twinflex Manual Call Point	Resettable element.
	Reset key provided
	LED indication of "end of line"
	Supplied complete with back box
	Protective cover included

Panel Specification	2 Zone Panel	4 Zone Panel	8 Zone Panel
Dimensions (mm)	331 x 331 x 99	331 x 331 x 99	331 x 331 x 99
Weight (excluding batteries)	2.25 kg	2.28 kg	2.36 kg
Construction	V0 rated ABS	V0 rated ABS	V0 rated ABS
IP Rating	IP 30	IP 30	IP 30
Cable Entry	13 x 20mm knockouts, 1 x 50mm x 50mm pull-out tab	13 x 20mm knockouts, 1 x 50mm x 50mm pull-out tab	13 x 20mm knockouts, 1 x 50mm x 50mm pull-out tab
Cable Type	2 core 1.5mm² screened fire-rated cable, 500m (max per zone)	2 core 1.5mm² screened fire-rated cable, 500m (max per zone)	2 core 1.5mm² screened fire-rated cable, 500m (max per zone)
Detection Zones	2 Max	4 Max	8 Max
Devices per Zone	Up to 32 devices (dependent on Device Loading Units (DLUs), not exceeding the stated maximum loading)	Up to 32 devices (dependent on Device Loading Units (DLUs), not exceeding the stated maximum loading)	Up to 32 devices (dependent on Device Loading Units (DLUs), not exceeding the stated maximum loading)
Device Protocol	TWINFLEX® V3 + TWINFLEX® Pro	TWINFLEX® V3 + TWINFLEX® Pro	TWINFLEX® V3 + TWINFLEX® Pro
Monitored Sounder Circuits	Up to 2 (250 mA)	Up to 2 (250 mA)	Up to 2 (200 mA)
Monitored Relay Circuits	Up to 2 (250 mA)	Up to 2 (250 mA)	Up to 2 (200 mA)
Relays on Board	Common fire and common fault	Common fire and common fault	Common fire and common fault
Operating Standard	BS EN54-2 & 4	BS EN54-2 & 4	BS EN54-2 & 4
Operating Temperature	5°C to 40°C	5°C to 40°C	5°C to 40°C
Mains Supply Range	230VAC, +10%, -15%, 50/60Hz	230VAC, +10%, -15%, 50/60Hz	230VAC, +10%, -15%, 50/60Hz
Event Log	500 Events	500 Events	500 Events
Zone Labels	12 Characters	12 Characters	12 Characters

Fike Twinflex Pro² Bi-Wire Datasheet

Click here to download

Overview

Features

Technical Data

Panel Specification	2 Zone Panel	4 Zone Panel	8 Zone Panel
Dimensions (mm)	331 x 331 x 99	331 x 331 x 99	331 x 331 x 99
Weight (excluding batteries)	2.25 kg	2.28 kg	2.36 kg
Construction	V0 rated ABS	V0 rated ABS	V0 rated ABS
IP Rating	IP 30	IP 30	IP 30
Cable Entry	13 x 20mm knockouts, 1 x 50mm x 50mm pull-out tab	13 x 20mm knockouts, 1 x 50mm x 50mm pull-out tab	13 x 20mm knockouts, 1 x 50mm x 50mm pull-out tab
Cable Type	2 core 1.5mm² screened fire-rated cable, 500m (max per zone)	2 core 1.5mm² screened fire-rated cable, 500m (max per zone)	2 core 1.5mm² screened fire-rated cable, 500m (max per zone)
Detection Zones	2 Max	4 Max	8 Max
Devices per Zone	Up to 32 devices (dependent on Device Loading Units (DLUs), not exceeding the stated maximum loading)	Up to 32 devices (dependent on Device Loading Units (DLUs), not exceeding the stated maximum loading)	Up to 32 devices (dependent on Device Loading Units (DLUs), not exceeding the stated maximum loading)
Device Protocol	TWINFLEX® V3 + TWINFLEX® Pro	TWINFLEX® V3 + TWINFLEX® Pro	TWINFLEX® V3 + TWINFLEX® Pro
Monitored Sounder Circuits	Up to 2 (250 mA)	Up to 2 (250 mA)	Up to 2 (200 mA)
Monitored Relay Circuits	Up to 2 (250 mA)	Up to 2 (250 mA)	Up to 2 (200 mA)
Relays on Board	Common fire and common fault	Common fire and common fault	Common fire and common fault
Operating Standard	BS EN54-2 & 4	BS EN54-2 & 4	BS EN54-2 & 4
Operating Temperature	5°C to 40°C	5°C to 40°C	5°C to 40°C
Mains Supply Range	230VAC, +10%, -15%, 50/60Hz	230VAC, +10%, -15%, 50/60Hz	230VAC, +10%, -15%, 50/60Hz
Event Log	500 Events	500 Events	500 Events
Zone Labels	12 Characters	12 Characters	12 Characters

Downloads & Resources

Fike Twinflex Pro² Bi-Wire Fire Alarm Kit | 2, 4, or 8 Zone

£518.40

Fike TwinflexPro² Fire Alarm Battery Twin Pack

£30.95

Fike 204-0003 | Twinflex Multipoint ASD Detector

£26.25

Fike 204-0001 | Twinflex Multipoint ASD Detector with Sounder

£32.65

Fike 204-0012 | Twinflex Multipoint ASD Detector With Sounder Strobe

£49.15

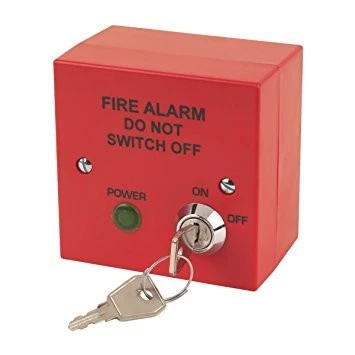

FireSmart BS5839 Fire Alarm Mains Isolator with Keyswitch | Red

£18.25

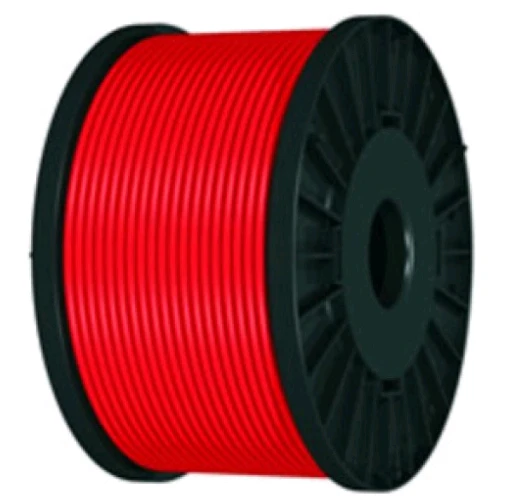

FireSmart Premium 2 Core 1.5mm Fire Alarm Cable
