Fike 802-0006 | Twinflex Input / Output Relay Module

Name: Fike 802-0006 | Twinflex Input / Output Relay Module
Brand: Fike
Price: 54.24 GBP
Availability: InStock

Code: FDS100/462

£54.24

INC VAT

Code: FDS100/462

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

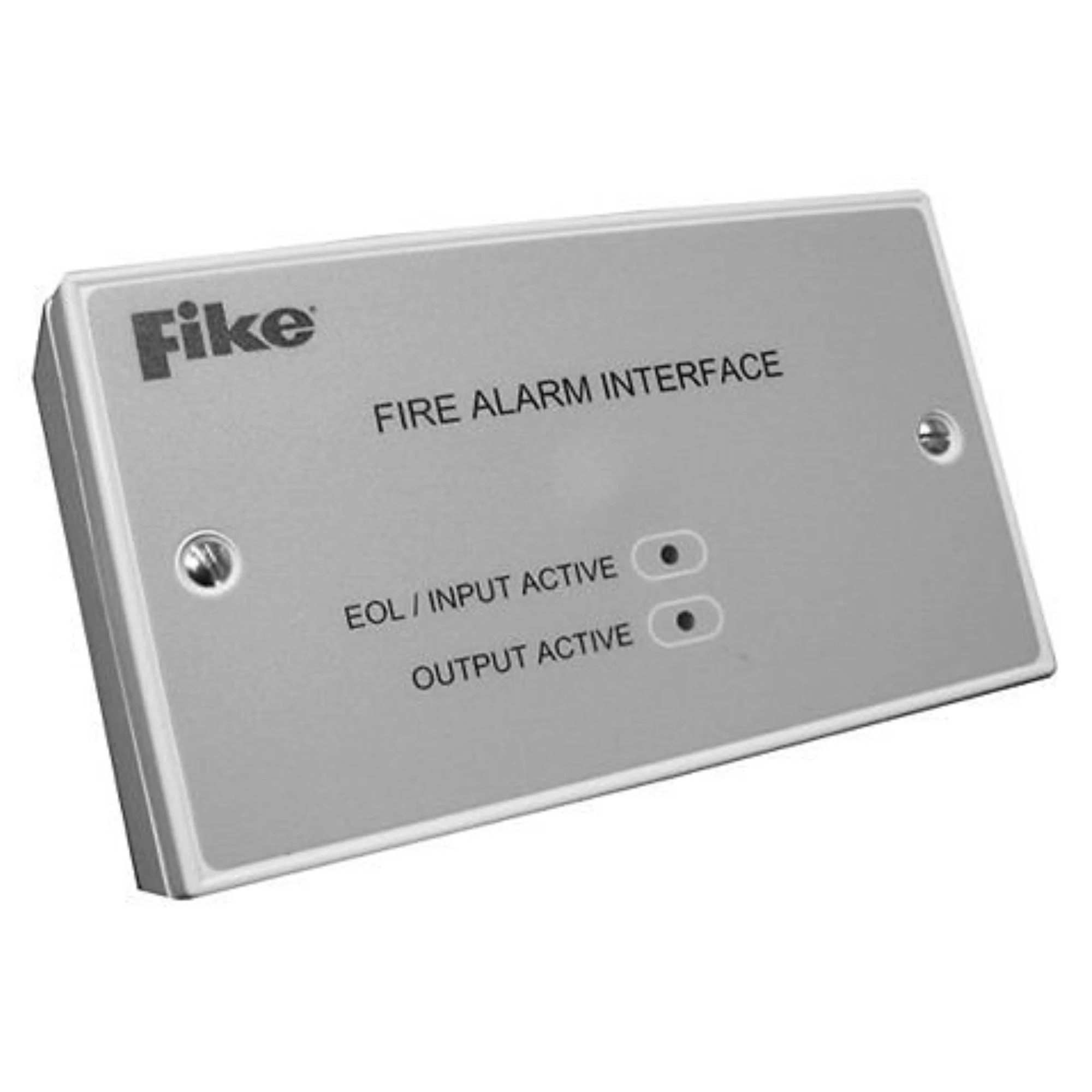

Fike 802-0006 Twinflex Input/Output Relay Module to interface external equipment. The module is installed on the zone cabling along with multipoint detectors and call points.

Mounted in a standard double back box the Fike 802-0006 has two sets of 2A rated single pole changeover contacts along with one monitored input and eol dip switch.

Fike 802-0006
Twinflex compatible
Two seperate relays
230Vac 3A switch rated
Single monitored input

Specification	Value
Dimensions (Overall)	146mm x 87mm x 41mm
Dimensions (Back Box)	146mm x 87mm x 32mm
Operating Temperature	-10°C to +45°C
Voltage Range	DC Output from Mains Powered Panel: 25.5 to 35V DC
	DC Output from Battery Powered Panel: 20 to 26V DC
Operating Current (Typical)	Quiescent: 0.207 mA
	End of Line ON if applicable: 0.080 mA (in addition to Quiescent)
	Active: 22.715 mA
LED Indication	Output Active LED (Red): On continuously when output active
	Status - EOL/Input Active LED (Red): On continuously when input active
	Flash once every 20 secs for normal, Flash once every 5 secs for EOL
Max Cable Length to Input	3 Metres
Contact Rating	DPCO Relay Max Load: 30V DC ⎓2A
	250V AC 50Hz/60Hz 2A
	Max 3A Surge
Fuses	Fuse 1, Fuse 2: 3.15A Antisurge 20mm Ceramic
	250V AC (e.g. Bussman S505-3.15A)
Loading Units	V3 Panel: Max Loading Units per Zone: 27 SLU
	Pro Panel: Max Loading Units per Zone: 160 DLU
	I/O Unit: 4 SLU / 23 DLU
Flammability	UL94-V2
IP Rating	IP 30
Part Code	802 0006

Fike 802-0006 Twinflex Input / Output Relay Module Manual
