Code: FDS002/223
INC VAT
Code: FDS002/223

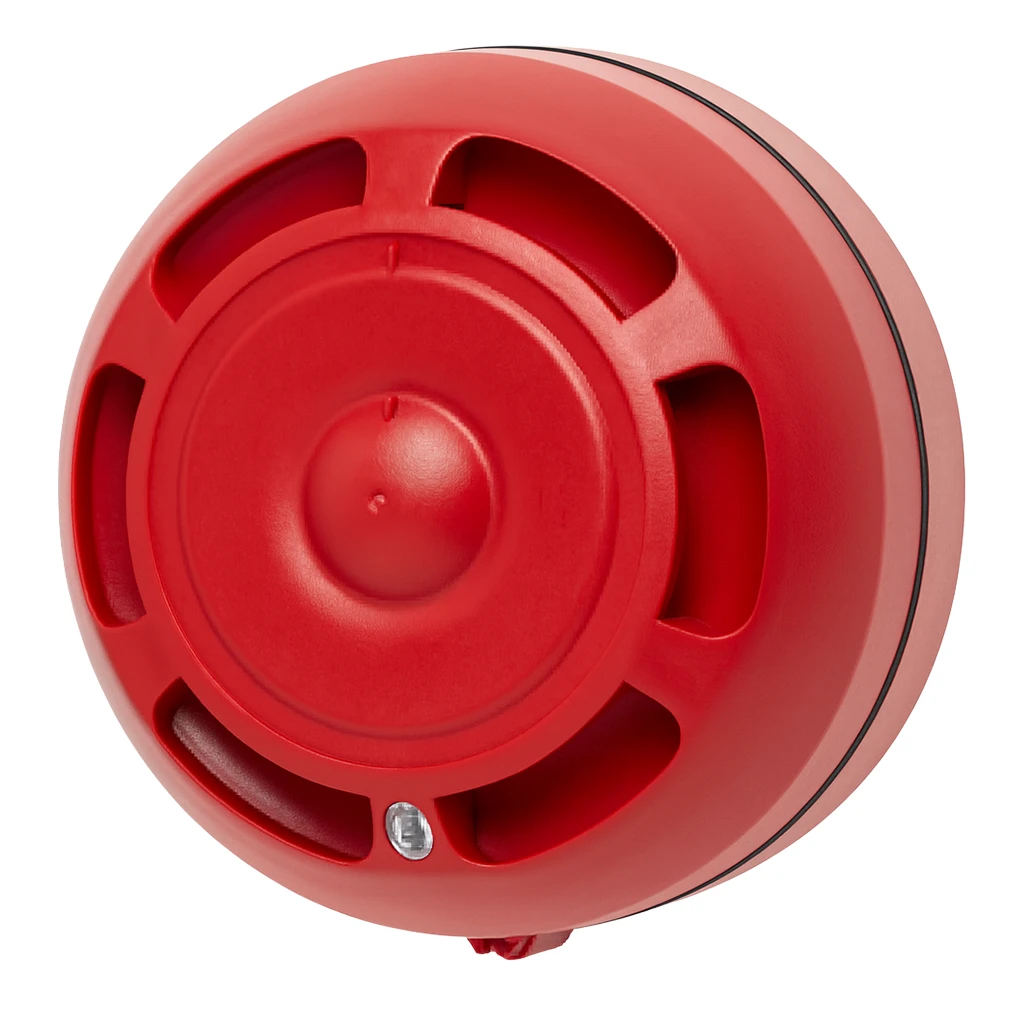

The Fike F0296336 Twinflex Sounder (Red) is a loop-powered sounder designed for use with the Fike Twinflex two-wire fire alarm system.
It provides a clear audible warning during fire alarm activation and is engineered for quick installation on Twinflex loops.
The sounder is suitable for commercial and industrial environments where reliable fire alarm notification is required.
Its red housing makes it highly visible and ensures compliance with fire alarm system requirements.
Compact and robust, the device is a dependable solution for installers looking for a tested and approved notification device.
Loop-powered sounder for Fike Twinflex systems
Clear and consistent audible output for reliable warning
Red housing ensures high visibility and compliance
Compact and robust design for easy installation
Compatible with Twinflex two-wire loops
Approved and tested for commercial and industrial use
Category | Specification | Detail |
---|---|---|
Dimensions | Diameter | 104 mm |
Height | 80 mm | |
Operating Temp. | Range | -25 °C to +75 °C |
VAD Coverage | Volume | W-2.4 - 7.5 |
Voltage Range | DC Output (Mains Powered Panel) | 25.5 to 35.5 V DC |
DC Output (Battery Powered Panel) | 21 to 26 V DC | |
Operating Current (Typical) | Quiescent | 144 μA |
End of line ON (additional to Quiescent) | 1 mA | |
VAD + Alarm Sounding, Sounder High | 26.0 mA | |
VAD + Alarm Sounding, Sounder Low | 18.0 mA | |
VAD No Sounder | 16.0 mA | |
Power Consumption | Maximum | 0.832 W |
Minimum | 0.512 W | |
Flash Rate | Fast Mode | 1 sec |
Slow Mode | 2 sec | |
Loading Units | Max Units per Zone | 160 DLU |
Sounder High | 28.0 DLU | |
Sounder Low | 20.0 DLU | |
Decibel Range | Sounder High | 95+ dB(A) |
Sounder Low | 65+ dB(A) | |
Flammability | Rating | UL94-V2 |
IP Rating | Protection | IP65 + IP33C |
Part Code | Reference | F0296336 |
Compatibility | Panel | V3, Pro & Pro² |
The Fike F0296336 Twinflex Sounder (Red) is a loop-powered sounder designed for use with the Fike Twinflex two-wire fire alarm system.
It provides a clear audible warning during fire alarm activation and is engineered for quick installation on Twinflex loops.
The sounder is suitable for commercial and industrial environments where reliable fire alarm notification is required.
Its red housing makes it highly visible and ensures compliance with fire alarm system requirements.
Compact and robust, the device is a dependable solution for installers looking for a tested and approved notification device.
Loop-powered sounder for Fike Twinflex systems
Clear and consistent audible output for reliable warning
Red housing ensures high visibility and compliance
Compact and robust design for easy installation
Compatible with Twinflex two-wire loops
Approved and tested for commercial and industrial use
Category | Specification | Detail |
---|---|---|
Dimensions | Diameter | 104 mm |
Height | 80 mm | |
Operating Temp. | Range | -25 °C to +75 °C |
VAD Coverage | Volume | W-2.4 - 7.5 |
Voltage Range | DC Output (Mains Powered Panel) | 25.5 to 35.5 V DC |
DC Output (Battery Powered Panel) | 21 to 26 V DC | |
Operating Current (Typical) | Quiescent | 144 μA |
End of line ON (additional to Quiescent) | 1 mA | |
VAD + Alarm Sounding, Sounder High | 26.0 mA | |
VAD + Alarm Sounding, Sounder Low | 18.0 mA | |
VAD No Sounder | 16.0 mA | |
Power Consumption | Maximum | 0.832 W |
Minimum | 0.512 W | |
Flash Rate | Fast Mode | 1 sec |
Slow Mode | 2 sec | |
Loading Units | Max Units per Zone | 160 DLU |
Sounder High | 28.0 DLU | |
Sounder Low | 20.0 DLU | |
Decibel Range | Sounder High | 95+ dB(A) |
Sounder Low | 65+ dB(A) | |
Flammability | Rating | UL94-V2 |
IP Rating | Protection | IP65 + IP33C |
Part Code | Reference | F0296336 |
Compatibility | Panel | V3, Pro & Pro² |
