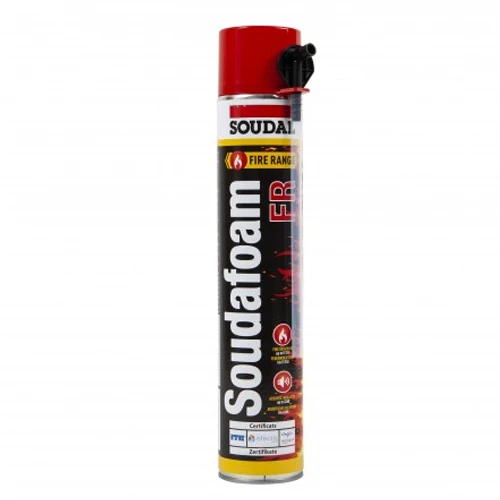

Soudal Expanding Fireproof Foam is a one-component, self-expanding polyurethane foam designed for sealing, filling and insulating joints and penetrations where fire resistance is required.
Supplied in a 750ml ready-to-use aerosol can, this fire-rated foam contains HCFC and CFC-free propellants and is suitable for application using a compatible foam gun. The formulation offers excellent adhesion to most common construction materials, making it suitable for a wide range of fire stopping and sealing applications within commercial, industrial and residential buildings.
Tested to EN 1366-4, the foam provides fire resistance in joints for up to 240 minutes when used in suitable applications. In addition to its fire-retardant properties, it delivers excellent thermal and acoustic insulation performance, helping to reduce heat loss and airborne sound transmission through gaps and service penetrations.
The foam features high filling capacity and controlled expansion, allowing installers to efficiently seal irregular voids and cavities. Once cured, it provides a durable seal with minimal shrinkage and excellent dimensional stability.
Suitable for fire stopping around pipes, cables, ducts, construction joints and service penetrations, Soudal Expanding Fireproof Foam offers a practical solution for installers requiring a fire-resistant sealing material with strong insulation characteristics.
Fire-resistant in joints for up to 240 minutes (EN 1366-4)
Ready-to-use 750ml polyurethane foam
Self-expanding formulation for effective gap filling
Excellent adhesion to most construction materials
HCFC and CFC-free propellants
High acoustic insulation performance
High thermal insulation performance
High filling capacity for larger voids
Minimal shrinkage after curing
Suitable for professional fire stopping applications
Specification | Details |
|---|---|
Product Type | Fire-Rated Expanding Polyurethane Foam |
Brand | Soudal |
Can Size | 750ml |
Basis | Polyurethane |
Consistency | Stable Foam, Thixotropic |
Curing System | Moisture-Cure |
Fire Resistance | Up To 240 Minutes In Joints (EN 1366-4) |
Skin Formation (EN 17333-3) | 6.5 Minutes |
Cutting Time (EN 17333-3) | 20 Minutes |
Density | Approx. 19 kg/m³ |
Thermal Conductivity (λ) EN 12667 | 0.036 W/m.K |
Shrinkage After Curing (EN 17333-2) | < 2% |
Expansion After Curing (EN 17333-2) | < 2% |
Box Yield (EN 17333-1) | 750ml Yields Approx. 44 Litres Of Foam |
Joint Yield (FEICA TM 1002) | 750ml Yields Approx. 17m Of Foam |
Joint Yield (EN 17333-1) | 750ml Yields Approx. 35m Of Foam |
Shear Strength (EN 17333-4) | Approx. 48 kPa |
Tensile Strength (EN 17333-4) | Approx. 93 kPa |
Elongation At Fmax (EN 17333-4) | Approx. 11.5% |
Temperature Resistance (Cured) | -40°C To +90°C |
Shelf Life | 15 Months Unopened |
Storage Conditions | Store Upright In Dry Conditions At 5°C To 25°C |
UV Resistance | Not UV Resistant |
Adhesion | Most Surfaces Except PE, PP & PTFE |
Soudal Expanding Fireproof Foam is a one-component, self-expanding polyurethane foam designed for sealing, filling and insulating joints and penetrations where fire resistance is required.
Supplied in a 750ml ready-to-use aerosol can, this fire-rated foam contains HCFC and CFC-free propellants and is suitable for application using a compatible foam gun. The formulation offers excellent adhesion to most common construction materials, making it suitable for a wide range of fire stopping and sealing applications within commercial, industrial and residential buildings.
Tested to EN 1366-4, the foam provides fire resistance in joints for up to 240 minutes when used in suitable applications. In addition to its fire-retardant properties, it delivers excellent thermal and acoustic insulation performance, helping to reduce heat loss and airborne sound transmission through gaps and service penetrations.
The foam features high filling capacity and controlled expansion, allowing installers to efficiently seal irregular voids and cavities. Once cured, it provides a durable seal with minimal shrinkage and excellent dimensional stability.
Suitable for fire stopping around pipes, cables, ducts, construction joints and service penetrations, Soudal Expanding Fireproof Foam offers a practical solution for installers requiring a fire-resistant sealing material with strong insulation characteristics.
Fire-resistant in joints for up to 240 minutes (EN 1366-4)
Ready-to-use 750ml polyurethane foam
Self-expanding formulation for effective gap filling
Excellent adhesion to most construction materials
HCFC and CFC-free propellants
High acoustic insulation performance
High thermal insulation performance
High filling capacity for larger voids
Minimal shrinkage after curing
Suitable for professional fire stopping applications
Specification | Details |
|---|---|
Product Type | Fire-Rated Expanding Polyurethane Foam |
Brand | Soudal |
Can Size | 750ml |
Basis | Polyurethane |
Consistency | Stable Foam, Thixotropic |
Curing System | Moisture-Cure |
Fire Resistance | Up To 240 Minutes In Joints (EN 1366-4) |
Skin Formation (EN 17333-3) | 6.5 Minutes |
Cutting Time (EN 17333-3) | 20 Minutes |
Density | Approx. 19 kg/m³ |
Thermal Conductivity (λ) EN 12667 | 0.036 W/m.K |
Shrinkage After Curing (EN 17333-2) | < 2% |
Expansion After Curing (EN 17333-2) | < 2% |
Box Yield (EN 17333-1) | 750ml Yields Approx. 44 Litres Of Foam |
Joint Yield (FEICA TM 1002) | 750ml Yields Approx. 17m Of Foam |
Joint Yield (EN 17333-1) | 750ml Yields Approx. 35m Of Foam |
Shear Strength (EN 17333-4) | Approx. 48 kPa |
Tensile Strength (EN 17333-4) | Approx. 93 kPa |
Elongation At Fmax (EN 17333-4) | Approx. 11.5% |
Temperature Resistance (Cured) | -40°C To +90°C |
Shelf Life | 15 Months Unopened |
Storage Conditions | Store Upright In Dry Conditions At 5°C To 25°C |
UV Resistance | Not UV Resistant |
Adhesion | Most Surfaces Except PE, PP & PTFE |
