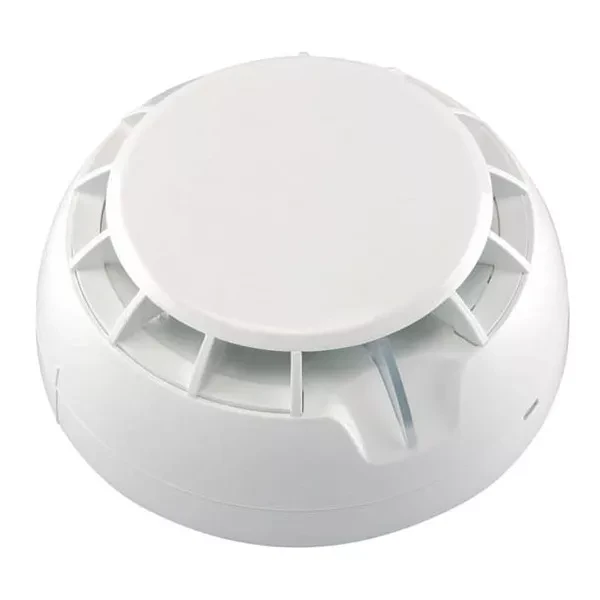

ESP MAGfire PSD2 Conventional Optical Smoke Detector w/ Base

Name: ESP MAGfire PSD2 Conventional Optical Smoke Detector w/ Base
Brand: Esp-magfire
Availability: InStock

Code: FDS002/281

Call to place order

INC VAT

Code: FDS002/281

In stock
Typically dispatched in 2-5 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The ESP MAGfire PSD2 is a conventional optical smoke detector supplied complete with a diode detector base for easy installation.

Designed for use with ESP MAGfire control panels, it’s also compatible with most conventional fire alarm systems operating with a low fire alarm threshold between 10mA and 15mA.

Featuring auto-compensation and digital signal processing, the PSD2 ensures stable and reliable performance with reduced false alarms.

Its low-profile housing, 360° LED visibility and robust smoke chamber gasket make it suitable for a wide range of commercial and industrial environments.

Conventional optical smoke detector
Supplied with diode detector base
Auto-compensation technology
Digital signal processing
Low-profile design
360° LED indicator
Status check every 8 seconds
Rubber gasket for chamber protection

Specification	Value
Dimensions (mm)	Ø102 × 48 (including base)
Finish	White
Material	ABS
Test Facility	Simulated Smoke
Weight (kg)	0.16
Warranty (Years)	3
Operating Voltage (V DC)	9 – 30
Cable Size (mm²)	0.4 – 2.0 (twin)
Alarm Current @ 24V (mA)	49
Standby Current @ 24V (µA)	<60
Wiring Type	4-Wire Conventional
Ingress Protection	IP30
Operating Temperature (°C)	–10 to +60
Relative Humidity Resistance (%)	93 ±3 (at +40°C)
Compatible Products	MAG2, MAG2P, MAG4, MAG8, MAG816, MAGPRO-CZM
Standards	BS EN 54-7

Datasheet	Click here to download
Manual	Click here to download

Overview

Features

Technical Data

Specification	Value
Dimensions (mm)	Ø102 × 48 (including base)
Finish	White
Material	ABS
Test Facility	Simulated Smoke
Weight (kg)	0.16
Warranty (Years)	3
Operating Voltage (V DC)	9 – 30
Cable Size (mm²)	0.4 – 2.0 (twin)
Alarm Current @ 24V (mA)	49
Standby Current @ 24V (µA)	<60
Wiring Type	4-Wire Conventional
Ingress Protection	IP30
Operating Temperature (°C)	–10 to +60
Relative Humidity Resistance (%)	93 ±3 (at +40°C)
Compatible Products	MAG2, MAG2P, MAG4, MAG8, MAG816, MAGPRO-CZM
Standards	BS EN 54-7
