ESP MAGfire FHD2 Conventional Heat Detector w/ Base

Name: ESP MAGfire FHD2 Conventional Heat Detector w/ Base
Brand: Esp-magfire
Availability: InStock

Code: FDS002/282

Call to place order

INC VAT

Code: FDS002/282

In stock
Typically dispatched in 2-5 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

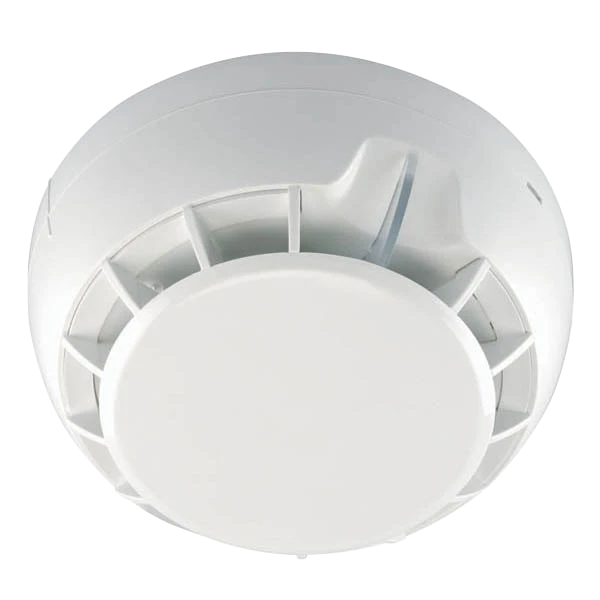

The ESP MAGfire FHD2 is a conventional fixed temperature heat detector, supplied complete with a diode detector base for easy installation.

Classified as A2S, the detector activates when ambient temperatures exceed 60°C, making it ideal for environments such as kitchens, boiler rooms and workshops where smoke detectors may cause false alarms.

Designed for use with ESP MAGfire panels, it’s also compatible with most conventional fire alarm systems operating with a low fire alarm threshold between 10mA and 15mA. Its low-profile design, 360° LED indication and digital signal processing provide reliable performance and long service life.

Fixed heat detector (Class A2S)
Supplied with diode detector base
Activates above 60°C
Digital processing algorithm
Low-profile housing
360° LED indicator
Status check every 8 seconds

Specification	Value
Dimensions (mm)	Ø102 × 48 (including base)
Finish	White
Material	ABS
Test Facility	Simulated Heat
Weight (kg)	0.16
Warranty (Years)	3
Operating Voltage (V DC)	9 – 30
Cable Size (mm²)	0.4 – 2.0 (twin)
Alarm Current @ 24V (mA)	49
Standby Current @ 24V (µA)	<60
Wiring Type	4-Wire Conventional
Ingress Protection	IP30
Operating Temperature (°C)	–10 to +60
Relative Humidity Resistance (%)	93 ±3 (at +40°C)
Compatible Products	MAG2, MAG2P, MAG4, MAG8, MAG816, MAGPRO-CZM
Standards	BS EN 54-5

Datasheet	Click here to download
Manual	Click here to download

Overview

Features

Technical Data

Specification	Value
Dimensions (mm)	Ø102 × 48 (including base)
Finish	White
Material	ABS
Test Facility	Simulated Heat
Weight (kg)	0.16
Warranty (Years)	3
Operating Voltage (V DC)	9 – 30
Cable Size (mm²)	0.4 – 2.0 (twin)
Alarm Current @ 24V (mA)	49
Standby Current @ 24V (µA)	<60
Wiring Type	4-Wire Conventional
Ingress Protection	IP30
Operating Temperature (°C)	–10 to +60
Relative Humidity Resistance (%)	93 ±3 (at +40°C)
Compatible Products	MAG2, MAG2P, MAG4, MAG8, MAG816, MAGPRO-CZM
Standards	BS EN 54-5
