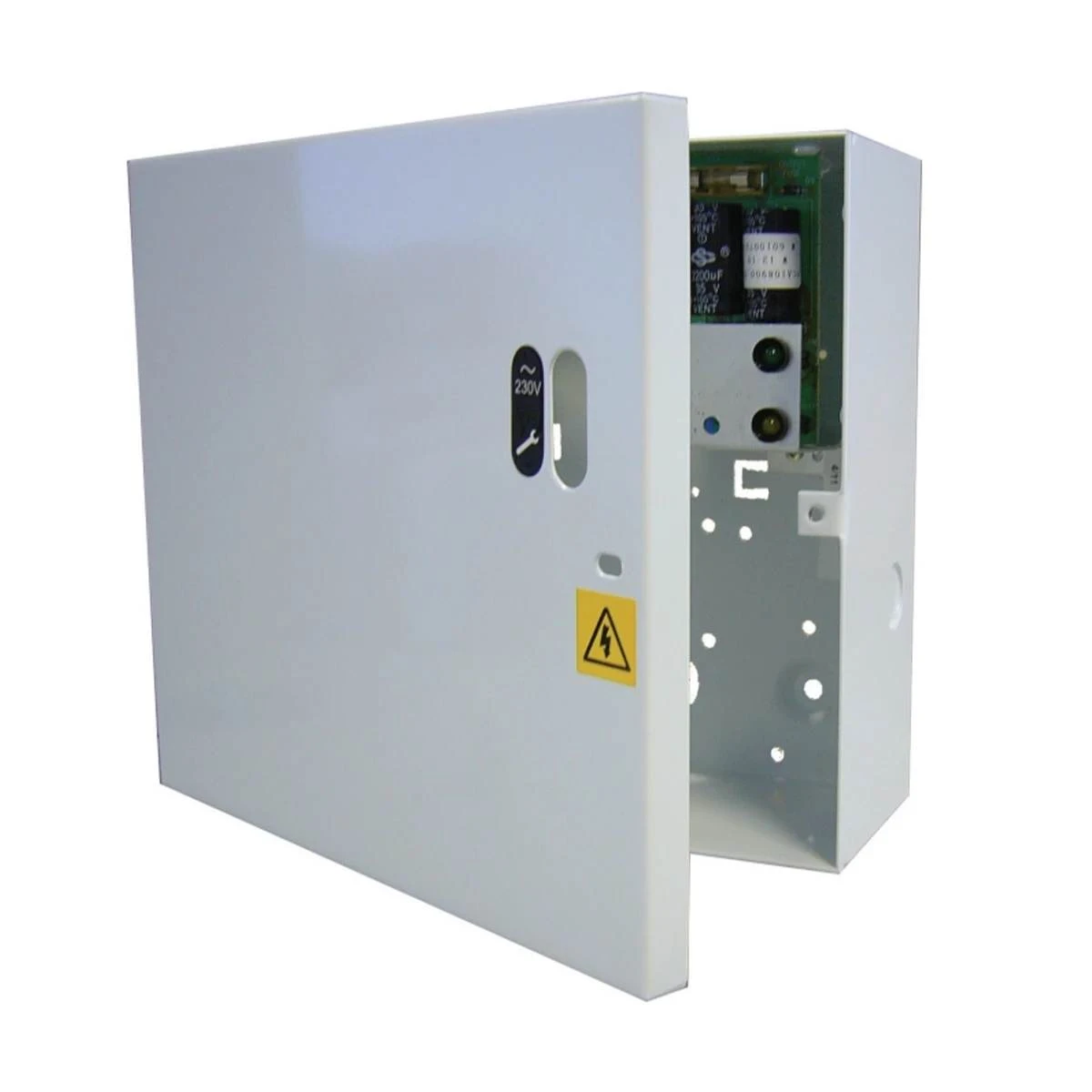

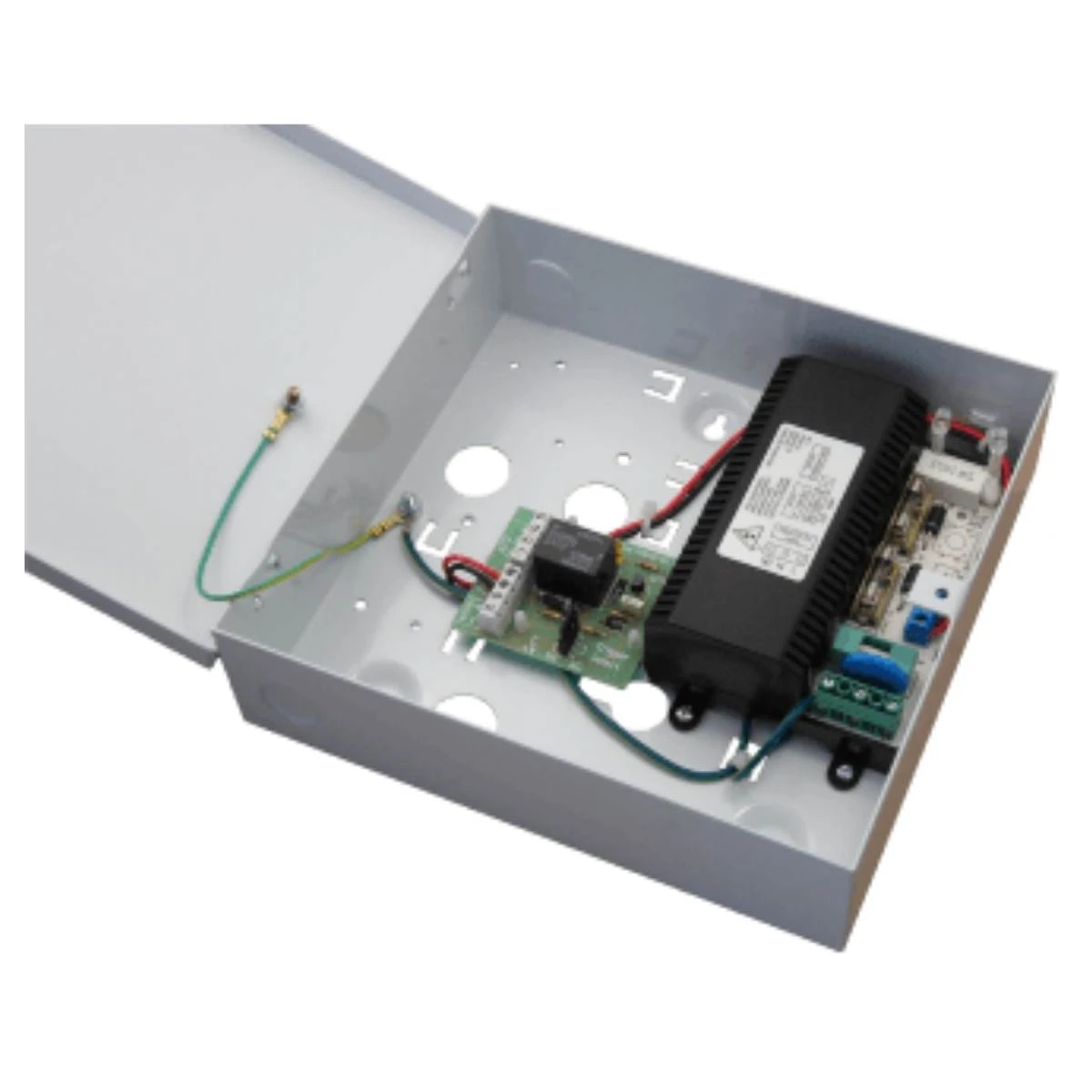

Elmdene TR4 24Vdc 4A Transformer Rectifier

Name: Elmdene TR4 24Vdc 4A Transformer Rectifier
Brand: Elmdene
Availability: InStock

Code: FDS002/923

Call to place order

Code: FDS002/923

TR4 Power Supply Unit
Door Retainer Power Supply Unit
Remote Control of Outputs

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The TR4 by Elmdene is part of their TR range of power supplies, which are specifically designed for access control applications that require remote control of the power supply unit.

For example, a TR or TRS power supply unit is used to power door retainers, with a link to the fire panel to switch off the output to the doors in the event of a fire alarm activation.

These units also have an expanded range of input options, including the detection of a normally closed contact going open and the removal of a 24V DC signal to provide a fully fail-safe operation mode.

The TR range, including the TR4, is also BS 7273 Compliant.

TR4 Power Supply Unit
Door Retainer Power Supply Unit
Remote Control of Outputs
LED indication
Mains transient protection
Links to Fire Panels
BS 7273 Compliant

Specifics	Detail
Voltage	24V DC
Copliance	CE & BS 7273
Load Output	4.0A
Enclosure Measurements	200mm x 230mm x 80mm
Weight	3.4kg

Instruction Sheet	Click here to download
TR Range	Click here to download
