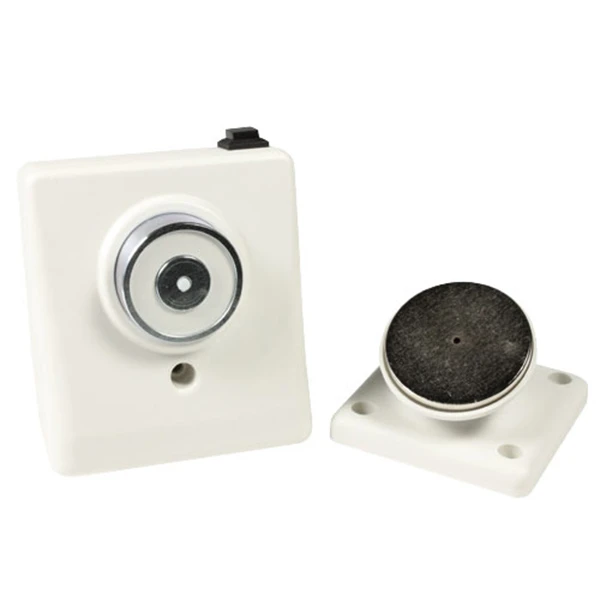

Doormouse DR87-0370 24V Magnetic Fire Door Retainer | Plastic Housing

The Doormouse DR87-0370 24V Magnetic Fire Door Retainer is a wall-mounted electromagnetic door holder designed to safely hold fire doors open under normal conditions and automatically release them in the event of a fire alarm.

When connected to a fire alarm system, the unit releases the door immediately upon alarm activation by cutting power to the magnet, allowing the door’s standard closing mechanism to shut the door and help contain fire and smoke.

Housed in a durable fire-resistant ABS plastic casing, the retainer is built for reliability in high-use environments while maintaining a clean, unobtrusive appearance.

The unit features a spring-loaded pin that ensures zero residual magnetism when de-energised, allowing the door to close freely without sticking. An integrated manual release button also enables the door to be closed at any time without triggering the fire alarm system.

Designed for surface mounting, the DR87-0370 includes knockouts for both rear and surface cable entry, providing flexibility during installation. It is suitable for use in a wide range of public and commercial environments including hospitals, offices, hotels and care homes.

Approved to EN1155 and CE marked, this unit offers a dependable and cost-effective solution for compliant fire door hold-open systems.

• 24V DC electromagnetic fire door retainer

• Designed for use with fire alarm systems

• Automatically releases door on alarm activation

• Wall-mounted, surface installation

• Fire-resistant ABS plastic housing

• Zero residual holding force for reliable release

• Integrated manual release button

• Flexible cable entry via rear or surface knockouts

• 200N holding force

• Approved to EN1155 and CE marked

• Suitable for hospitals, offices, hotels and care homes
