C-TEC Quantec QT602D | Slave Nurse Call Point

Name: C-TEC Quantec QT602D | Slave Nurse Call Point
Brand: C-tec
Price: 19.139999999999997 GBP
Availability: InStock

Code: FDS201/598

£19.14

INC VAT

Code: FDS201/598

In stock
Typically dispatched in 1-2 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

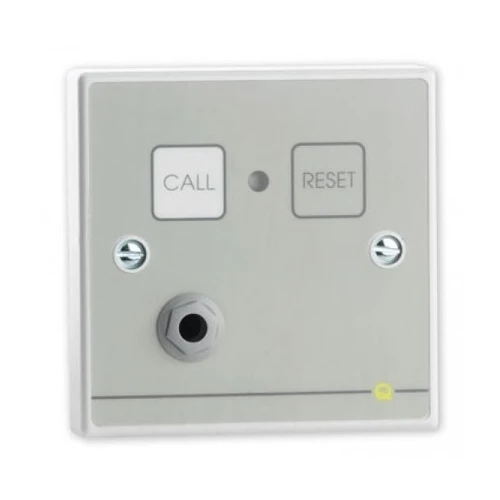

The C-TEC Quantec QT602D Slave Call Point is designed for use with the Quantec addressable call system, providing a simple and effective way to raise an alert in care homes, hospitals and other assisted living environments.

Users can generate a call in two ways, by pressing the clearly marked call button or by inserting a compatible call lead into the integrated remote socket.

This dual activation method makes it suitable for residents, patients or staff with varying mobility needs.

The unit features a durable, easy-to-clean faceplate and is designed for quick installation as part of a larger Quantec network.

Its clear visual indicators provide reassurance that the call has been registered by the system.

Designed to generate a call by either pressing the button or via a call lead plugged into the remote socket
Connected to a main QT602 call point (max 3 slaves per main)
When activated it is sent via the main call point back to the control panel which will alarm displaying the location where the call has originated

Specification	Details
Power Requirements	Nominal 24V DC (from Quantec Controller/Network)
Quiescent Current	Less than 3mA
Alarm Current	14mA
Indicators	Red/green confidence LED
Controls	Call button; Reset button
Connections	Net +; Net ~; R; G; L+; SW; IR; SLV
Expansion Connections	R; G; L+; SW; IR & SLV terminals allow the connection of optional dummy/extender overdoor lights, dummy/extender call points, dummy/extender ceiling pulls and dummy/extender infrared receivers
Onboard 6.35mm Remote Jack Socket	Yes – for the optional connection of tail call leads/pear pushes, pressure mats and movement detectors
Onboard Sounder	No
Onboard Infrared Receiver	No
Product Dimensions (mm)	86 W x 86 H x 30 D mm. Can be mounted on a standard UK 25mm single gang flush or surface back box
Construction & Finish	Plastic
IP Rating	IP20
Weight	72g
Operating Conditions/Temperature	-5°C to +40°C. Max relative humidity: 95%

C-TEC Quantec QT602D Datasheet

Click here to download
