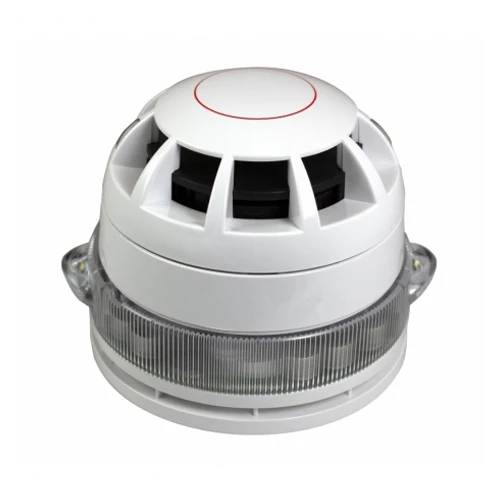

C-TEC CA455A/W CAST White O-R-3-2.5-18 Base VAD cw Voice Sounder

The C-TEC CA455A/W is an addressable base VAD and voice sounder unit for use with the C-TEC CAST protocol range of analogue addressable fire alarm system equipment.

• Provides 'O-R-3-2.5-18' rated light distribution

• Ideal for use in corridors (mount in a specific orientation for 2.5m width & 18m length rated coverage). See VAD Coverage section below for further details

• Superb sound intelligibility

• Onboard short-circuit loop isolator

• Four selectable volume levels

• Six selectable messages with tones (2 evacuate, 1 alert, 1 all clear & 2 system test messages)

• 26.5mA typical alarm current (470A typical quiescent current) @ 27-40V DC (max volume & brightness)

• Group addressing facility allows multiple devices to be operated simultaneously

• Optional BF330CTLIDW white or BF330CTLIDR red cap available for stand-alone use

• IP21C rated

• White ceiling fixing plate & detector spur wires included
