C-TEC CA446A/SR CAST Red Hi-Output Wall Voice Sounder cw Shallow Base

Name: C-TEC CA446A/SR CAST Red Hi-Output Wall Voice Sounder cw Shallow Base
Brand: C-tec
Price: 61.2 GBP
Availability: InStock

Code: FDS331/322

£61.20

INC VAT

Code: FDS331/322

Superb sound intelligibility
Onboard short-circuit loop isolator
Four selectable volume levels

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

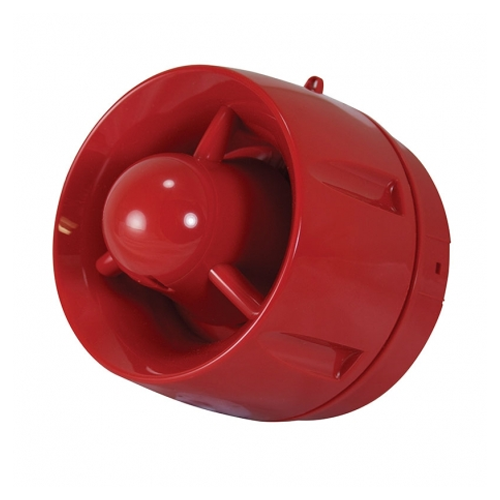

The C-TEC CA446A/SR is a red wall mounted high output addressable wall voice sounder with shallow base designed for use on C-TEC CAST protocol analogue addressable fire alarm systems.

Superb sound intelligibility
Onboard short-circuit loop isolator
Four selectable volume levels
Six selectable messages with tones
15.5mA typical alarm current (470A typical quiescent current) @ 24-40V DC (sounder on max.)
Group addressing facility allows multiple devices to be operated simultaneously
IP21C rated

Protocol/compatibility:Compatible with C-TEC's CAST protocol Addressable Fire Panels
Application/operation:Designed to be wall mounted. Indoor areas only
Supply/operating voltage:27 to 40V DC
Quiescent current:470A typical
Nominal SPL (Sound Pressure Level):100dB(A) @ 1m synchronised
Alarm current:15.5mA @ 24-40V DC (sounder on max)
Indicators:Polling (red LED)
IP Rating:IP21C (Type A)
Dimensions: 108.3 mm diameter, 99.5 mm deep (incl base)
Weight:215g
Operating conditions/temperature:-10C to +55C. Max. 95% RH (Non-condensing)

C-TEC CA446A/SR CAST Red Hi-Output Wall Voice Sounder cw Shallow Base Data Sheet

Click here to download
