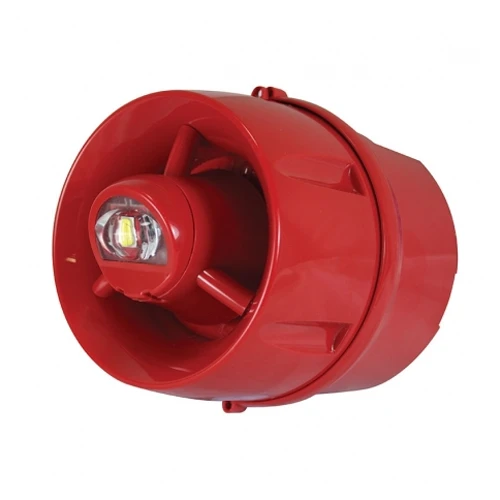

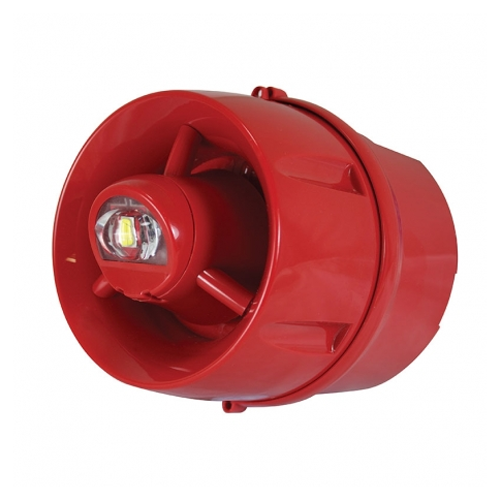

C-TEC CA433A/DR/65 CAST Red Hi-Output IP55 W-2.75-9 wall VAD 100dB Sounder cw Deep Base

The C-TEC CA433A/DR/65 is a red wall mounted high output addressable weatherproof wall VAD and sounder with deep base designed for use on C-TEC CAST protocol analogue addressable fire alarm systems.

• Approvals / certifications: LPCB certified to EN54-3, 17 & 23 and Kiwa Telefication to EN54-13

• Protocol / compatibility: Compatible with C-TEC's CAST protocol Addressable Fire Panels

• Application / operation: Designed to be wall mounted. IP55 rated and suitable for use outdoors

• VAD category & coverage:W-2.75-9 rated light distribution. Also certified as a W-4-4 rated VAD

• Flash rate & colour:0.5Hz / White

• Supply/operating voltage:27 to 40V DC

• Quiescent current:460A

• Nominal SPL (Sound Pressure Level):100dB(A) when set to tone 1

• Alarm current:13.5mA @ 27-40V (VAD lit, Sounder on max)

• Indicators : Polling (red LED)

• Product dimensions (mm): 114mm diameter x 131mm deep

• IP Rating:IP55 (Type B)

• Weight:315g

• Operating conditions/temperature:-10C to +55C. Max. 95% RH (Non-condensing)
