Code: FDS201/711
INC VAT
Code: FDS201/711

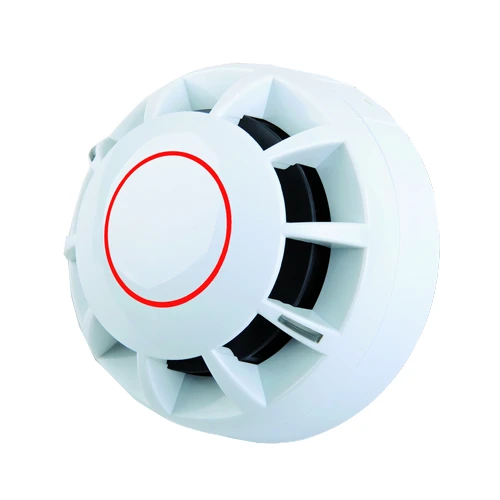

The C-TEC C4403A2 ActiV Fixed Temperature Heat Detector is a precision-engineered Type A2 device designed to trigger an alarm when a static temperature of 60°C is reached.
Ideal for environments where smoke detection is unsuitable, this unit provides dependable heat-based detection with minimal false alarms.
Manufactured in the UK by C-TEC, this detector is third-party certified to EN54-5 by Intertek and built to deliver consistent performance at a cost-effective price.
Operating from 6V to 33V DC, it suits a wide range of conventional fire alarm systems.
Equipped with dual ultra-bright 8mm x 2mm red LEDs, the detector offers 360° visibility, ensuring alarm status is clearly seen from any angle.
Compatible with ActiV C4408, C4408D, and C4408R bases (sold separately), it integrates seamlessly into your fire detection setup.
Fixed temperature detection – Type A2 heat detector activates at a static temperature of 60°C
Consistent performance – High-quality unit designed and manufactured in the UK
EN54-5 certified – Independently approved by Intertek for fire detection compliance
Wide voltage range – Operates between 6V and 33V DC for versatile installation
360° LED indication – Twin 8mm x 2mm red LEDs provide full visual coverage
Base compatibility – Works with ActiV C4408 (standard), C4408D (diode), and C4408R (relay) bases (sold separately)
Specification | Details |
---|---|
Approvals/Certifications | Certified to EN54-5 by Intertek |
Application/Operation | Triggers when temperature reaches between 54°C and 65°C |
Application Temperature | 25°C typical, 50°C max |
Static Response Temperature | 54°C min, 65°C max |
Supply Wiring | 2-wire monitored, polarity sensitive |
Supply/Operating Voltage | 9 to 33V DC |
Quiescent Current | 30μA @ 24 VDC |
Alarm Voltage | 6–33V DC |
Alarm Current | 19mA @ 12–33V DC; 11mA @ 9V DC; 2.5mA @ 6V DC |
Alarm Reset Voltage | Less than 1V DC (+0.5 seconds alarm reset time) |
Expansion Connections | Remote LED output via ActiV base. Current source to negative line, short-circuit protected. Max voltage 2.7V DC |
Product Dimensions (mm) | 102.2mm diameter x 37mm deep (detector in base); 102.2mm diameter x 57.5mm deep |
Construction & Finish | White polycarbonate casing rated to UL94 V-2 with nylon parts |
IP Rating | IP42 |
Weight | 99g |
