Astra LED Floodlight

Name: Astra LED Floodlight
SKU: FDS002/762
Price: 23.028 GBP
Availability: InStock

Code: FDS002/762

£23.03

INC VAT

Code: FDS002/762

Wattage

Available in 50W, 100W, 150W, 200W and 300W options
High lumen output up to 33,000 lumens
Dual voltage operation (110–240V) for site and mains use

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

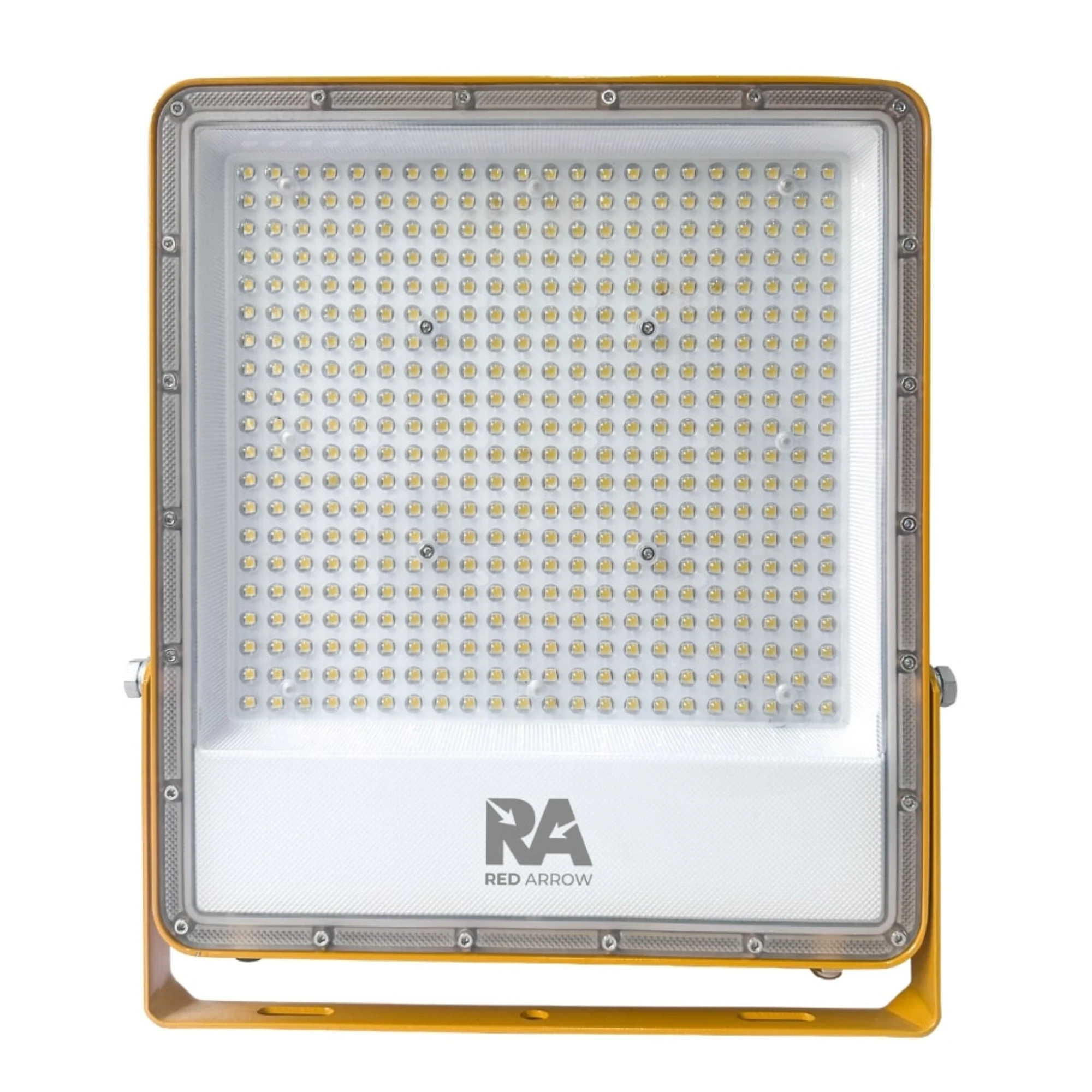

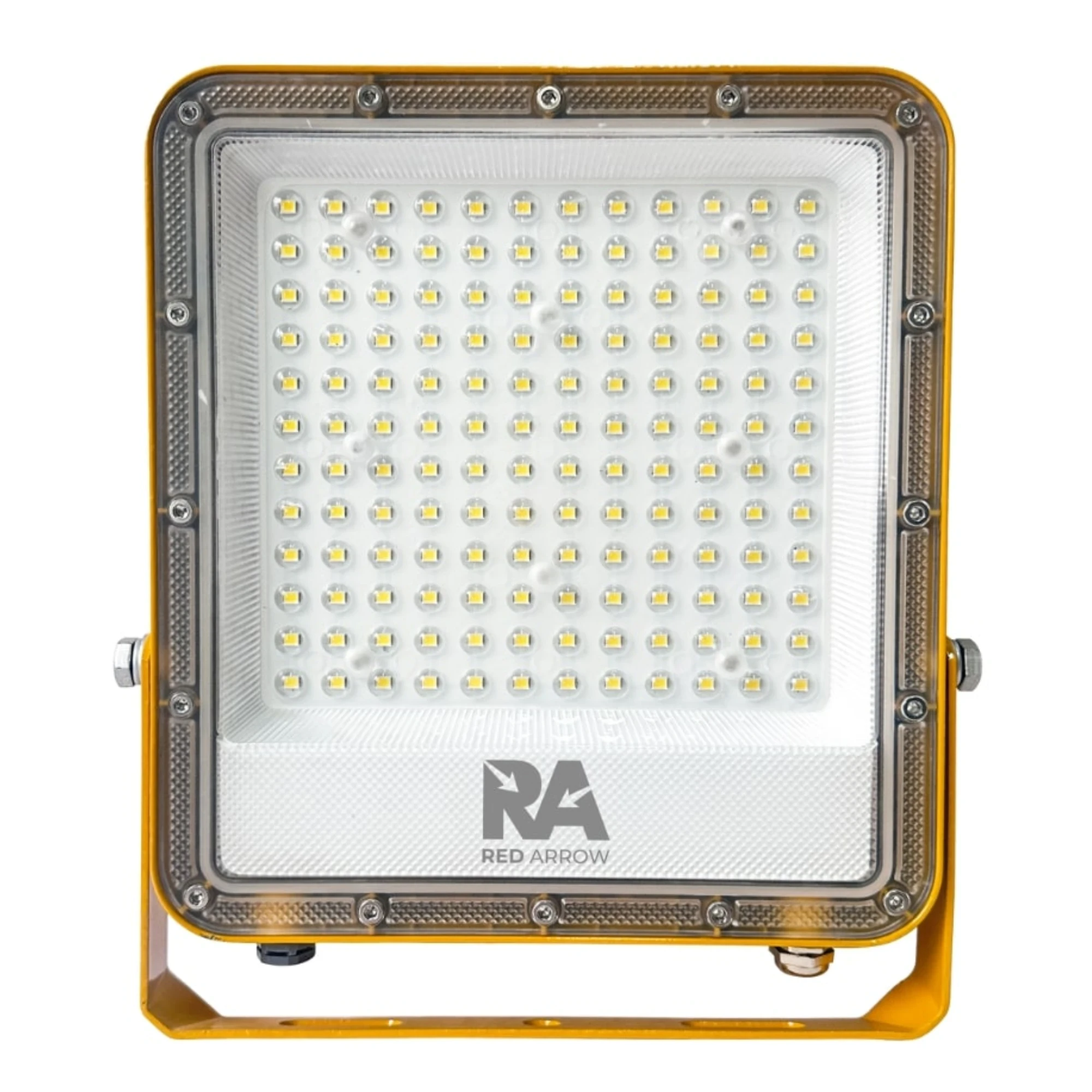

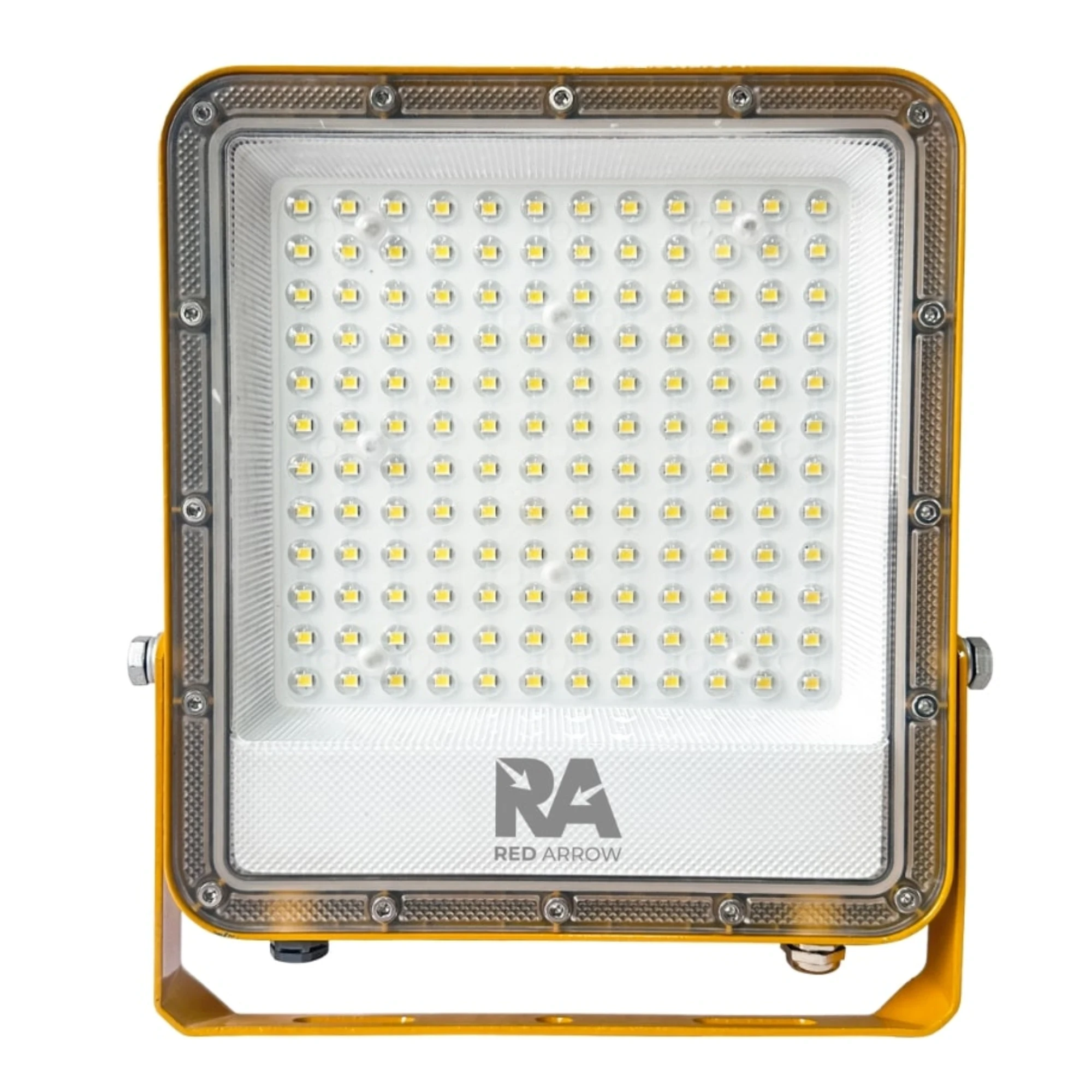

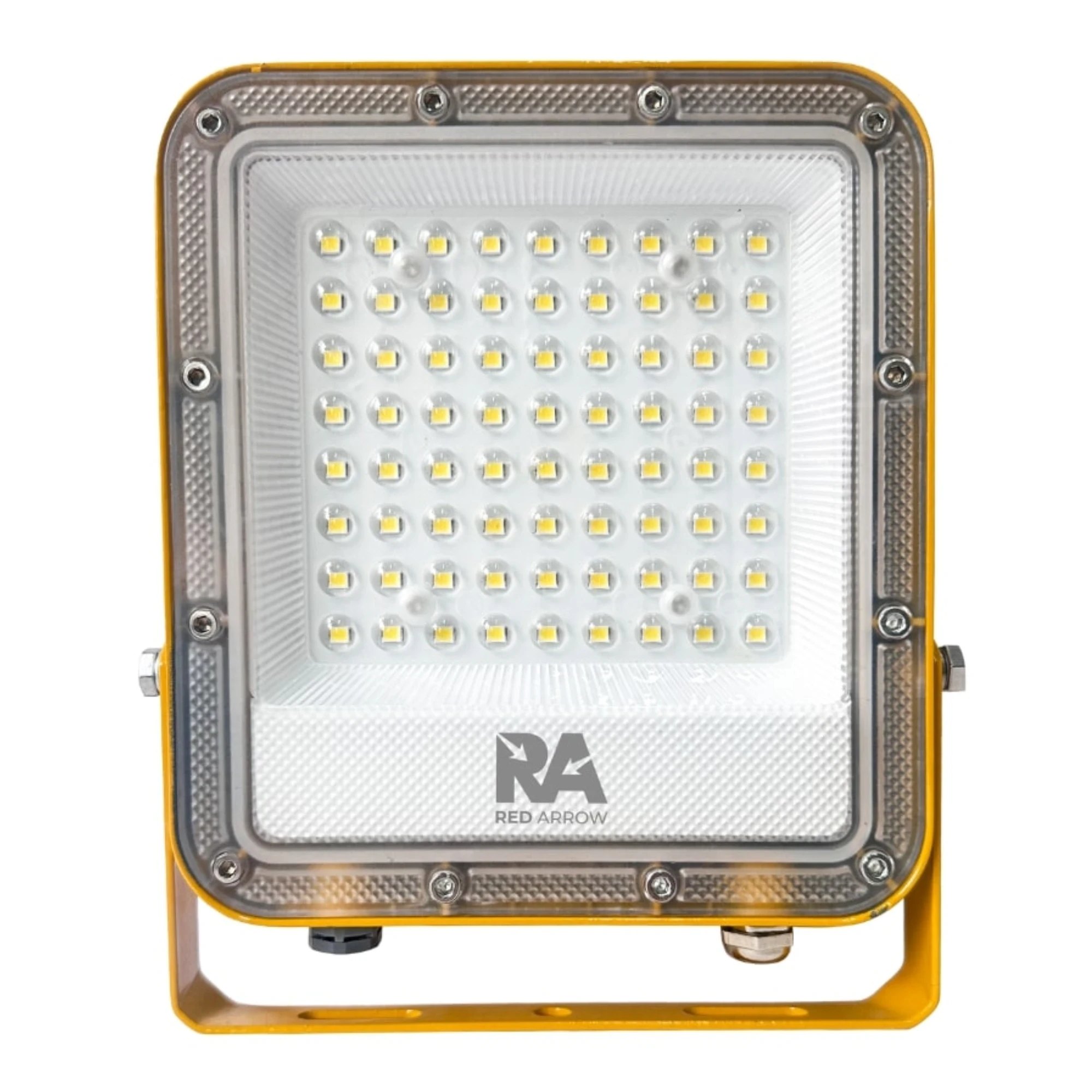

The Astra LED Floodlight range is a robust, dual voltage lighting solution designed for demanding site, commercial and industrial applications.

Available in 50W, 100W, 150W, 200W and 300W variants, the range delivers powerful illumination up to 33,000 lumens, making it suitable for large work areas, construction sites and external lighting projects.

Designed for flexibility, each unit operates across a 110–240V input and is supplied with a pre-wired cable and U-shaped mounting bracket, allowing for fast and straightforward installation.

Constructed with a durable aluminium body and polycarbonate diffuser, the floodlight is built to withstand tough environments, with an IP65 rating for weather protection and IK07 impact resistance.

Delivering a consistent 4000K neutral white output with a high efficacy of 110 lm/W, the Astra range provides energy-efficient performance without compromising on brightness.

With a slim, compact design and a distinctive yellow RAL1007 finish for site visibility, this range offers a practical and reliable lighting solution for a wide range of applications.

Available in 50W, 100W, 150W, 200W and 300W options
High lumen output up to 33,000 lumens
Dual voltage operation (110–240V) for site and mains use
Energy efficient performance at 110 lm/W
Supplied with pre-wired cable for quick installation
U-shaped mounting bracket for flexible positioning
IP65 rated for outdoor and site environments
IK07 impact resistance for durability
4000K neutral white light for clear visibility
Aluminium housing with polycarbonate diffuser
Fixed output driver for consistent performance
Yellow RAL1007 finish for high visibility on site
LED lifespan up to 50,000 hours
3-year warranty

Specification	50W Model	100W Model	150W Model	200W Model	300W Model
Product Code	ADVF50Y	ADVF100Y	ADVF150Y	ADVF200Y	ADVF300Y
Wattage	50W	100W	150W	200W	300W
Lumen Output	5500 lm	11000 lm	16500 lm	22000 lm	33000 lm
Efficacy	110 lm/W	110 lm/W	110 lm/W	110 lm/W	110 lm/W
Energy Class	E	E	E	E	E
Colour Temperature (CCT)	4000K	4000K	4000K	4000K	4000K
Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Colour Rendering (CRI)	Ra >80	Ra >80	Ra >80	Ra >80	Ra >80
Driver Type	Fixed Output	Fixed Output	Fixed Output	Fixed Output	Fixed Output
Colour Finish	Yellow (RAL1007)	Yellow (RAL1007)	Yellow (RAL1007)	Yellow (RAL1007)	Yellow (RAL1007)
Dimensions	180 x 165 x 25 mm	238 x 217 x 25 mm	296 x 270 x 25 mm	335 x 305 x 25 mm	378 x 345 x 30 mm
Net Weight	0.72 kg	1.06 kg	1.3 kg	1.76 kg	2.44 kg

Astra LED Floodlight Datasheet

Click here to download

Overview

Features

Technical Data

Specification	50W Model	100W Model	150W Model	200W Model	300W Model
Product Code	ADVF50Y	ADVF100Y	ADVF150Y	ADVF200Y	ADVF300Y
Wattage	50W	100W	150W	200W	300W
Lumen Output	5500 lm	11000 lm	16500 lm	22000 lm	33000 lm
Efficacy	110 lm/W	110 lm/W	110 lm/W	110 lm/W	110 lm/W
Energy Class	E	E	E	E	E
Colour Temperature (CCT)	4000K	4000K	4000K	4000K	4000K
Frequency	50/60Hz	50/60Hz	50/60Hz	50/60Hz	50/60Hz
Colour Rendering (CRI)	Ra >80	Ra >80	Ra >80	Ra >80	Ra >80
Driver Type	Fixed Output	Fixed Output	Fixed Output	Fixed Output	Fixed Output
Colour Finish	Yellow (RAL1007)	Yellow (RAL1007)	Yellow (RAL1007)	Yellow (RAL1007)	Yellow (RAL1007)
Dimensions	180 x 165 x 25 mm	238 x 217 x 25 mm	296 x 270 x 25 mm	335 x 305 x 25 mm	378 x 345 x 30 mm
Net Weight	0.72 kg	1.06 kg	1.3 kg	1.76 kg	2.44 kg
