Arrow Silver Overhead Hold Open/Swing Free Door Control

Name: Arrow Silver Overhead Hold Open/Swing Free Door Control
Brand: Arrow
Availability: InStock

Code: FDS002/880

Call to place order

Code: FDS002/880

Electromagnetic fire door closer with integrated hold-open or swing-free function
Dual functionality: door closer + electromagnetic door holder
Fixed power size EN 4 (EN 3 on push-side mounting)

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

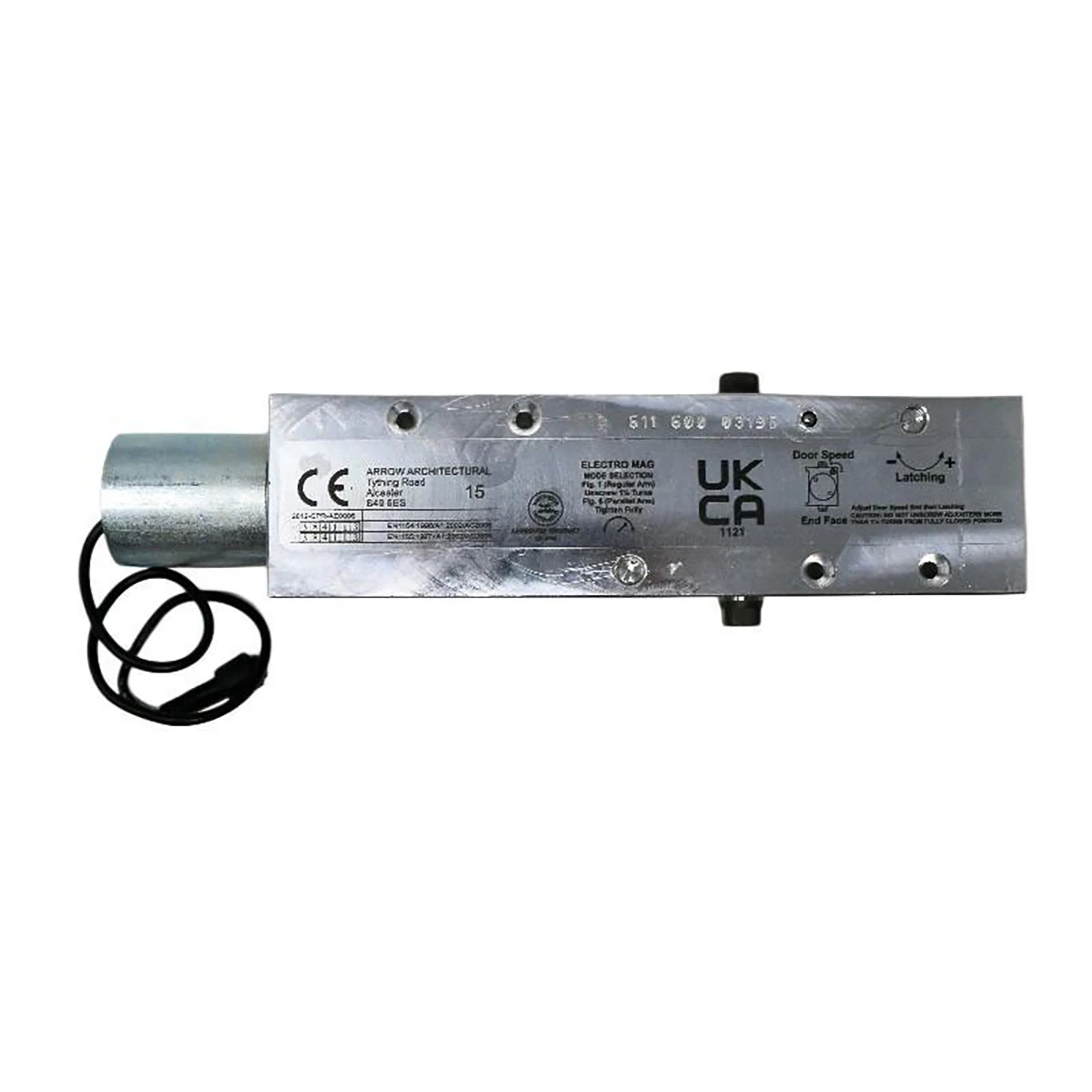

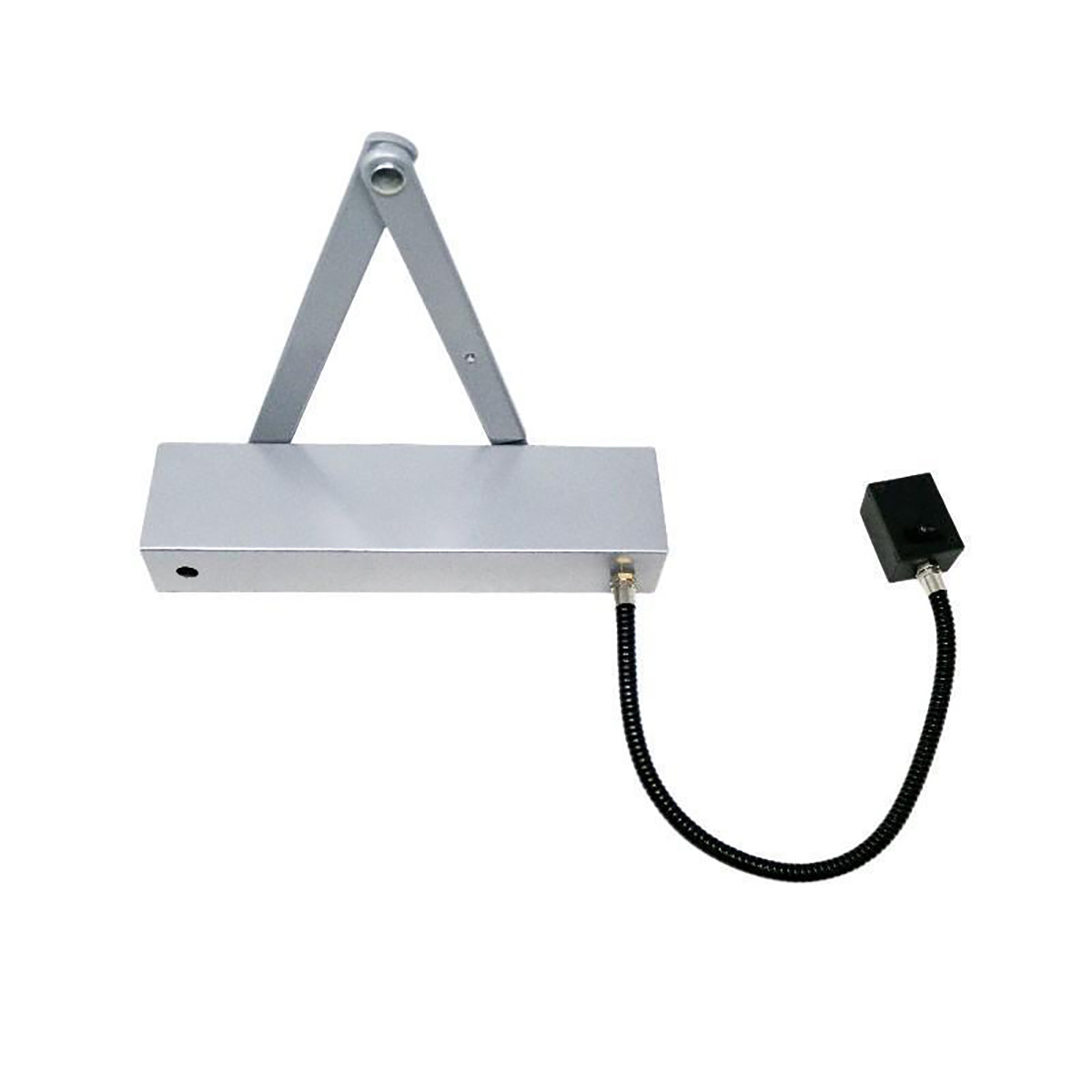

The Arrow 624 electromagnetic door closer is a high-performance solution for fire door compliance in commercial and public buildings.

Part of the trusted Arrow 600 Series, it combines controlled closing with hold open or swing free functionality, ensuring safety, accessibility, and ease of use.

Designed to connect directly to fire alarm systems, the unit holds doors open during normal operation and automatically releases on alarm or power failure, closing the door from any position to help contain fire and smoke.

Electromagnetic fire door closer with integrated hold-open or swing-free function
Dual functionality: door closer + electromagnetic door holder
Fixed power size EN 4 (EN 3 on push-side mounting)

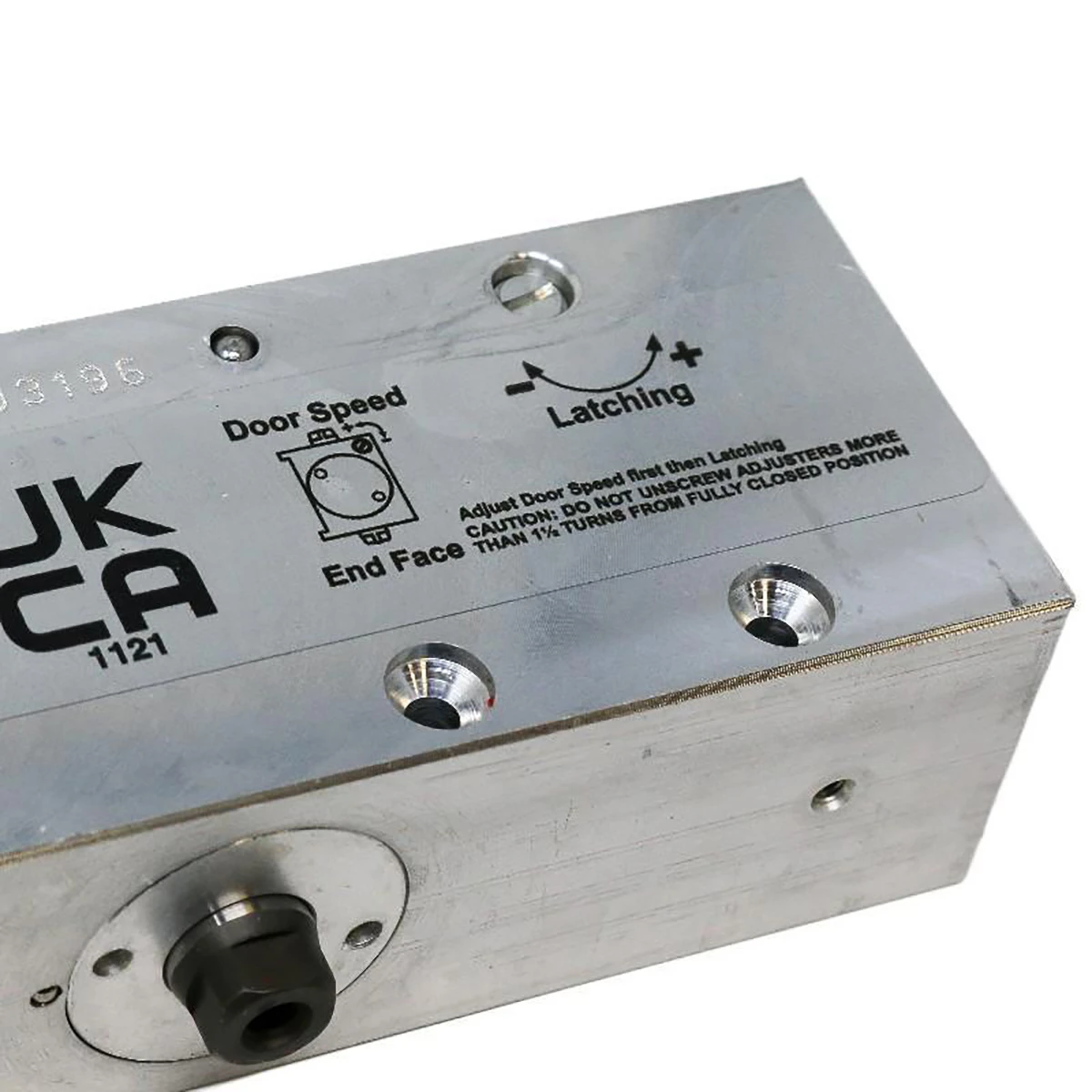

Adjustable closing speed and latching action
Hold open range from 80°
Max opening angle: 110° (pull side) / 170° (push side)
24V DC operation (85mA, 2W)
Plug-in cable loop for fast installation (updated design)
Universal installation: pull side, transom, and push side mounting
Choice of four finishes with matching arm

Fire Tested:	120 Minutes
Cover Options:	Available in Square or Flowline
Material:	British Extruded Aluminium and British Steel
Standards:	BS EN1155 (Electrical), BS EN 1154 (Mechanical), BS EN 1634 (Fire Test), BS 8300 (Ease of Access)

Technical Datasheet

Click here to download
