Code: FDS401/543
INC VAT
Code: FDS401/543

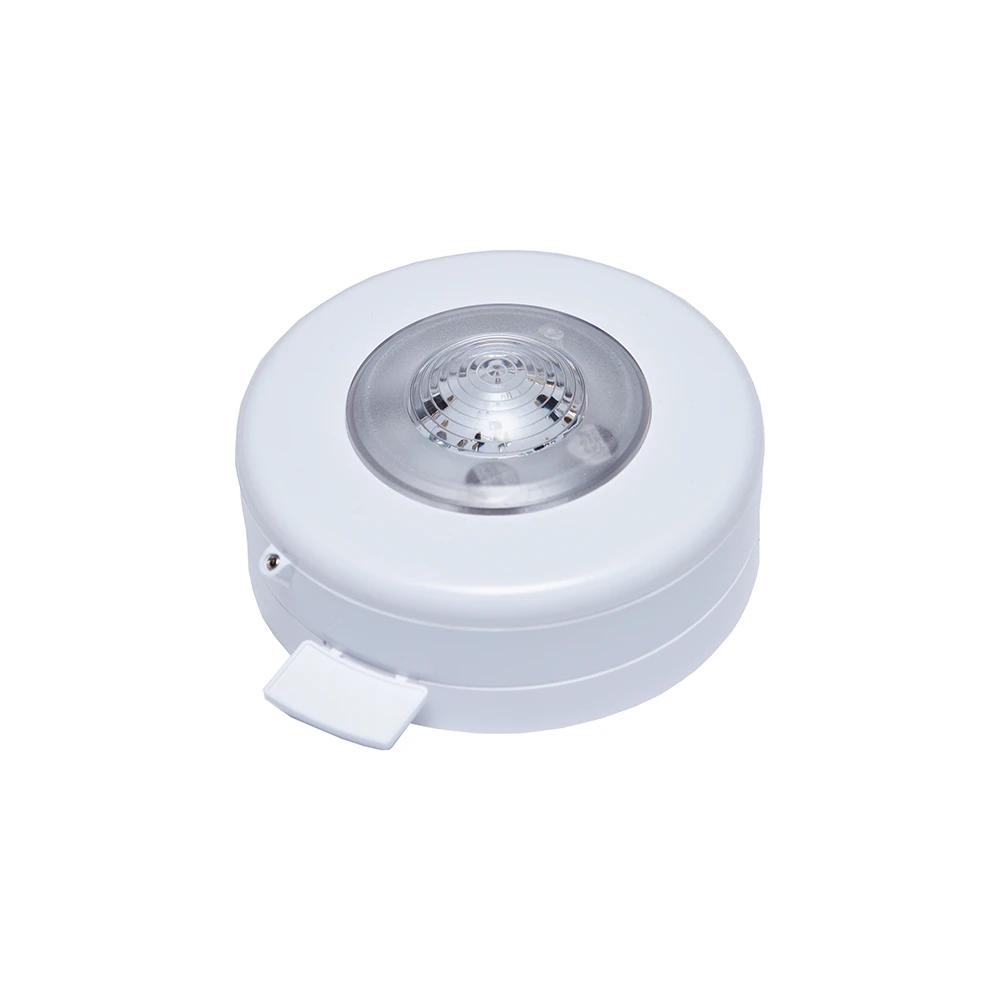

The Intelligent Open-Area VID is designed for use in open-areas and can be connected to any CoreProtocol, Discovery and XP95 system.
The Intelligent Open-Area VID includes features such as group, individual control and status reporting all configured through the fire control panel.
Software defined group addressing with up to 16 group addresses
Built-in controllable isolator
Variable flash rate (0.5 Hz or 1 Hz)
Available in red (SA5501-321APO) or white flash (SA5501-320APO)
Specification | Details |
---|---|
Conformance | |
Approvals | LPCB, CPR |
Electrical | |
Quiescent Current | 890μA |
Quiescent Current Tested At | 24V dc |
Supply Voltage (Min - Max) | 17 to 35V dc |
Supply Voltage (Min) | 17V dc |
Supply Voltage (Max) | 35V dc |
Mechanical | |
Product Depth | 33mm / 1.3in |
Product Diameter | 100mm / 3.94in |
Environmental | |
Humidity | 0% to 95% RH (no condensation or icing) |
Humidity (Min) | 0% RH |
Humidity (Max) | 95% RH |
Operating Temperature | -10 to 55°C / 14 to 131°F |
Operating Temperature (Min) | -10°C / 14°F |
Operating Temperature (Max) | 55°C / 131°F |
IP Rating | IP21C |
The Intelligent Open-Area VID is designed for use in open-areas and can be connected to any CoreProtocol, Discovery and XP95 system.
The Intelligent Open-Area VID includes features such as group, individual control and status reporting all configured through the fire control panel.
Software defined group addressing with up to 16 group addresses
Built-in controllable isolator
Variable flash rate (0.5 Hz or 1 Hz)
Available in red (SA5501-321APO) or white flash (SA5501-320APO)
Specification | Details |
---|---|
Conformance | |
Approvals | LPCB, CPR |
Electrical | |
Quiescent Current | 890μA |
Quiescent Current Tested At | 24V dc |
Supply Voltage (Min - Max) | 17 to 35V dc |
Supply Voltage (Min) | 17V dc |
Supply Voltage (Max) | 35V dc |
Mechanical | |
Product Depth | 33mm / 1.3in |
Product Diameter | 100mm / 3.94in |
Environmental | |
Humidity | 0% to 95% RH (no condensation or icing) |
Humidity (Min) | 0% RH |
Humidity (Max) | 95% RH |
Operating Temperature | -10 to 55°C / 14 to 131°F |
Operating Temperature (Min) | -10°C / 14°F |
Operating Temperature (Max) | 55°C / 131°F |
IP Rating | IP21C |
