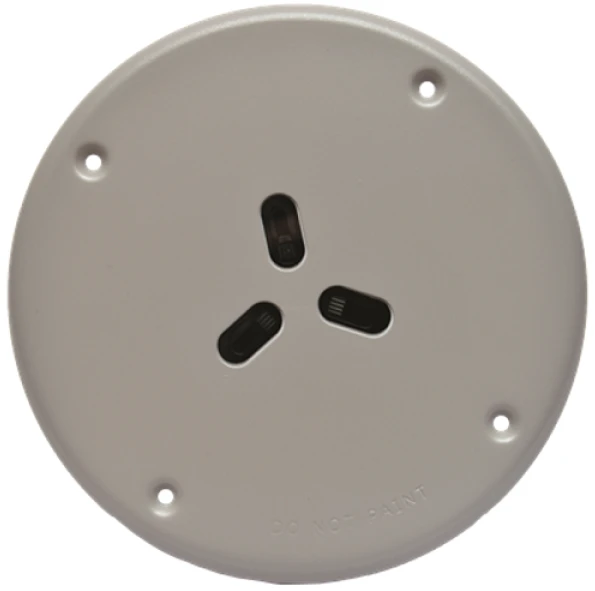

Apollo FL6100-600APO Soteria Dimension Specialist Optical Detector

The Soteria Dimension Specialist Optical Detector features two daylight-filtered photo-diodes and three IR emitters positioned at different angles. By combining these elements, it functions as both a smoke sensor and a proximity sensor, detecting smoke levels while monitoring for any physical interference with the detector.

Without a chamber, the detector uses an IR LED to emit light externally. Smoke scatters this light back to the photo-diode, allowing precise detection.

Two microprocessors manage the sensors, controlling timing and applying a digital phase-sensitive detection algorithm to minimize noise and background light interference. They also provide digital filtering to reject transients, compensate for drift and temperature, and ultimately make accurate alarm decisions.

• Slim, low-profile design

• Supports digital CoreProtocol communications

• Compatible with Discovery and XP95 systems

• Built-in switchable isolator

• 8-way DIL switch for easy addressing

• Automatic drift compensation

• FasTest technology for faster testing

• Tricolour LED for clear status indication

• Exceeds EN 54-7 and EN 54-17 standards through rigorous testing

• Durable metal faceplate secured with anti-tamper screws

• Designed to meet Ministry of Justice STD/E/SPEC/038 requirements

• Independently certified to DHF TS001 for anti-ligature use in specialist areas
