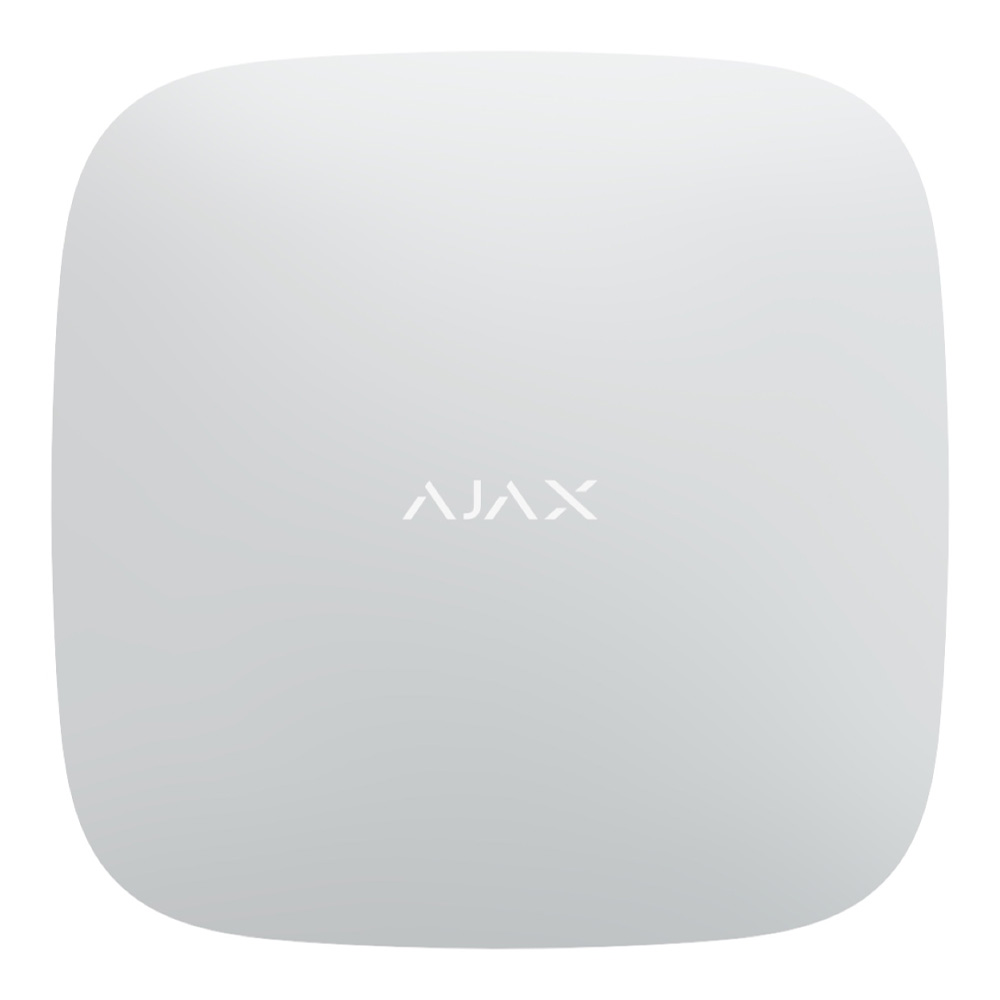

Ajax Baseline Hub 2 Wireless Control Panel (White)

The Ajax Baseline Hub 2 Wireless Control Panel (AJ-22920) is the central control unit for Ajax security systems, managing communication between connected devices, users and monitoring stations.

Supporting up to 100 wireless Ajax devices, the Hub 2 uses Ajax Jeweller and Wings communication technologies to deliver alarm events, system status updates and photo verification from compatible MotionCam detectors. The panel can support up to 50 users, 25 cameras or DVRs, 32 automation scenarios and 9 security groups.

For reliable connectivity, Hub 2 features three communication channels, including Ethernet and dual 2G SIM card support. The channels operate simultaneously with automatic switching between connections to help maintain communication with users and monitoring stations.

The system can be configured and managed remotely through Ajax apps, allowing users and installers to monitor system status, change settings and receive alarm notifications from anywhere with an internet connection.

A built-in backup battery provides up to 16 hours of operation during mains power failures, while tamper protection, encrypted communication and anti-jamming features help maintain system security. The Hub 2 also supports integration with third-party CCTV cameras and DVRs for a more comprehensive security solution.

• Ajax part code AJ-22920

• Supports up to 100 wireless Ajax devices

• Photo verification support via MotionCam detectors

• Ethernet and dual 2G SIM communication channels

• Jeweller and Wings wireless technologies

• Up to 2,000m Jeweller communication range

• Supports up to 50 users

• Supports up to 25 cameras or DVRs

• Built-in backup battery with up to 16 hours operation

• Compatible with monitoring stations using Contact ID, SIA and ADEMCO protocols
