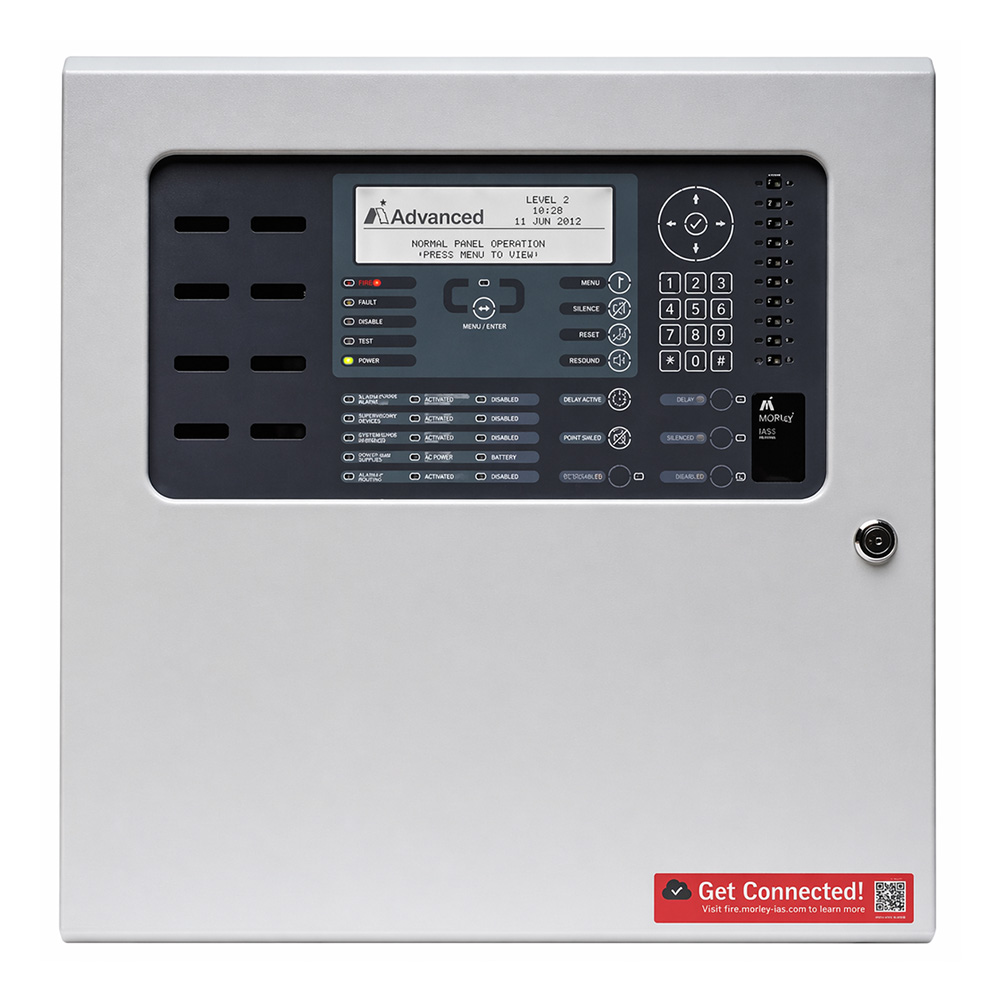

Advanced MX-5401D 1-4 Loop Fire Panel With 1 Loop Card - Deep Enclosure - Apollo/Hochiki Protocol

The Advanced MX-5401D is an MxPro 5 addressable fire alarm control panel supplied in a deep enclosure with 1 loop card fitted.

It is expandable from 1 to 4 loops and supports Apollo, Argus Vega, Hochiki and Nittan Evolution protocols.

The panel includes 4 on-board sounder circuits, 20 programmable zonal LEDs with slide-in labels and 25 system LEDs for clear status indication.

It also features 4 programmable function buttons with LED confirmation.

The high-resolution graphical LCD display and tactile keypad provide straightforward operation for both engineers and end users.

The MX-5401D supports cause and effect programming, enhanced trace diagnostics, auto-learn, loop detection and on-board scope tools to assist with commissioning and fault finding.

Programming can be completed on site using the built-in keypad or via Advanced’s PC-Net configuration software.

Networking can be added using an optional network card, allowing the panel to communicate with other MxPro 5 or MxPro 4 panels, remote terminals and network peripherals.

• MxPro 5 addressable fire alarm control panel

• Supplied with 1 loop card

• Expandable from 1 to 4 loops

• Deep enclosure

• Apollo, Argus Vega, Hochiki and Nittan Evolution protocol support

• 4 on-board sounder circuits

• 20 programmable zonal LEDs

• 25 system LEDs

• 4 programmable function buttons with LED indication

• High-resolution graphical LCD display

• Tactile keypad for simple operation

• Cause and effect programming

• Enhanced trace diagnostics

• Auto-learn and loop detection

• On-board scope facility

• Dedicated USB and RS232 serial ports

• Integral P-Bus for expansion via option cards

• Optional Ad-NeT peer-to-peer networking

• Supports up to 200 fire zones by default

• Approved to BS EN54 Parts 2, 4 and 13
