Advanced Fault Tolerant 2-8 Loop MxPro5 Panel with 2 Loop Cards MX-5802/FT (Apollo / Hochiki Protocol)

Name: Advanced Fault Tolerant 2-8 Loop MxPro5 Panel with 2 Loop Cards MX-5802/FT (Apollo / Hochiki Protocol)
Brand: Advanced-electronics
Price: 5522.52 GBP
Availability: InStock

Code: FDS002/873

£5,522.52

INC VAT

Code: FDS002/873

Fault-tolerant MxPro 5 addressable fire alarm panel
Supplied with 2 loop cards
Expandable from 2 to 8 loops

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

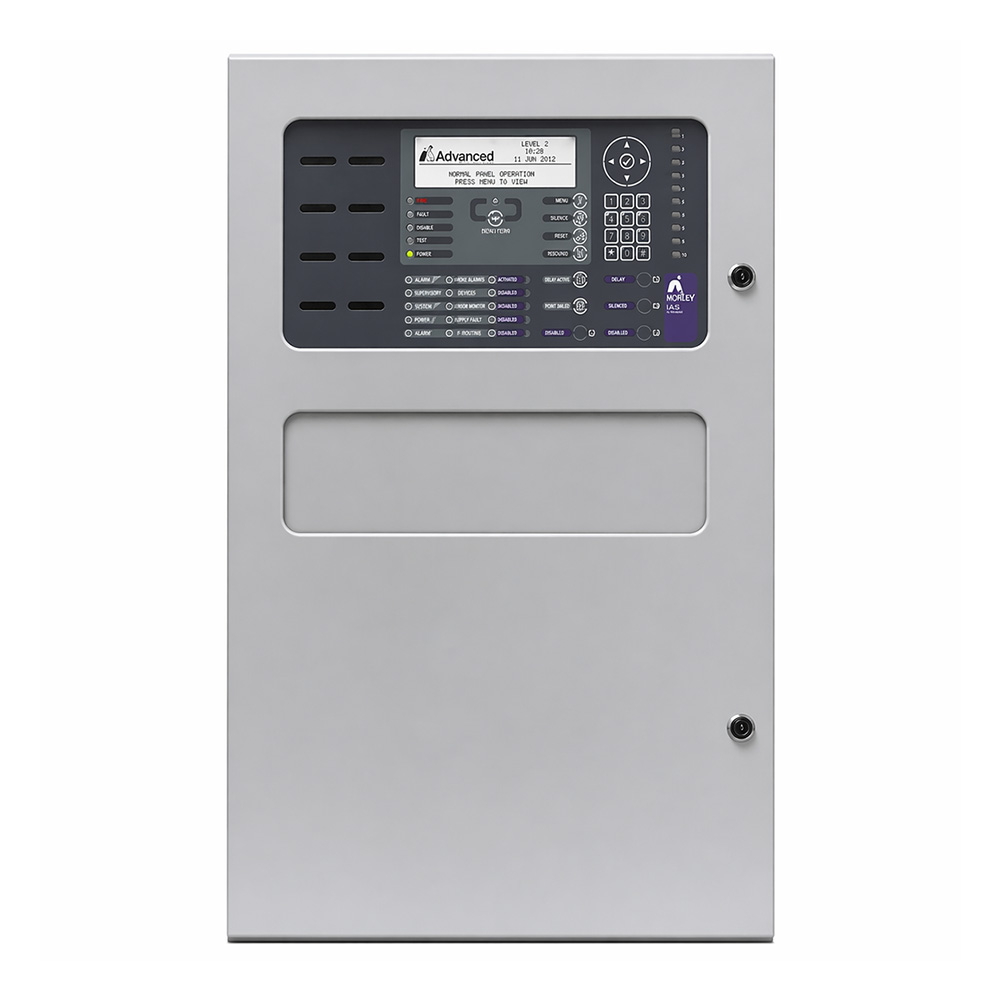

The Advanced MX-5802/FT is a fault-tolerant MxPro 5 addressable fire alarm control panel supplied with 2 loop cards fitted.

It is expandable from 2 to 8 loops using plug-in loop driver boards and supports Apollo and Hochiki protocol devices.

The panel includes 8 on-board sounder circuits, 20 programmable zonal LEDs with slide-in labels and 25 system LEDs for clear system status indication.

It also features 8 programmable function buttons with LED confirmation.

The graphical LCD display and tactile keypad provide straightforward operation for engineers and end users.

The MX-5802/FT supports cause and effect programming, dynamic zoning, trace diagnostics, auto-learn, loop detection and an on-board scope facility to assist with commissioning and fault finding.

Programming can be carried out from the on-board alphanumeric keypad or through compatible PC configuration tools.

A removable equipment chassis with plug-in connectors helps simplify fixing and cable termination.

The panel includes a 2 x 5A power supply and charger to EN54 Part 4.

Networking can be added using an optional network card, allowing communication with other MxPro 5 or MxPro 4 panels, remote terminals and network peripherals.

Fault-tolerant MxPro 5 addressable fire alarm panel
Supplied with 2 loop cards
Expandable from 2 to 8 loops
Apollo and Hochiki protocol support
8 on-board sounder circuits
20 programmable zonal LEDs
25 system LEDs
8 programmable function buttons with LED indication
Graphical LCD display and tactile keypad
Supports up to 200 fire zones by default
Cause and effect programming
Dynamic zoning
Trace diagnostics
Auto-learn and loop detection
On-board scope facility
USB and RS232 serial ports
PC or keypad programming
Removable chassis with plug-in connectors
2 x 5A power supply and charger to EN54 Part 4
Integral P-Bus for expansion via option cards
Optional Ad-NeT peer-to-peer networking up to 2000 zones

Specification	Details
Base technology	Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets
Display	White backlit 240 x 64 graphical LCD (5.5 inches x 2.5 inches)
LED indicators	22 total, 1 x Fire, 1 x More Alarms, 20 x Zonal programmable, 1 x green Power, 13 x amber and 7 bi-colour
Controls	Alphanumeric keypad for navigation, reset, mute, silence, resound, evacuate, plus 4 programmable push buttons
Protocols	Apollo (Soteria, XP95, Discovery), Hochiki ESP, Argus Vega and Nittan Evolution
Number of fire zones	2000 (400 max across 8 loops)
Number of loops	Dedicated 2–8 loop control panel
Devices per loop	Protocol dependent
Loop current	500mA max per loop
On-board sounder circuits	8 x 1 Amp programmable
On-board relays	4 x 1 Amp 30V AC/DC programmable (expandable to 8 using 2 x MXP-507)
Auxiliary supply	2 x 24V 500mA
Programmable input	2 x on-board programmable inputs
Programmable key switch inputs	16 volt free digital inputs
Total available output current	2 x 5A maximum for loop current, sounder outputs and auxiliary supply
Mains supply	200–240V AC 47–63 Hz (+10%, -15% tolerance), 1.4A max
Charger current	2 x 2.0A temperature compensated
Ethernet port	10-Base-T, 100-Base-T, AdvancedLive connectivity (UK & I only)
Serial ports	2 x on-board RS232 for PC, modem, IP or portable printer
USB interface	2 x USB B type for PC communication
Programming	On-board keypad or PC running Windows tools
Event log	2 x 5000 event and diagnostic entries plus 500 fire events
Enclosure / colour	Steel IP30, RAL7035
Operating temperature	-5°C to +40°C
Humidity	95% max
Metalwork options	Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount

Advanced MX-5802/FT Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Base technology	Dual flash-based processors with real-time clock, trace diagnostics, programmable languages and character sets
Display	White backlit 240 x 64 graphical LCD (5.5 inches x 2.5 inches)
LED indicators	22 total, 1 x Fire, 1 x More Alarms, 20 x Zonal programmable, 1 x green Power, 13 x amber and 7 bi-colour
Controls	Alphanumeric keypad for navigation, reset, mute, silence, resound, evacuate, plus 4 programmable push buttons
Protocols	Apollo (Soteria, XP95, Discovery), Hochiki ESP, Argus Vega and Nittan Evolution
Number of fire zones	2000 (400 max across 8 loops)
Number of loops	Dedicated 2–8 loop control panel
Devices per loop	Protocol dependent
Loop current	500mA max per loop
On-board sounder circuits	8 x 1 Amp programmable
On-board relays	4 x 1 Amp 30V AC/DC programmable (expandable to 8 using 2 x MXP-507)
Auxiliary supply	2 x 24V 500mA
Programmable input	2 x on-board programmable inputs
Programmable key switch inputs	16 volt free digital inputs
Total available output current	2 x 5A maximum for loop current, sounder outputs and auxiliary supply
Mains supply	200–240V AC 47–63 Hz (+10%, -15% tolerance), 1.4A max
Charger current	2 x 2.0A temperature compensated
Ethernet port	10-Base-T, 100-Base-T, AdvancedLive connectivity (UK & I only)
Serial ports	2 x on-board RS232 for PC, modem, IP or portable printer
USB interface	2 x USB B type for PC communication
Programming	On-board keypad or PC running Windows tools
Event log	2 x 5000 event and diagnostic entries plus 500 fire events
Enclosure / colour	Steel IP30, RAL7035
Operating temperature	-5°C to +40°C
Humidity	95% max
Metalwork options	Flushing bezel, battery box, utility enclosure, termination enclosure and rack mount
