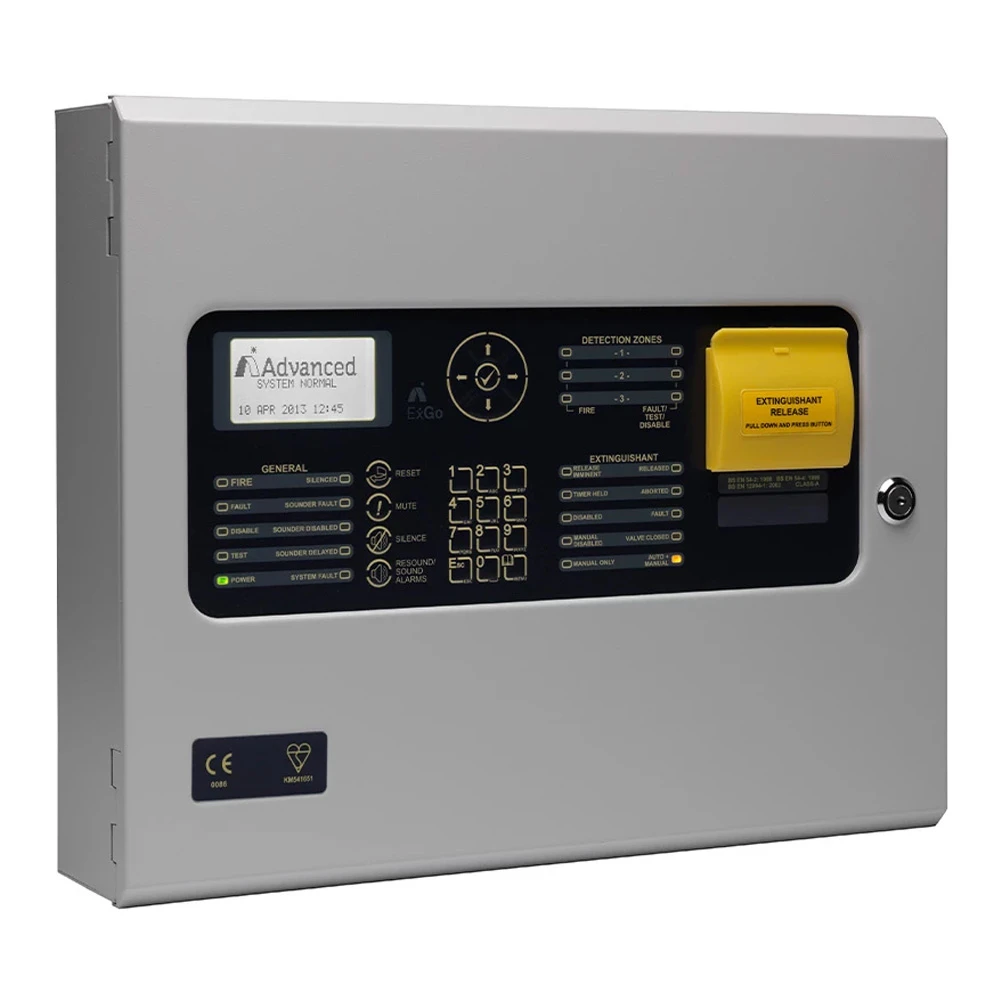

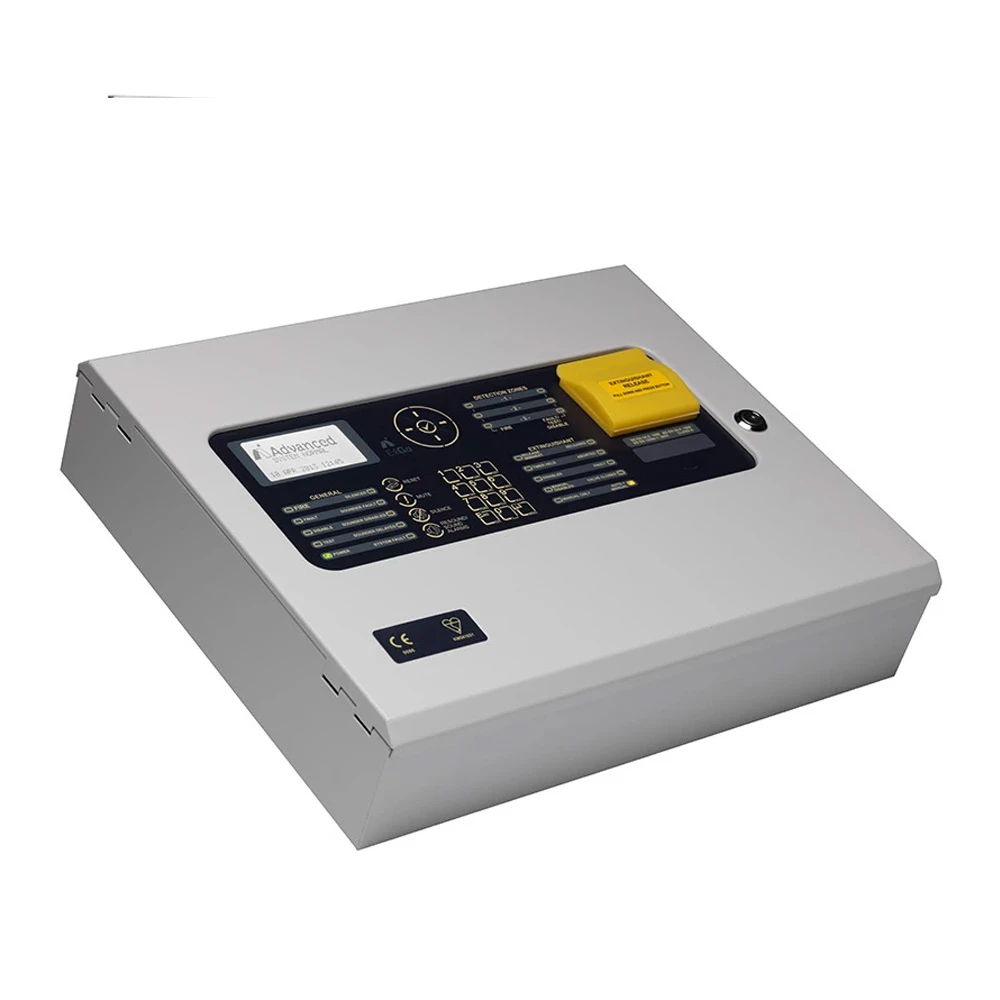

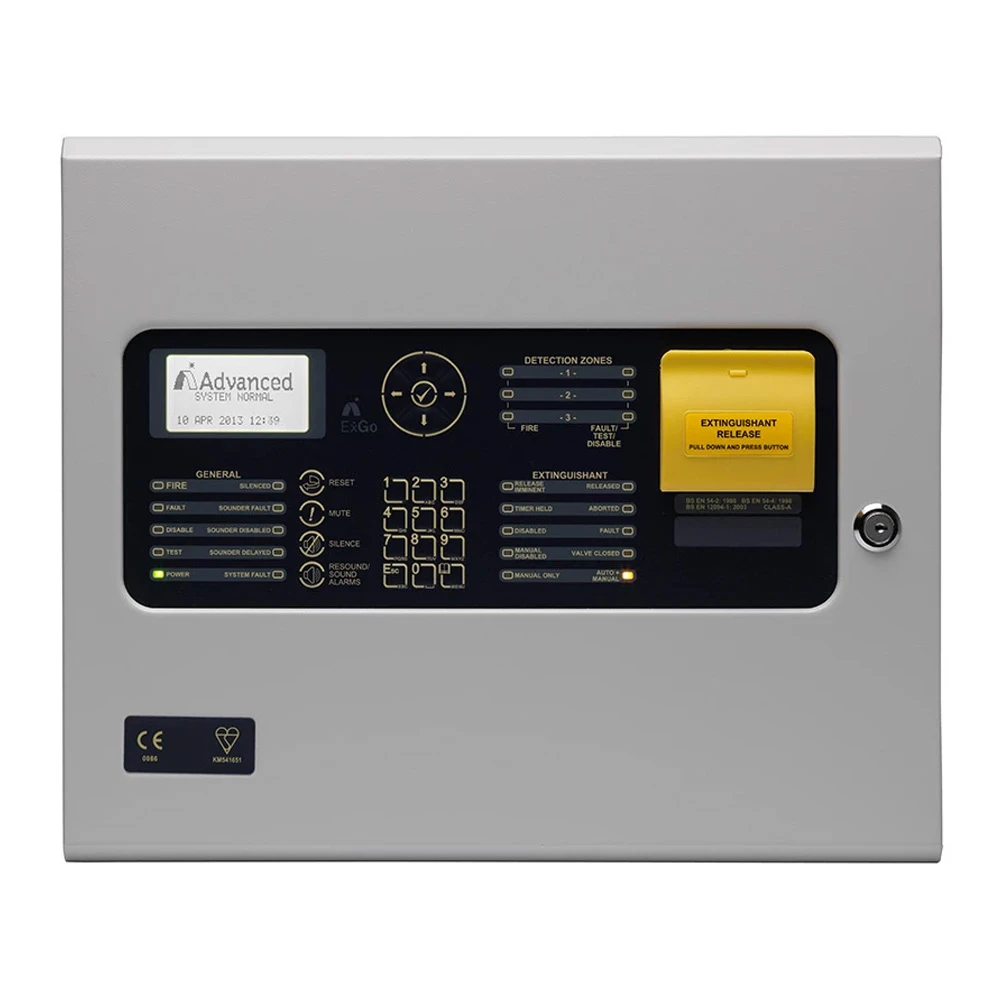

Advanced EX-3001 Extinguishing Control Panel, 3 Detection Zones & Single Release Output

The Advanced EX-3001 ExGo Extinguishing Control Panel is a dedicated extinguishing system control panel designed for applications requiring automatic fire detection and controlled extinguishing agent release.

Approved to EN12094-1 and EN54 Parts 2 and 4, the EX-3001 combines fire detection, alarm management and extinguishing control within a single panel.

The system operates in a similar way to a conventional fire alarm system but includes dedicated functionality to control the release of extinguishing agents such as CO₂ and other specialist suppression gases.

Featuring three detection zones and a single release output, the panel is suitable for protecting high-value assets and critical infrastructure where water-based fire suppression may be unsuitable. Typical applications include server rooms, data centres, telecommunications facilities, switch rooms and other business-critical environments.

A graphical LCD display provides clear system information and programming access, while passcode-controlled Level 2 access removes the need for physical keys. Additional features such as a time and date-stamped event log, improved diagnostics and USB connectivity help simplify commissioning, maintenance and fault finding.

The panel also supports remote status indication via RS485 connectivity and allows a company logo to be displayed during normal operation.

• 3 detection zones

• Single extinguishing release output

• Approved to EN12094-1

• Approved to EN54 Parts 2 and 4

• Graphical LCD display

• Multi-language interface

• Passcode-controlled Level 2 access

• Time and date-stamped event log

• Enhanced diagnostics functionality

• RS485 support for remote status indicators

• USB connection for PC download tools

• 3-year manufacturer warranty
