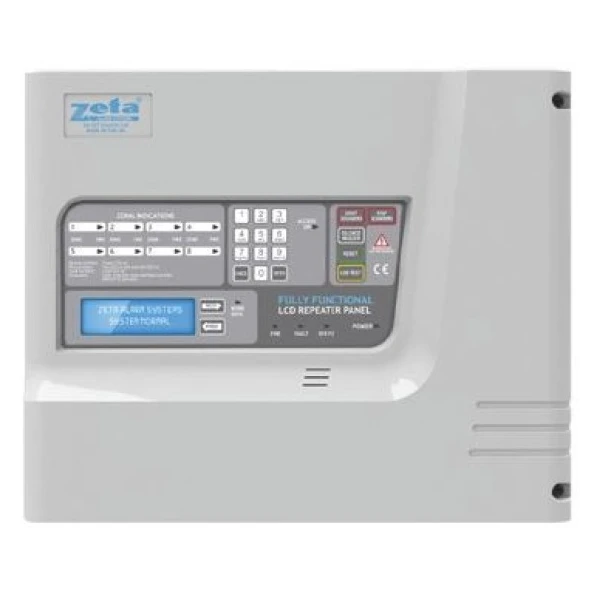

Zeta ID2/REP Black Infinity ID2 Intelligent Bi-Wire Full Function Repeater

Zeta Alarm Systems introduces one of the most advanced 2-wire fire alarm systems available today. This 2-wire system delivers all the key advantages of 2-wire installation, including: reduced cabling, faster fitting, and lower labour and material costs, while also providing full device identification capability.

Built on Zeta’s proven communication protocol and sharing the same platform as their flagship high-performance systems, the Infinity ID2 range combines reliability with advanced functionality. This makes it an ideal solution for new installations, retrofitting existing conventional systems, or upgrading older 2-wire systems when enhanced features are required.

Thanks to its radial circuit design, Infinity ID2 allows devices to be individually identified without the need for rewiring, making system upgrades simple and cost-effective.

The Infinity ID2 Full Function Repeater Panel offers flexible operation and can be configured as either fully functional (allowing silence and reset) or passive (displaying alarm information only). It features zonal LED indicators and a clear LCD display for easy system monitoring. Connection requires four cores from the ID2 control panel (two data and two power), with power supplied via the 24V auxiliary PSU within the main ID2 panel.

• The system meets the full requirements of BSEN5839 parts 1 and 6.

• The control panel has been designed to meet EN54 parts 2 and 4.

• Each device can be uniquely identified by the panel

• Device Count Verification

• Alarm Verification

• 2048 Event History

• ID2 Smartphone App available for iOS and Android

• Cable Break protection

• Cable Short Circuit Protection

• Includes zonal LEDs and LCD display

• 4 cores required from ID2 panel (2 data + 2 power)

• Can powered from 24V auxiliary PSU in the ID2 panel
