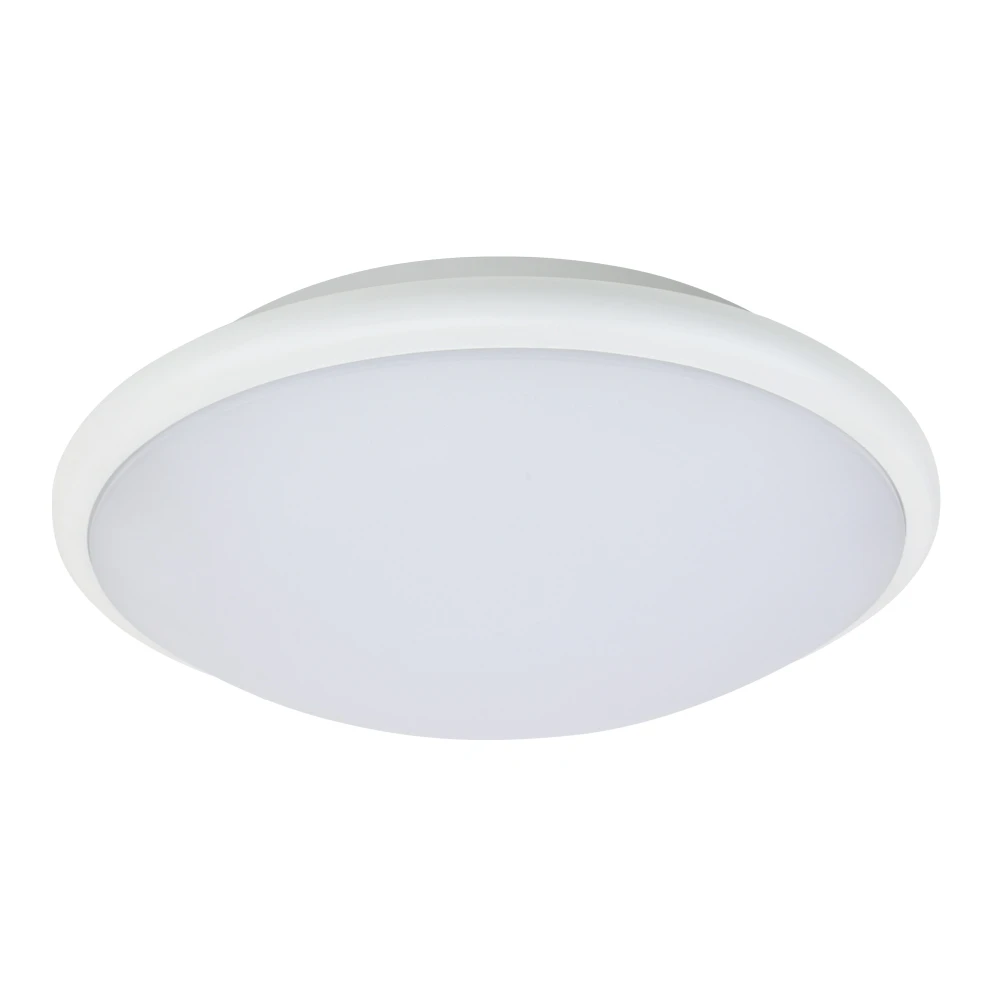

Wilson X Evolution Slim LED Circular Bulkhead

Name: Wilson X Evolution Slim LED Circular Bulkhead
SKU: FDS002/263
Availability: InStock

Code:

Call to place order

INC VAT

Code:

Model

In stock
Typically dispatched in 2-5 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Wilson X EVO LED Bulkhead is the next-generation model of the popular Wilson X range, offering a slim steel design with advanced performance and installer-friendly features.

With selectable wattage (16W, 21W, 25W, or 30W) and colour temperature options (3000K, 4000K, or 6000K), this fitting provides complete flexibility across a wide range of applications.

Designed for stairwells, corridors and high-output environments, the Wilson X EVO supports Plug & Play Emergency and Microwave Sensor modules, making it ideal for both retrofit and new installations.

Slim steel profile with side and top conduit entry
Selectable wattage: 16W / 21W / 25W / 30W
Selectable colour temperature: 3000K / 4000K / 6000K
High efficacy of 120 lm/W
Plug & Play emergency and microwave sensor compatibility
Robust construction for commercial and circulation areas
IP20 & IK04 rated
LED life expectancy of 40,000 hours (L80B50)
Power factor >0.9 for energy efficiency
UKCA & CE approved

Specification	Detail
Product Code	WLX30EVO-CCT
Wattage	16W / 21W / 25W / 30W
Lumen Output	2000 lm – 3600 lm
Efficacy	120 lm/W
Energy Class	C
Emergency Lumen Output	250 lm
Colour Appearance (CCT)	3000K / 4000K / 6000K
Frequency	50 Hz
Colour Rendition (CRI)	Ra >80
Driver Type	Selectable Power
Colour Finish	White RAL9010
Warranty	5 years

Wilson X Evolution LED Circular Bulkhead Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Detail
Product Code	WLX30EVO-CCT
Wattage	16W / 21W / 25W / 30W
Lumen Output	2000 lm – 3600 lm
Efficacy	120 lm/W
Energy Class	C
Emergency Lumen Output	250 lm
Colour Appearance (CCT)	3000K / 4000K / 6000K
Frequency	50 Hz
Colour Rendition (CRI)	Ra >80
Driver Type	Selectable Power
Colour Finish	White RAL9010
Warranty	5 years
