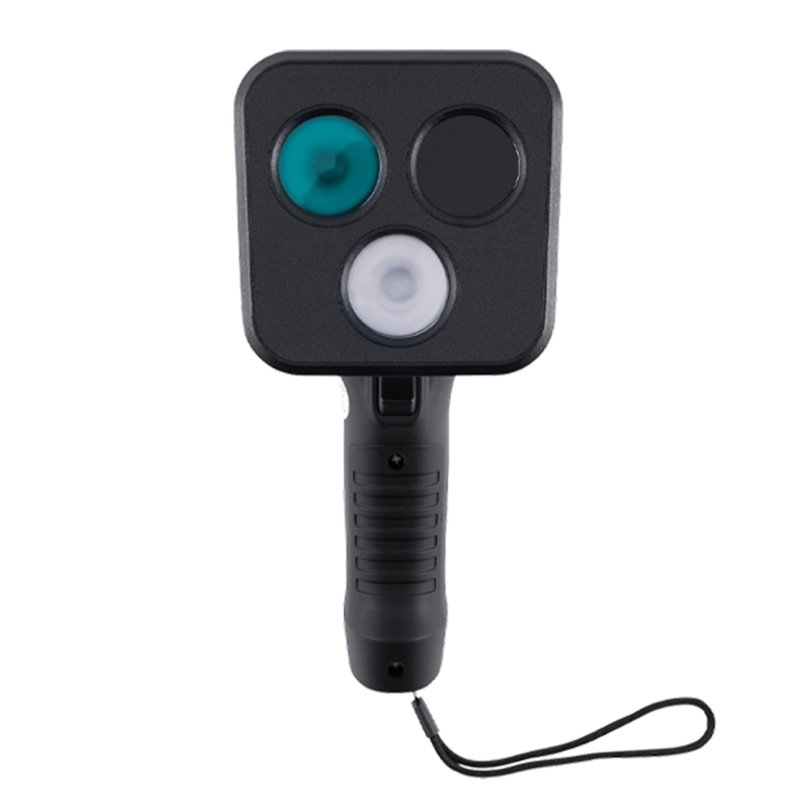

Talentum TT2 1800-101 Universal Flame Test Torch

The Talentum 1800-101 Test Torch is a portable testing and calibration device designed for use with the full range of Talentum flame detectors.

It allows engineers to functionally test compatible detectors from distances of up to 6 metres, reducing the need for access equipment in many applications and enabling testing from ground level.

Using an intuitive menu system, the Test Torch recreates the characteristic spectrum of a flame through a combination of UV and IR light sources. Simply select the detector type, aim the unit and initiate the test to verify detector operation.

Powered by an integral rechargeable lithium-ion battery, the Test Torch charges via a USB Type-C connection and supports up to 40 tests of 30 seconds each per charge. A calibration record capacity of up to 1,024 events provides useful maintenance documentation for engineers and service providers.

• Designed for Talentum UV, UV/IR, UV/IR2 and IR3 flame detectors

• Functional testing from up to 6 metres away

• Recreates flame signatures using UV and IR bulbs

• Supports field calibration with optional calibration kit

• Up to 40 tests of 30 seconds per charge

• Rechargeable lithium-ion battery

• USB Type-C charging and data connection

• Calibration record storage for up to 1,024 calibrations

• Suitable for commissioning and maintenance activities

• Portable handheld design
