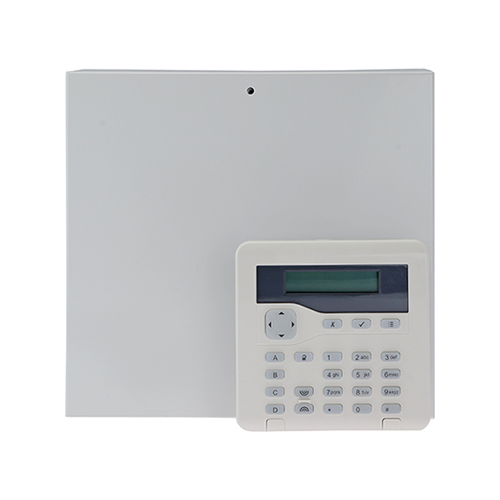

Scantronic PAN-10W-K 10 Zone Wired Panel With Keypad

The Scantronic PAN-10W-K is a 10 zone wired intruder alarm control panel supplied with a keypad, designed for simple and reliable security installations in residential and small commercial properties.

This bells-only (audible alarm) intruder alarm panel is ideal for entry-level burglar alarm systems, providing dependable protection while remaining straightforward to install and operate. As part of the Scantronic i-on family, the panel uses the same menu-driven programming structure, making system setup quick and reducing the likelihood of programming errors.

The system supports up to ten users and can be expanded with up to four compatible keypads via the performance bus, allowing flexible control from multiple locations. Installers also benefit from preconfigured zone types, system options and part sets which simplify commissioning.

Suitable for homes, small offices and retail environments, the PAN-10W-K offers a practical and cost-effective wired intruder alarm solution.

• Ten zones

• 10 user codes

• PAN-10W-K

• Uses same programming menus as the i-on range

• EN50131 PD6662:2017 Grade 2

• Non expandable

• 239mm (h) x 250mm (w) x 90mm (d)

• 2.8kg - panel without battery

• Temperature range: Environmental class 2 -10C to 55C 93% RH
