Power Supply Unit (PSU) Monitor

Real-time display and monitoring of voltage, current, impedance & faults on Dycon D2431, D2433 & D2435 24VDC power supply units.

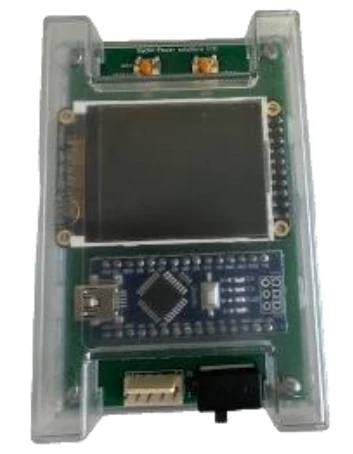

Many of today’s corporate operations increasingly rely on critical infrastructure resilience solution hardware to keep their business and premises safe and functioning, this can be compromised if the power that they require to operate these systems fails. Dycon’s PSUMON-01 provides a simple way of providing advance notice of impending and actual on-site problems by constantly monitoring how any connected Dycon D243X-series 24VDC PSU is operating.

The unit simply plugs into the D234X PSU’s on-board data-port socket, while connected, the display shows, in real time, all the operational data, without the need for multi meters. A selectable fast-scan mode shows even the smallest changes in milli volts and milli-amperes, any fault messages are displayed in red. Batteries are independently monitored and the precise measurement also shows bad battery connections. The charging voltage and current depends on the battery temperature and the smart charging of the D243X series is clearly shown on the display.

The built in impedance tester in the D243X PSU shows the battery status The real time data also provides all the information on a single screen to ensure that the correct battery and amperage is installed to meet the EN54-4 standards on battery backup and re-charging times.
