Mini Wilson LED Circular Bulkhead

Name: Mini Wilson LED Circular Bulkhead
SKU: FDS002/267
Availability: InStock

Code:

Call to place order

INC VAT

Code:

Model

In stock
Typically dispatched in 2-5 working days

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

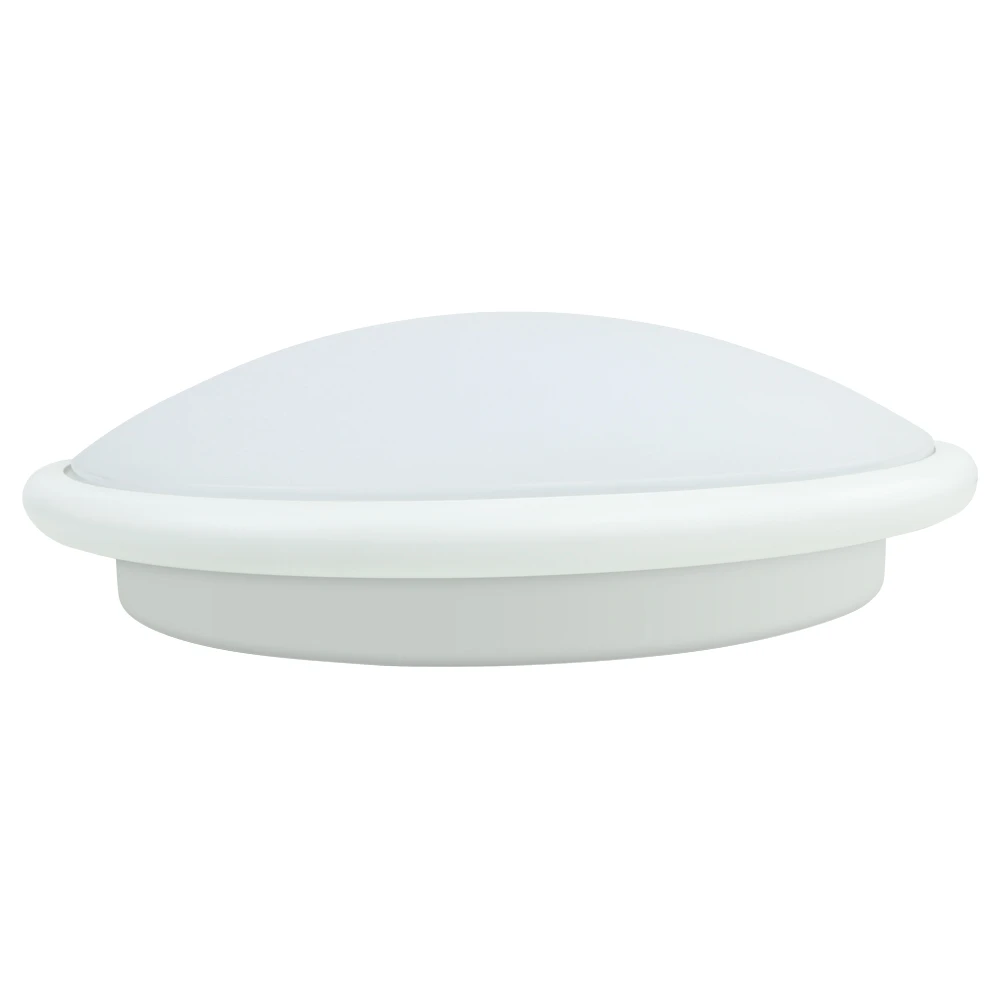

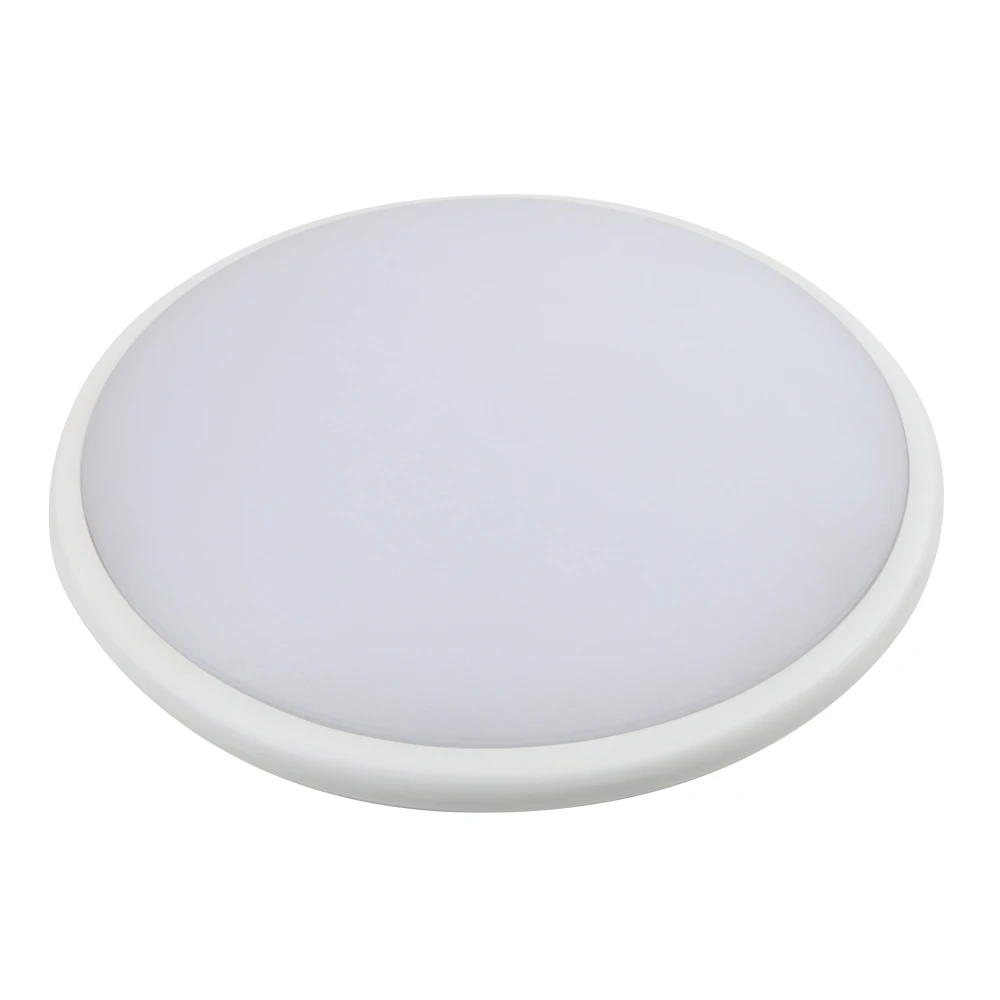

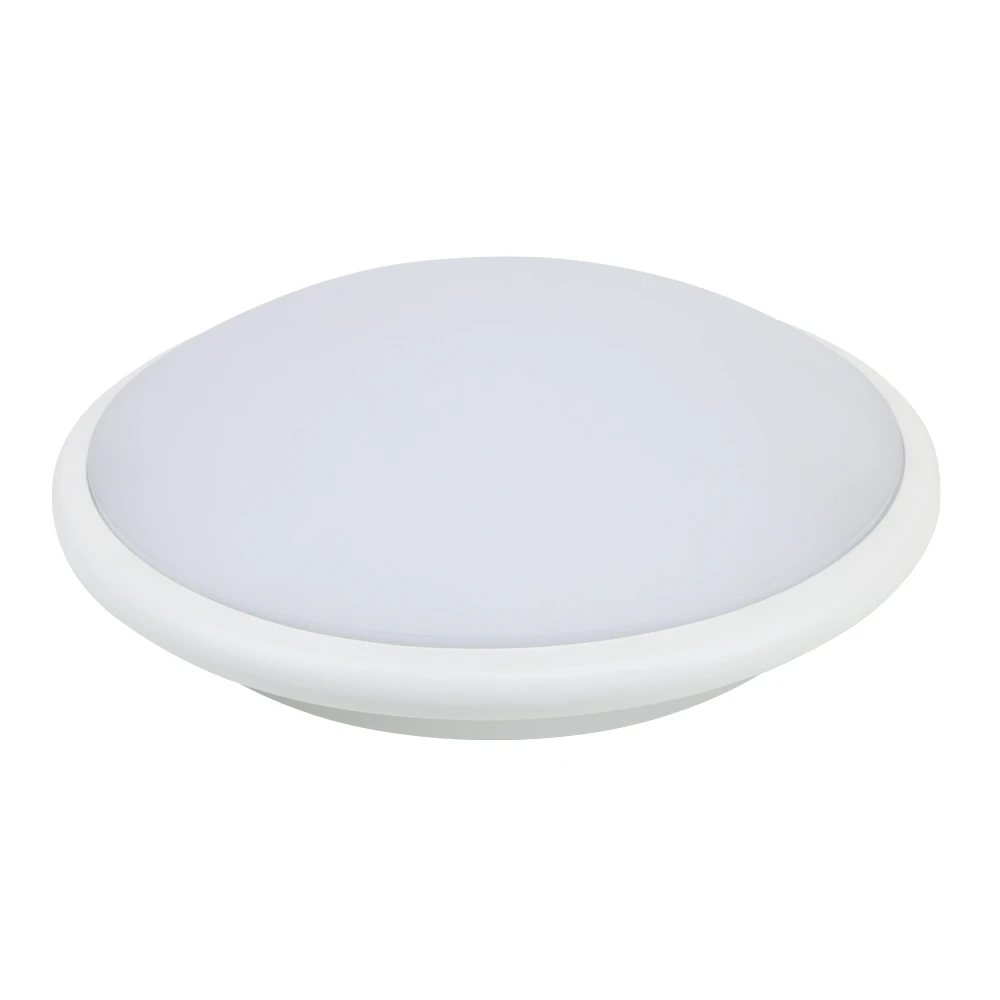

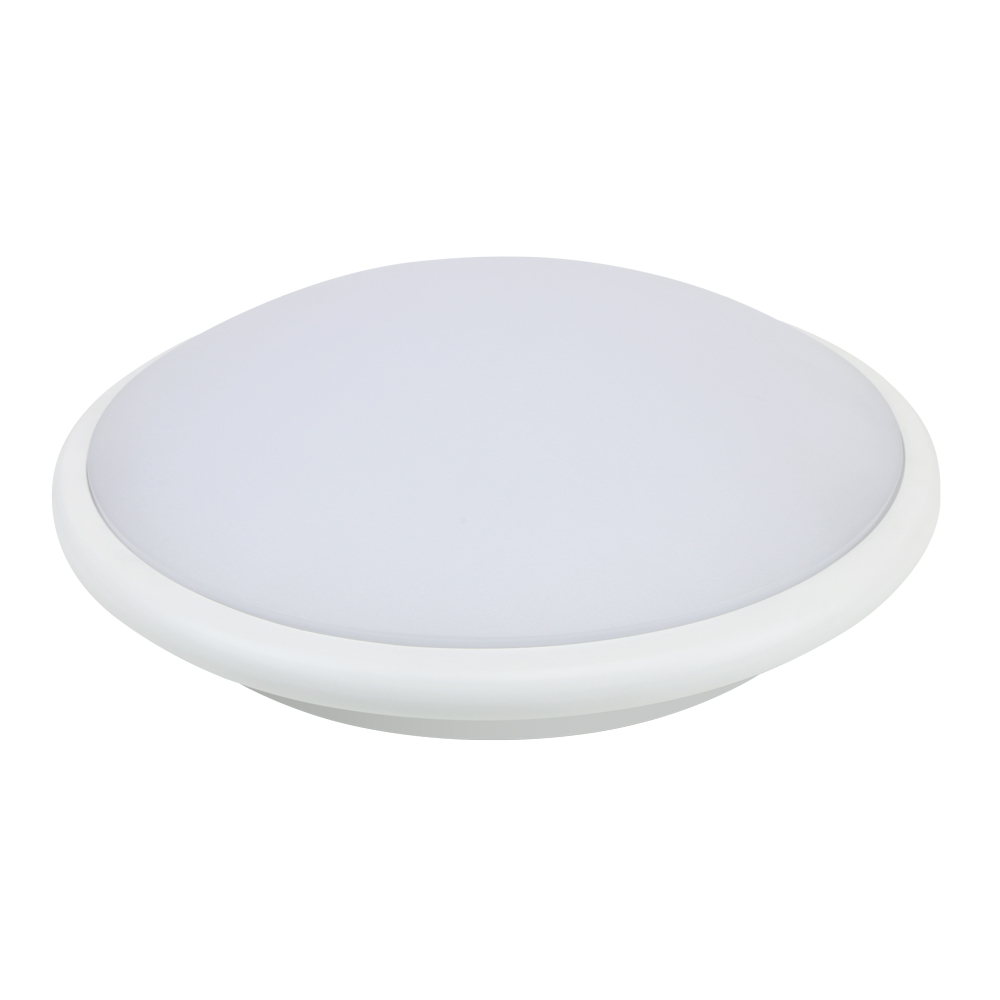

The Mini Wilson LED Circular Bulkhead is the compact evolution of Red Arrow’s popular Wilson X range.

Built with a slim steel body and side conduit entry, it’s designed for stairwells, corridors, and circulation areas where reliability and modern design are essential.

Offering selectable wattage (8W, 12W, 16W, or 19W) and colour temperature options (3000K, 4000K, or 6000K), the Mini Wilson delivers up to 2300 lumens with an impressive efficacy of 120 lm/W. It’s also fully compatible with Red Arrow’s Plug & Play Emergency and Microwave Sensor Kits, giving installers flexibility and speed during setup.

Slim steel profile with side conduit entry
Selectable wattage: 8W / 12W / 16W / 19W
Selectable colour temperature: 3000K / 4000K / 6000K
High light output up to 2300 lm
Efficacy of 120 lm/W
Compatible with Plug & Play Emergency and Microwave Sensor modules
Robust steel housing with polycarbonate diffuser
IP20 & IK06 rated
LED life expectancy of 50,000 hours (L70B50)
Energy Class C, Power Factor 0.9
UKCA & CE approved

Specification	Detail
Product Code	MWL18-CCT
Wattage	8W / 12W / 16W / 19W
Lumen Output	1000 lm / 1440 lm / 1920 lm / 2300 lm
Efficacy	120 lm/W
Energy Class	C
Colour Appearance (CCT)	3000K / 4000K / 6000K
Frequency	50 / 60 Hz
Voltage	240V
Colour Rendition (CRI)	Ra >80
Driver Type	Fixed (Selectable Power)
Power Factor	0.9
LED Life Expectancy	L70B50 – 50,000 hours
IP Rating	IP20
IK Rating	IK06
Working Temperature	-20°C to +40°C
Electrical Class	Class I
Approval	UKCA & CE Certified
Material (Body/Housing)	Steel
Material (Diffuser/Cover)	Polycarbonate
Colour Finish	White RAL9010
Dimensions (mm)	Ø 355 x D 100 mm

Mini Wilson LED Circular Bulkhead Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Detail
Product Code	MWL18-CCT
Wattage	8W / 12W / 16W / 19W
Lumen Output	1000 lm / 1440 lm / 1920 lm / 2300 lm
Efficacy	120 lm/W
Energy Class	C
Colour Appearance (CCT)	3000K / 4000K / 6000K
Frequency	50 / 60 Hz
Voltage	240V
Colour Rendition (CRI)	Ra >80
Driver Type	Fixed (Selectable Power)
Power Factor	0.9
LED Life Expectancy	L70B50 – 50,000 hours
IP Rating	IP20
IK Rating	IK06
Working Temperature	-20°C to +40°C
Electrical Class	Class I
Approval	UKCA & CE Certified
Material (Body/Housing)	Steel
Material (Diffuser/Cover)	Polycarbonate
Colour Finish	White RAL9010
Dimensions (mm)	Ø 355 x D 100 mm
