FireSmart Site Bulkhead with Frosted Diffuser

Name: FireSmart Site Bulkhead with Frosted Diffuser
Brand: Firesmart
Price: 16.86 GBP
Availability: InStock

Code: FDS002/274

£16.86

INC VAT

Code: FDS002/274

In stock
Typically dispatched in 1-3 working days

Have a question about this? Click here

Overview Features Technical Data

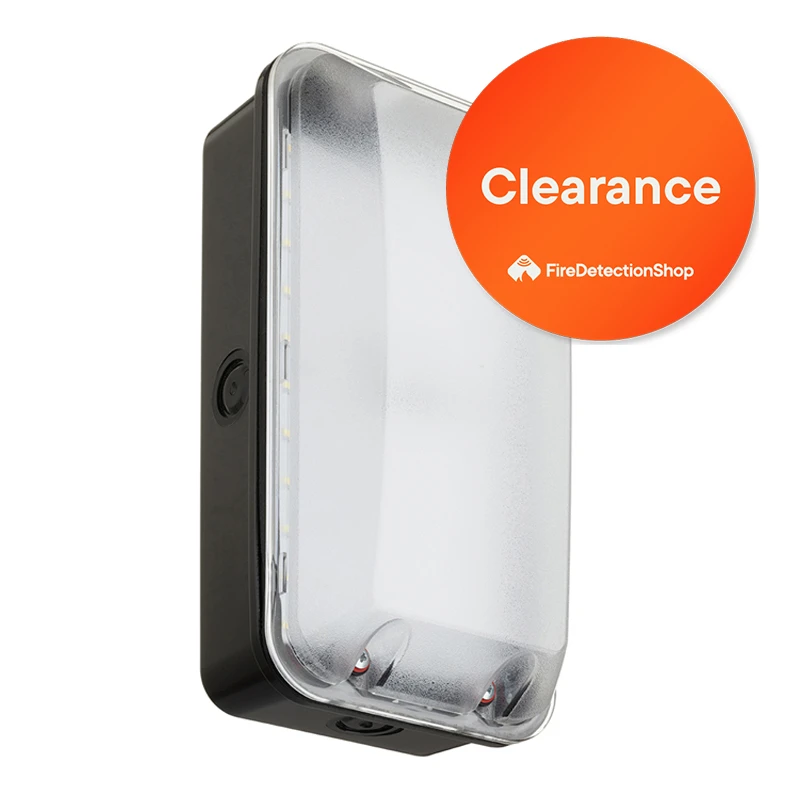

The FireSmart Site Bulkhead with Frosted Diffuser is a durable 8W LED fitting designed for construction sites and utility areas.

It delivers 900 lumens of cool white light (5700K) through a frosted diffuser, reducing glare and improving visibility.
Built with a tough polycarbonate housing rated IP65 and IK08, it withstands dust, moisture, and impact.

The bulkhead operates on 110–240V with a fixed output driver for consistent performance.

IP65 site bulkhead with frosted diffuser for glare-free lighting
8W LED producing 900 lumens at 5700K
Impact-resistant polycarbonate housing rated IK08
High efficacy of 110 lm/W with CRI >80
Long LED life: L70B50 50,000 hours
Fixed output driver with power factor >0.95
Suitable for -10°C to +40°C environments

Category	Specification
Wattage	8 W
Lumen Output	900 lm
Efficacy	110 lm/W
Colour Appearance (CCT)	5700 K
Frequency	50/60 Hz
Colour Rendition (CRI)	Ra > 80
Driver Type	Fixed Output
Colour Finish	Clear
Warranty	3 Years
Voltage	110–240 V
IP Rating	IP65
IK Rating	IK08
LED Life Expectancy	L70B50 50,000 Hours
Power Factor	>0.95
Working Temperature	-10°C to +40°C
Electrical Class	Class II
Approval	UKCA & CE
Material (Body/Housing)	Polycarbonate
Material (Diffuser/Cover)	Polycarbonate

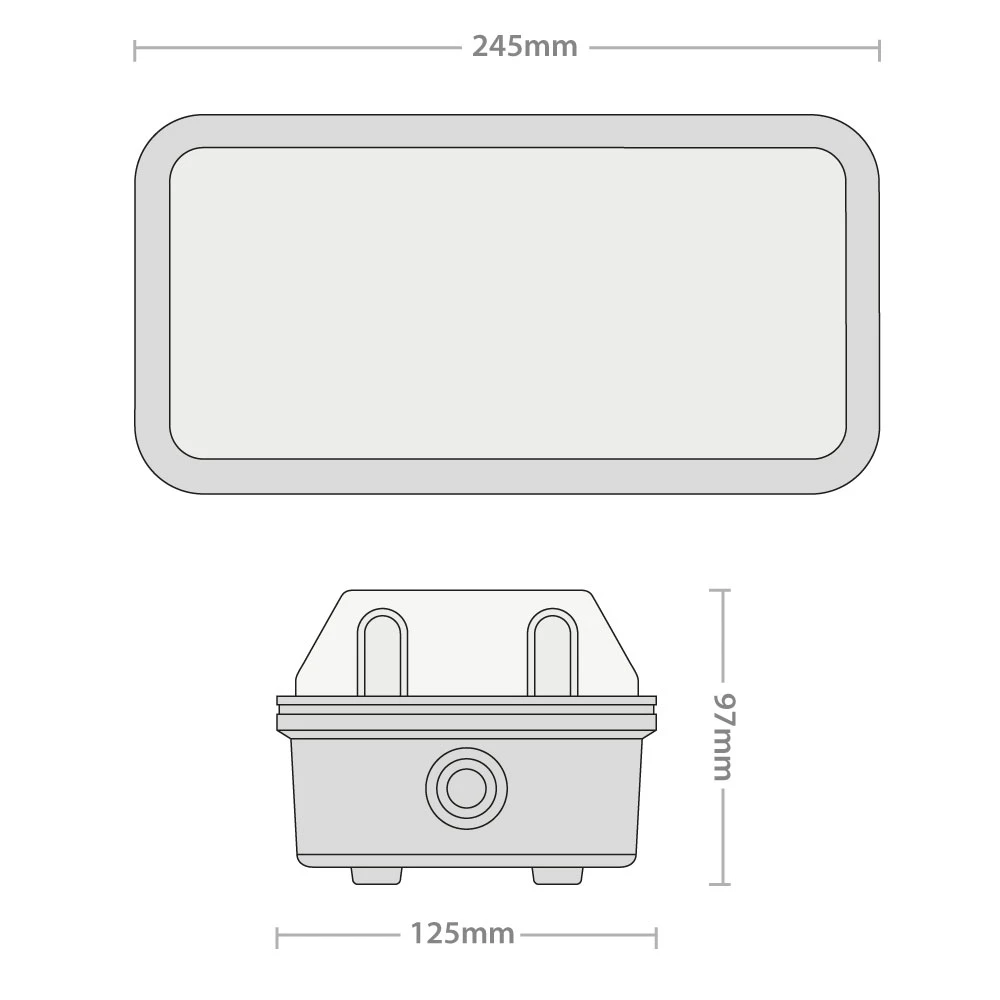

Dimensions (mm)	L: 245 × W: 125 × D: 97 mm
Net Weight	0.385 kg

Overview

Features

Technical Data

Category	Specification
Wattage	8 W
Lumen Output	900 lm
Efficacy	110 lm/W
Colour Appearance (CCT)	5700 K
Frequency	50/60 Hz
Colour Rendition (CRI)	Ra > 80
Driver Type	Fixed Output
Colour Finish	Clear
Warranty	3 Years
Voltage	110–240 V
IP Rating	IP65
IK Rating	IK08
LED Life Expectancy	L70B50 50,000 Hours
Power Factor	>0.95
Working Temperature	-10°C to +40°C
Electrical Class	Class II
Approval	UKCA & CE
Material (Body/Housing)	Polycarbonate
Material (Diffuser/Cover)	Polycarbonate
Dimensions (mm)	L: 245 × W: 125 × D: 97 mm
Net Weight	0.385 kg
