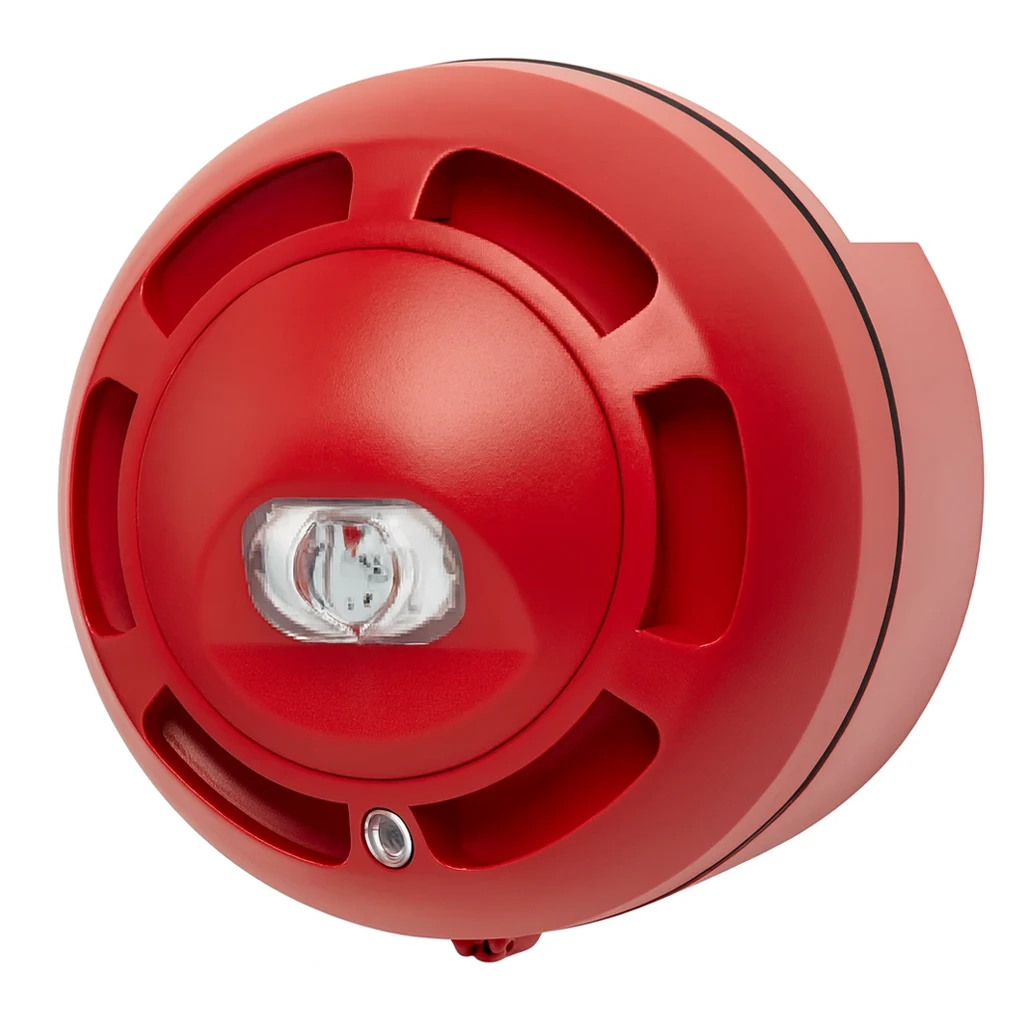

Fike F0296337 | Twinflex Wall VAD/Sounder (Red)

Name: Fike F0296337 | Twinflex Wall VAD/Sounder (Red)
Brand: Fike
Availability: InStock

Code: FDS002/224

Call to place order

INC VAT

Code: FDS002/224

Combined sounder and visual alarm device in one unit
High-intensity red flash for clear visual warning
Zone powered and fully compatible with Fike Twinflex Pro² Control Panels

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Fike F0296337 Twinflex Wall VAD/Sounder (Red) is a zone powered visual alarm device combined with a sounder, designed for use on the Fike Twinflex Pro² two-wire fire alarm system.

It provides both a clear audible tone and a high-intensity red flash, ensuring full compliance with notification requirements in commercial and industrial buildings.

The device is wall-mounted, compact, and highly visible, making it suitable for a wide range of applications.

It is engineered for quick installation on Twinflex loops and offers dependable operation in all approved environments.

Combined sounder and visual alarm device in one unit
High-intensity red flash for clear visual warning
Zone powered and fully compatible with Fike Twinflex Pro² Control Panels
Compact, robust wall-mounted design in red casing
Provides reliable audible and visual fire alarm signals
Easy to install and maintain in commercial or industrial environments

Category	Specification	Detail
Dimensions	Diameter	104 mm
	Height	80 mm
Operating Temp.	Range	-25 °C to +75 °C
Voltage Range	DC Output (Mains Powered Panel)	25.5 to 35.5 V DC
	DC Output (Battery Powered Panel)	21 to 26 V DC
Operating Current (Typical)	Quiescent	144 μA
	End of line ON (extra to Quiescent)	1 mA
	Alarm Sounding – Sounder High	11.0 mA
	Alarm Sounding – Sounder Low	3.0 mA
Power Consumption	Maximum	0.32 W
	Minimum	0.096 W
Loading Units	Max Units per Zone	160 DLU
	Sounder High	11.00 DLU
	Sounder Low	3.00 DLU
Decibel Range	Sounder High	95+ dB(A)
	Sounder Low	65+ dB(A)
Flammability	Rating	UL94-V2
IP Rating	Protection	IP65 + IP33C
Part Code	Reference	F0296337
Compatibility	Panels	V3, Pro & Pro²

Fike F0296337 Datasheet

Click here to download

Overview

Features

Technical Data

Category	Specification	Detail
Dimensions	Diameter	104 mm
	Height	80 mm
Operating Temp.	Range	-25 °C to +75 °C
Voltage Range	DC Output (Mains Powered Panel)	25.5 to 35.5 V DC
	DC Output (Battery Powered Panel)	21 to 26 V DC
Operating Current (Typical)	Quiescent	144 μA
	End of line ON (extra to Quiescent)	1 mA
	Alarm Sounding – Sounder High	11.0 mA
	Alarm Sounding – Sounder Low	3.0 mA
Power Consumption	Maximum	0.32 W
	Minimum	0.096 W
Loading Units	Max Units per Zone	160 DLU
	Sounder High	11.00 DLU
	Sounder Low	3.00 DLU
Decibel Range	Sounder High	95+ dB(A)
	Sounder Low	65+ dB(A)
Flammability	Rating	UL94-V2
IP Rating	Protection	IP65 + IP33C
Part Code	Reference	F0296337
Compatibility	Panels	V3, Pro & Pro²
