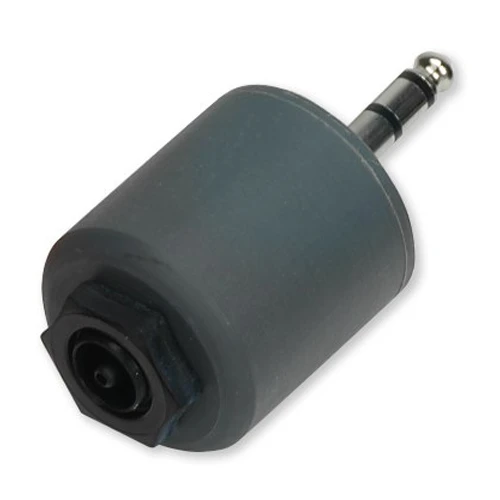

C-TEC NC805AS Remote Air Switch (used with NC805P)

The C-TEC NC805AS Remote Air Switch is designed for use with C-TEC's NC805P Pneumatic Pad.

• Compatibility: C-TEC's Quantec and 800 Series Call Systems. Must be used in conjunction with NC805P Pneumatic Pad

• Quiescent current: 0mA

• Alarm current: Determined by the type of control equipment and number / type of field devices connected to the system

• Indicators: Reassurance LED on host call point will illuminate steady when the NC805AS Air Switch is activated and/or removed

• Controls: Applying sufficient air pressure (0.9 p.s.i or 6220 Pa) to the NC805P Pneumatic Pressure Pad causes the host NC805AS Air Switch to activate and generate a Standard call if connected to a compatible Quantec or 800 Series call point

• Connections: 6.35mm jack plug. Spigot provided for connection of Pneumatic Pad tubing.

• Onboard sounder: No

• Onboard infrared receiver: No

• Product Dimensions: Diameter: 35mm x Length: 72mm

• IP rating: IP20

• Weight: 124g

• Operating temperature: -5C/+40C

• Designed to be operated at voltages of less than 30Vd.c. and must only be operated by air. Liquids must not be used. The electrical switch characteristic will switch a 0.5A resistive load @ 30Vd.c. Mains voltages must never be used
