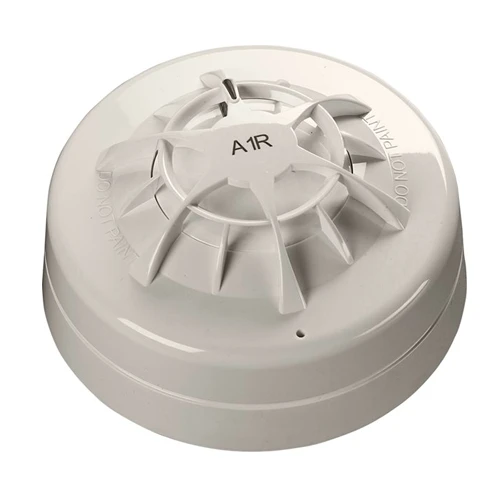

Apollo ORB-HT-41013-MAR Orbis Marine A1R Heat Detector with Flashing LED

Name: Apollo ORB-HT-41013-MAR Orbis Marine A1R Heat Detector with Flashing LED
Brand: Apollo
Price: 18.6 GBP
Availability: InStock

Code: FDS201/692

£18.60

INC VAT

Code: FDS201/692

ORB-HT-41013-MAR
Can be used for applications where smoke detectors are unsuitable
Ideal for environments that are dirty or smoky under normal conditions

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Apollo ORB-HT-41013-MAR Orbis Marine A1R Heat Detector with flashing LED is designed for reliable fire detection in marine and high-humidity environments.

It uses a single thermistor to continuously monitor the surrounding air temperature, making it suitable for applications where smoke detectors may be unreliable due to dust, fumes or airborne contaminants.

The A1R heat classification provides a fast-response alarm to rapidly rising temperatures, offering effective detection of fast-developing fires.

The integrated flashing LED provides clear visual indication during installation, testing and routine maintenance.

Transient rejection technology helps reduce false alarms caused by short-term temperature fluctuations, improving system reliability in challenging operating conditions.

ORB-HT-41013-MAR
Can be used for applications where smoke detectors are unsuitable
Ideal for environments that are dirty or smoky under normal conditions
Flashing LED option

Specification	Details
Warranty	10 year
Suitable environments	Dusty environments
	Marine
Heat classification	A1R
Colour	White
Weight	70 g
Housing material	Polycarbonate
Product length	36 mm
Product diameter	97 mm
Product length	1.42 in
Product diameter	3.82 in
Approvals	BV, LR, DNV.GL, CCS, ABS, MED
Maximum power-up time	< 20 seconds
Quiescent current	95 μA
Quiescent current tested at	24 V DC
Polarity	L1 & L2 are polarity sensitive
Minimum detector active voltage	6 V
Holding voltage	5 to 33 V
Holding voltage (max)	33 V
Holding voltage (min)	5 V
Minimum voltage to light alarm LED	5 V
Alarm reset voltage	< 1 V
Alarm reset time	1 s
Alarm load	600 Ω
Sampling frequency	Once every 4 seconds
Humidity (max)	98% RH
Humidity (min)	0% RH
Humidity note	No condensation or icing
Humidity	0% to 98% (no condensation or icing)
IP rating	IP44

Apollo ORB-HT-41013-MAR Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Details
Warranty	10 year
Suitable environments	Dusty environments
	Marine
Heat classification	A1R
Colour	White
Weight	70 g
Housing material	Polycarbonate
Product length	36 mm
Product diameter	97 mm
Product length	1.42 in
Product diameter	3.82 in
Approvals	BV, LR, DNV.GL, CCS, ABS, MED
Maximum power-up time	< 20 seconds
Quiescent current	95 μA
Quiescent current tested at	24 V DC
Polarity	L1 & L2 are polarity sensitive
Minimum detector active voltage	6 V
Holding voltage	5 to 33 V
Holding voltage (max)	33 V
Holding voltage (min)	5 V
Minimum voltage to light alarm LED	5 V
Alarm reset voltage	< 1 V
Alarm reset time	1 s
Alarm load	600 Ω
Sampling frequency	Once every 4 seconds
Humidity (max)	98% RH
Humidity (min)	0% RH
Humidity note	No condensation or icing
Humidity	0% to 98% (no condensation or icing)
IP rating	IP44
