Advanced ExGo Emergency Abort Switch

Name: Advanced ExGo Emergency Abort Switch
Brand: Advanced-electronics
SKU: FDS002/705
Availability: InStock

Code:

Call to place order

INC VAT

Code:

Material

Designed for Advanced ExGo gas extinguishing systems
Manual abort function for extinguishing release control
Complies with BS7273-1 requirements

Have a question about this? Click here

Overview Features Technical Data Downloads & Resources

The Advanced ExGo Abort Switch is designed to complement ExGo extinguishing and suppression control panels, providing manual abort functionality within gas extinguishing systems.

Compliant with BS7273-1, the module allows authorised personnel to interrupt or abort the extinguishing release sequence where required, supporting controlled system operation in protected areas.

The switch is simple to wire and multiple units can be daisy-chained together on an input circuit for flexible installation.

Standard versions can be surface mounted or semi-flush mounted onto standard 3½” electrical boxes, while the IP65 variant is supplied in a surface mount enclosure for environments requiring additional ingress protection.

Each unit is supplied with an end-of-line resistor and is compatible with ExGo gas extinguishing panels and remote status indicator panel input circuits.

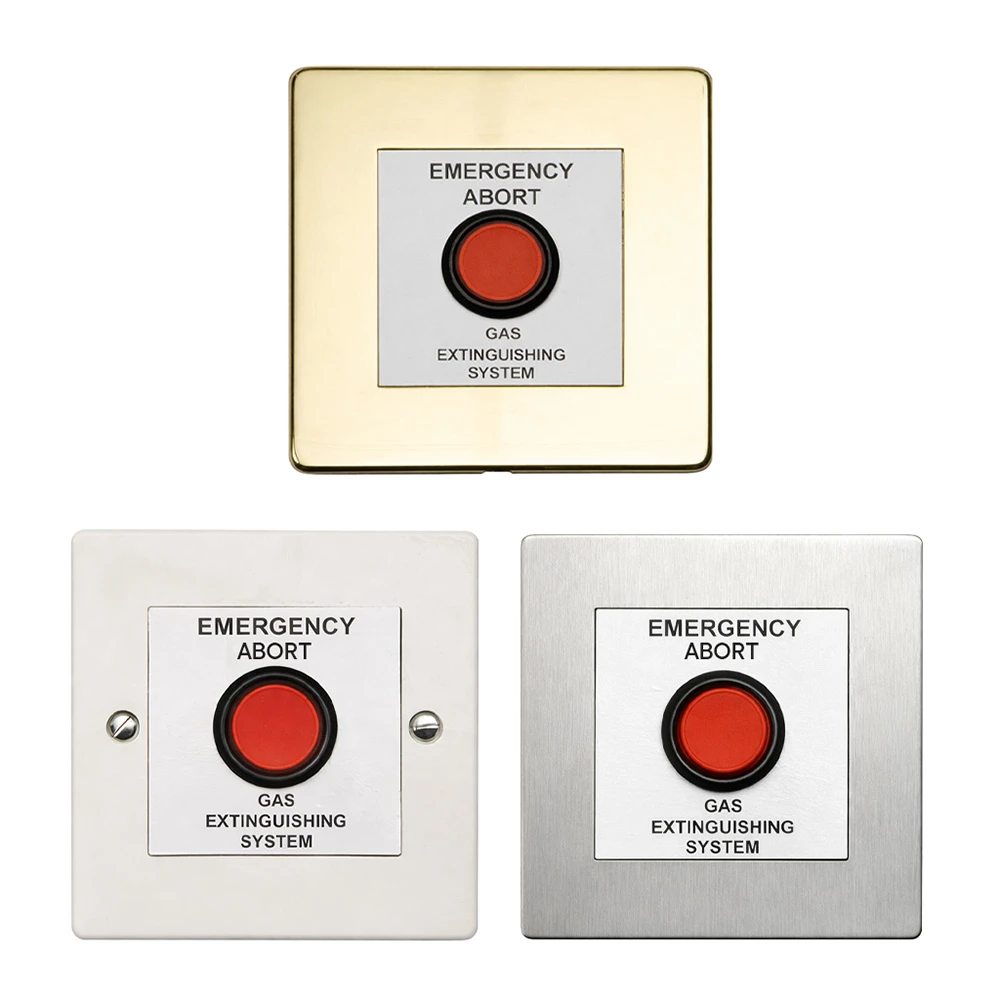

This product is available in the following enclosure options:

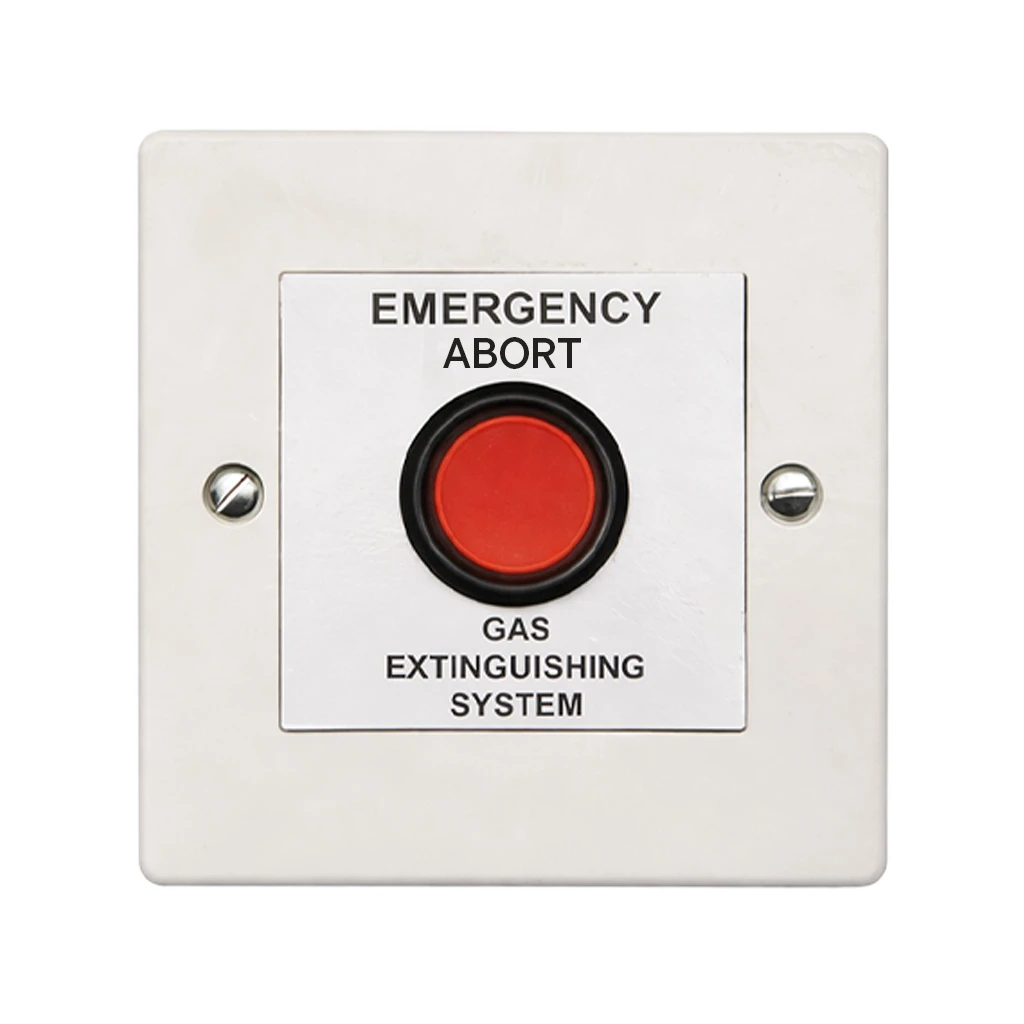

Plastic enclosure

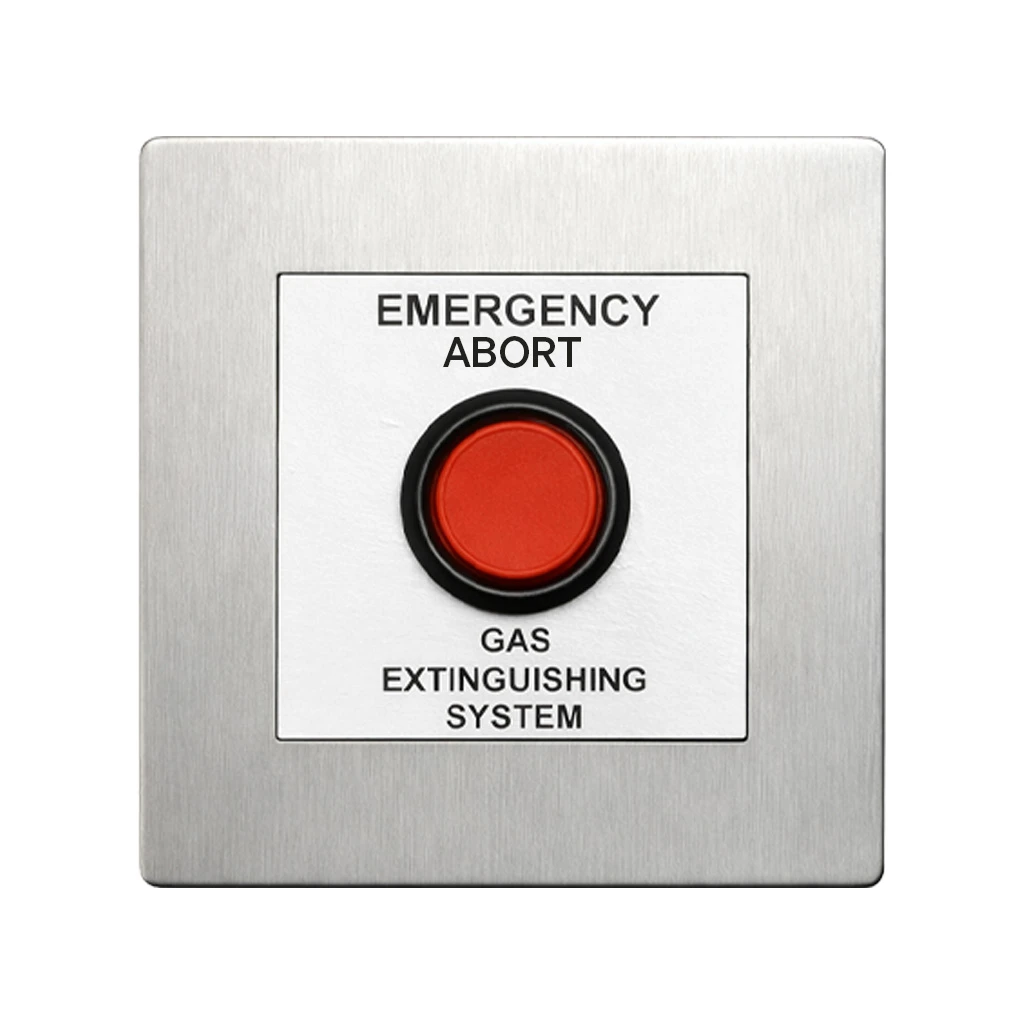

Stainless steel trim cover plate

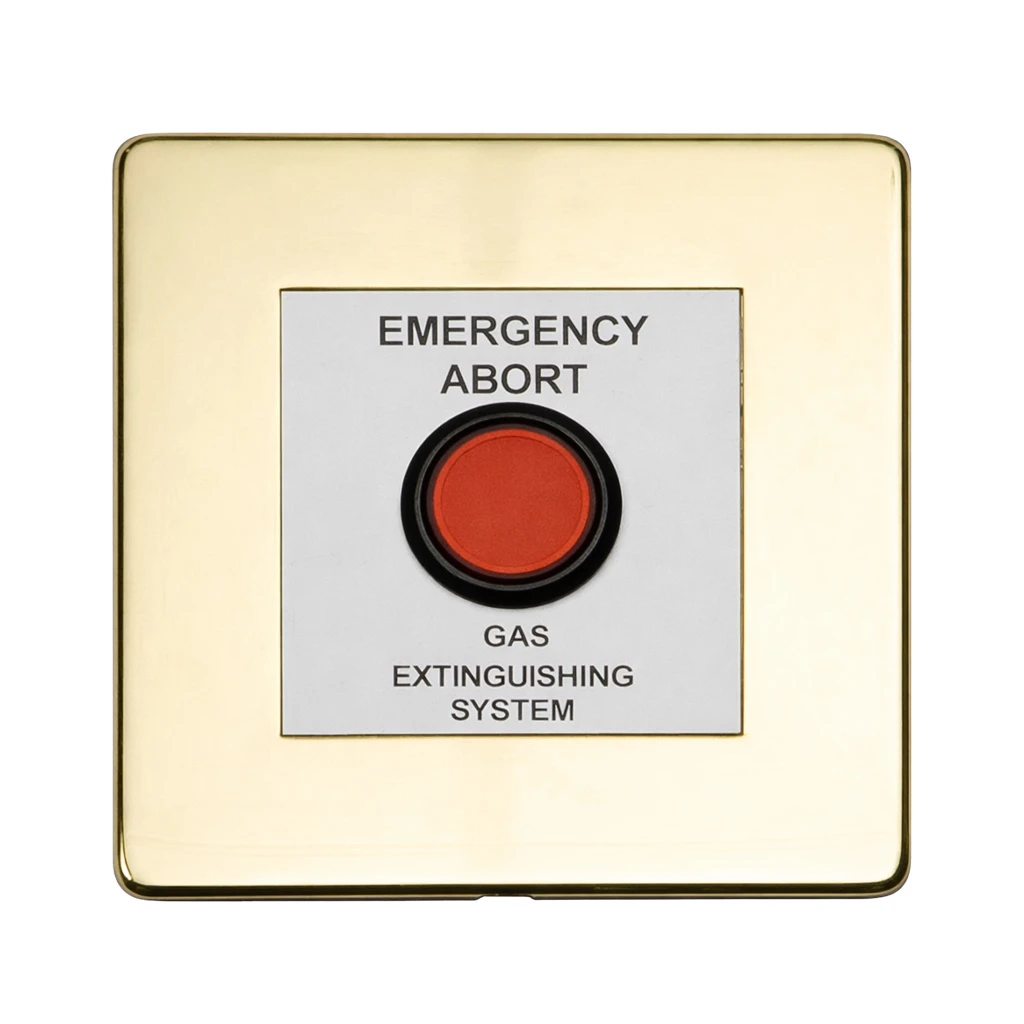

Brass trim cover plate
IP65 rated plastic enclosure

Designed for Advanced ExGo gas extinguishing systems
Manual abort function for extinguishing release control
Complies with BS7273-1 requirements
Compatible with ExGo control panel and remote indicator inputs
Supplied with end-of-line resistor
Suitable for daisy-chain wiring on input circuits
Surface or semi-flush mounting, standard units
IP65 surface mount option available
Available in plastic, stainless steel or brass finish

Specification	Plastic Enclosure	Stainless Steel / Brass Trim	IP65 Plastic Enclosure
Application	ExGo extinguishing system input circuit	ExGo extinguishing system input circuit	ExGo extinguishing system input circuit
Compliance	BS7273-1	BS7273-1	BS7273-1
Environmental Class	Indoor	Indoor	Indoor
Operating Temperature	0°C to 40°C	0°C to 40°C	0°C to 40°C
Maximum Humidity	95% max	95% max	95% max
End-of-Line Resistance	6800 Ohms	6800 Ohms	6800 Ohms
Active Resistance (SW#1)	470 Ohms	470 Ohms	470 Ohms
Maximum Operating Voltage	30VDC	30VDC	30VDC
Overall Dimensions	87mm × 87mm × 41mm	87mm × 87mm × 47mm	72mm × 72mm × 62mm (incl. actuator)
Back Box Dimensions	87mm × 87mm × 29mm	87mm × 87mm × 44mm	Surface mount enclosure
Minimum Depth Behind Cover	35mm	35mm	N/A

Advanced ExGo Emergency Abort Switch Datasheet

Click here to download

Overview

Features

Technical Data

Specification	Plastic Enclosure	Stainless Steel / Brass Trim	IP65 Plastic Enclosure
Application	ExGo extinguishing system input circuit	ExGo extinguishing system input circuit	ExGo extinguishing system input circuit
Compliance	BS7273-1	BS7273-1	BS7273-1
Environmental Class	Indoor	Indoor	Indoor
Operating Temperature	0°C to 40°C	0°C to 40°C	0°C to 40°C
Maximum Humidity	95% max	95% max	95% max
End-of-Line Resistance	6800 Ohms	6800 Ohms	6800 Ohms
Active Resistance (SW#1)	470 Ohms	470 Ohms	470 Ohms
Maximum Operating Voltage	30VDC	30VDC	30VDC
Overall Dimensions	87mm × 87mm × 41mm	87mm × 87mm × 47mm	72mm × 72mm × 62mm (incl. actuator)
Back Box Dimensions	87mm × 87mm × 29mm	87mm × 87mm × 44mm	Surface mount enclosure
Minimum Depth Behind Cover	35mm	35mm	N/A
