Common Fire Alarm Zone Plan Mistakes

12/03/2026 • by Alice P

Fire alarm zone plans are there to give a quick, clear overview of how a building is divided into alarm zones. When an alarm activates, the zone plan helps building occupants, engineers and attending fire crews quickly identify which part of the building is affected.

In reality, a lot of zone plans are harder to read than they should be. Small mistakes in the design or layout can make them confusing during an emergency, which defeats the purpose of having one in the first place.

Our engineers at Fire Detection Shop regularly produce fire alarm zone plans for customers and often see the same issues appear again and again.

Below are some of the most common mistakes and how they can be avoided.

Overly Complex Drawings

One of the most common issues is starting with architectural drawings that contain far too much detail.

Construction drawings often include structural notes, electrical layouts and other technical information that simply is not needed for a zone plan. When all of this is included, the final plan can look cluttered and harder to understand quickly.

A good zone plan keeps things simple and focuses only on the information needed to identify zones and understand the building's layout.

Unclear Zone Boundaries

Another common problem is zone boundaries that are not clearly shown. If it is not obvious where one zone ends and another begins, the plan becomes far less useful during an alarm condition.

The whole purpose of a zone plan is to help someone quickly identify which area of the building is affected. Zones should be clearly marked and labelled so there is no confusion.

Text That Is Too Small

Zone plans need to be readable at a glance. If the text is too small or crammed together, it becomes difficult to interpret quickly.

Room labels, zone names and key building features should all be easy to read without needing to study the plan closely. Larger, clearer text makes the plan far more usable in a real situation.

Missing Key Building Features

A zone plan should also include the main features that help someone understand where they are in the building.

Common things that are sometimes missing include:

• main entrances
• staircases
• lifts
• reception areas
• corridors and main circulation routes

Without these reference points it can be harder for someone unfamiliar with the building to interpret the plan properly.

Incorrect or Outdated Layouts

Buildings change over time. Walls get moved, rooms are repurposed and extensions are added.

If a zone plan is created from an outdated drawing, it may not reflect the current layout of the building. That can cause confusion when someone tries to locate the source of an alarm.

Zone plans should always be updated if the building layout changes.

Poor Location of the Zone Plan

Even a well designed zone plan will not be very helpful if it is installed in the wrong place.

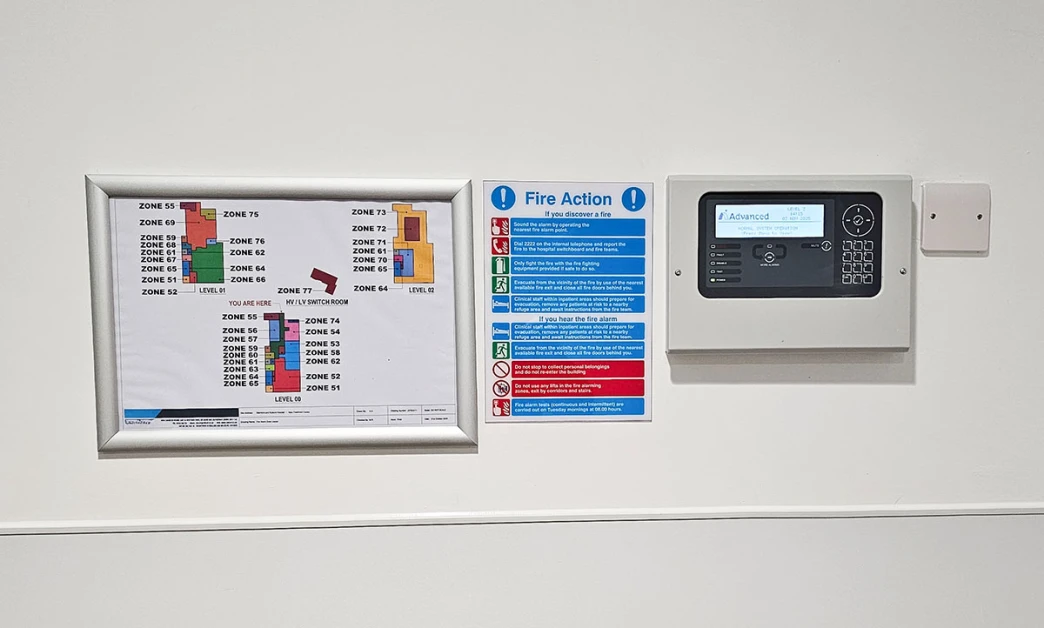

Zone plans are normally positioned next to the fire alarm control panel so that anyone responding to an alarm can quickly check the layout. Guidance on zone plans is included in BS 5839-1 Fire Detection and Fire Alarm Systems Standard, which highlights the importance of providing clear information to system users.

Low Quality or Blurred Plans

Another issue we occasionally see is zone plans produced from poor quality images or scans.

Low resolution drawings can result in blurred text, unclear walls or distorted layouts. If the original drawing is not clear, the finished zone plan will not be either.

Starting with a clean, high resolution drawing makes a big difference to the final result.

No Clear Orientation

Finally, a zone plan should make it easy for someone to orient themselves within the building.

If there are no obvious reference points, it may not be clear how the plan relates to the building around them. Features such as entrances, corridors and staircases help people quickly understand what they are looking at.

Producing a Clear Zone Plan

A good zone plan should be simple, easy to read and quick to understand during an emergency. Removing unnecessary detail and clearly showing the zone layout makes the plan much more effective.

At Fire Detection Shop we produce professional fire alarm zone plans from building drawings, ensuring the final plan is clear, compliant and ready to install next to your fire alarm control panel.

Providing clear drawings and accurate information helps us produce your zone plan quickly and avoids unnecessary revisions.

Need a Fire Alarm Zone Plan?

We offer a fire alarm zone plan creation service. Simply send us your drawings and we can create your zone plan. We offer various options, including a print-ready PDF zone plan as well as a printed and framed option. For more information, contact our sales team.
