C-TEC NC805P Hand/Foot Pneumatic Pad with Remote Air Switch (complete)

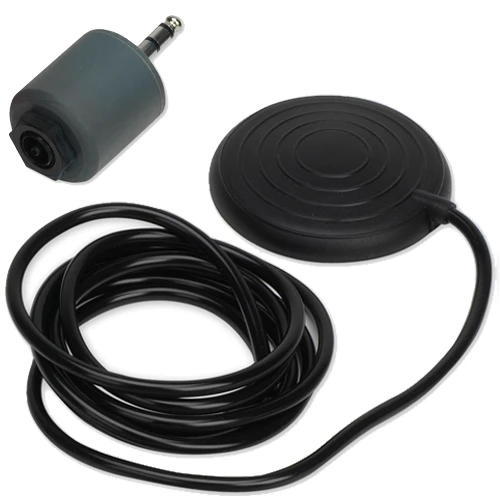

This is a combination of the NC805P Hand/Foot Pneumatic Pad and the NC805AS Remote Air Switch. When used together, applying pressure to the pneumatic pad operates the air switch, which in turn triggers a Standard call when connected to a compatible call point's remote socket.

• Compatibility: C-TEC's Quantec and 800 Series Call Systems

• Quiescent current: 0mA

• Alarm current: Determined by the type of control equipment and number/type of field devices connected to the system

• Indicators: Reassurance LED on host call point will illuminate steadily when the NC805AS Air Switch is activated and/or removed

• Controls: Applying sufficient air pressure (0.9 p.s.i or 6220 Pa) to the NC805P Pneumatic Pressure Pad causes the host NC805AS Air Switch to activate and generate a Standard call if connected to a compatible Quantec or 800 Series call point

• Connections: 6.35mm jack plug. Spigot provided for connection of Pneumatic Pad tubing

• Onboard sounder: No

• Onboard infrared receiver: No

• Product Dimensions:

  • Air Switch - Diameter: 35mm x Length: 72mm

  • Pneumatic Pad - Diameter: 95mm x Depth: 20 mm. PVC tubing measures 2m

• IP rating: IP20

• Weight: 242g

• Operating temperature: -5C/+40C

• Designed to be operated at voltages of less than 30Vd.c. and must only be operated by air. Liquids must not be used. The electrical switch characteristic will switch a 0.5A resistive load @ 30Vd.c. Mains voltages must never be used
